Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 30, 2016, 09:18 AM

  • 15 0052_15 0051A_20160330_023914.mp4

Date
03/30/2016
W/O
563386
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00622
PipeID
P11945
Time
2:18 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3300
Sewer Name
15 PUENTE TRUNK
City
CITY OF INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
35
Purpose
V
Project
WO_563386_TV15025_APRIL2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
15 0051A
Downstream MH
15 0052
Dir. of Survey
Upstream
Length Surveyed
278.2 ft.
Total Length
278.2 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
2
O&M Quick
2J00
O&M Rating
110
Overall Index
2
Overall Quick
—
Overall Rating
114
Pipe schematic from manhole 15 0051A to 15 0052
MH: 15 0051AMH: 15 0052upstream0 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. MSA - Survey Abandoned - REVERSAL COMPLETE.18.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"45.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"69.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"96.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"120.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"147.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"165.6 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"171 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"196.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"221.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"247.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"274.3 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES276.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start278.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK278.2 ft. AMH - Downstream Manhole, Survey Begins - 15 0051A278.2 ft. MWL - Water Level, 20 %of cross sectional area278.2 ft. MWM - Water Mark, 40 %of cross sectional area

Observation photos (2)

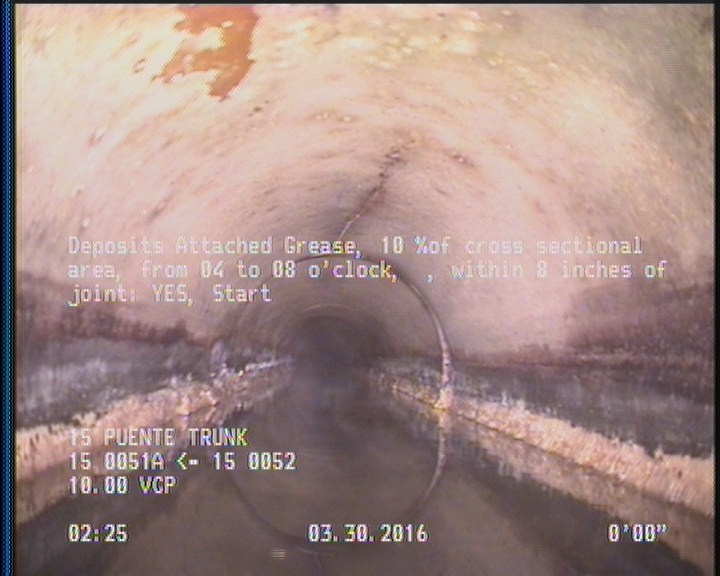

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

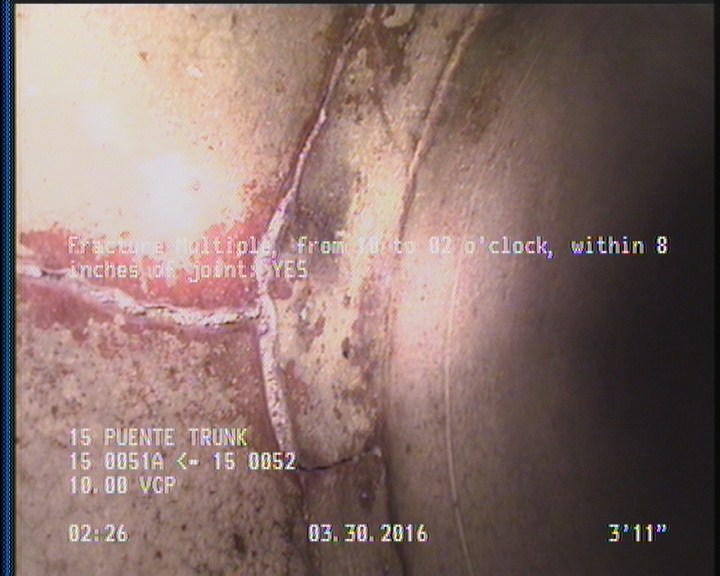

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    3.9 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P11945Work order 563386

Observations (19)

DistanceCodeObservation
3.9FM—
259.4TFC—
278.2DAGS—
232.4TFC—
81.5TFC—
2DAGS—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0AMH15 0051A
56.3TFC—
0MWL—
130.7TFC—
112.6TBA—
0MWM—
107.2TFC—
30.7TFC—
181.4TFC—
208.3TFC—
157.8TFC—
278.2MSAREVERSAL COMPLETE.

Properties (6)

additional_info
SC305426
custom_field_two
4
customer
LACSD
datetime
2016-03-30T02:18:59-07:00
documentation
PRO PIPE
is_lateral_inspection
false
