Wastewater/Activity/PacpInspection/1.0Mar 30, 2016, 09:45 AM
15 0051A_15 0051_20160330_025047.mp4
- Date
- 03/30/2016
- W/O
- 563386
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00622
- PipeID
- P11944
- Time
- 2:45 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3300
- Sewer Name
- 15 PUENTE TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_563386_TV15025_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 15 0051A
- Downstream MH
- 15 0051
- Dir. of Survey
- Downstream
- Length Surveyed
- 18.6 ft.
- Total Length
- 18.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2500
- O&M Rating
- 10
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (2)

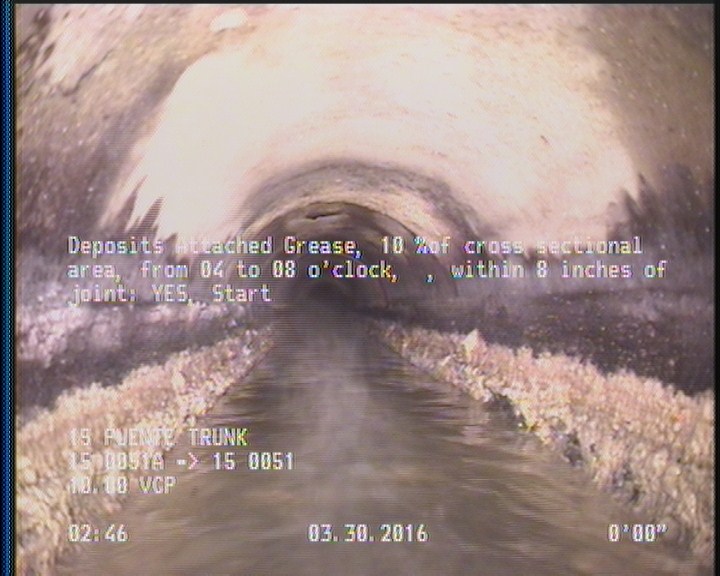

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

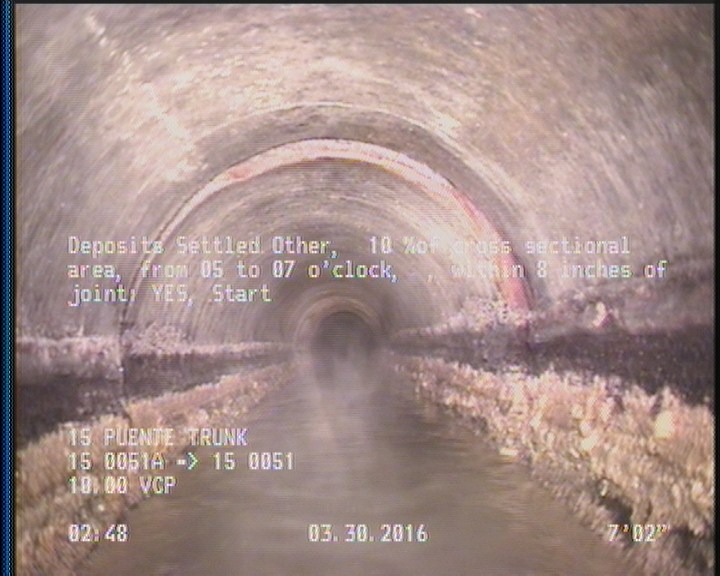

7.2 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 18.6 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 18.6 | AMH | 15 0051 |
| 7.2 | DSZ | — |
| 18.6 | DAGS | — |
| 18.6 | DSZ | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 15 0051A |
| 18.6 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (6)
- additional_info
- SC305426
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-30T02:45:06-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
