Wastewater/Activity/PacpInspection/1.0Mar 30, 2016, 06:55 AM
15 0055_15 0054_20160330_000325.mp4
- Date
- 03/29/2016
- W/O
- 563386
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00622
- PipeID
- P11948
- Time
- 11:55 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3300
- Sewer Name
- 15 PUENTE TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- WO_563386_TV15025_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 15 0055
- Downstream MH
- 15 0054
- Dir. of Survey
- Downstream
- Length Surveyed
- 95 ft.
- Total Length
- 95 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 51
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 38
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 89
Observation photos (4)

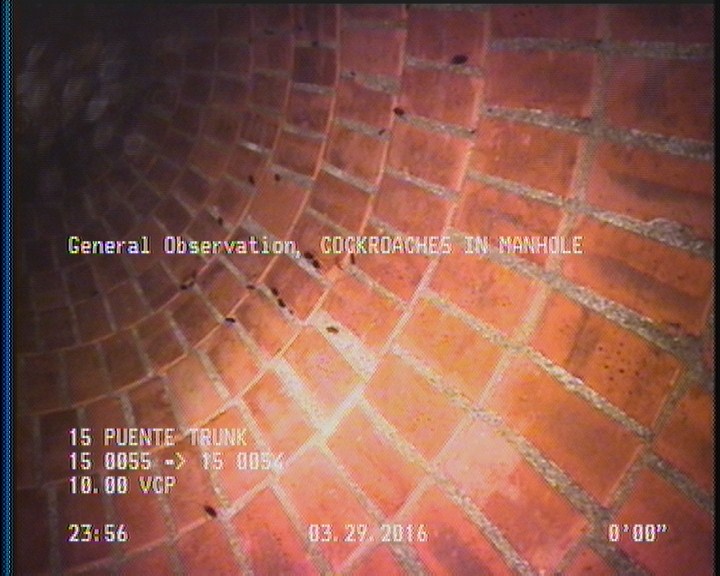

0 ft. - General Observation - COCKROACHES IN MANHOLE

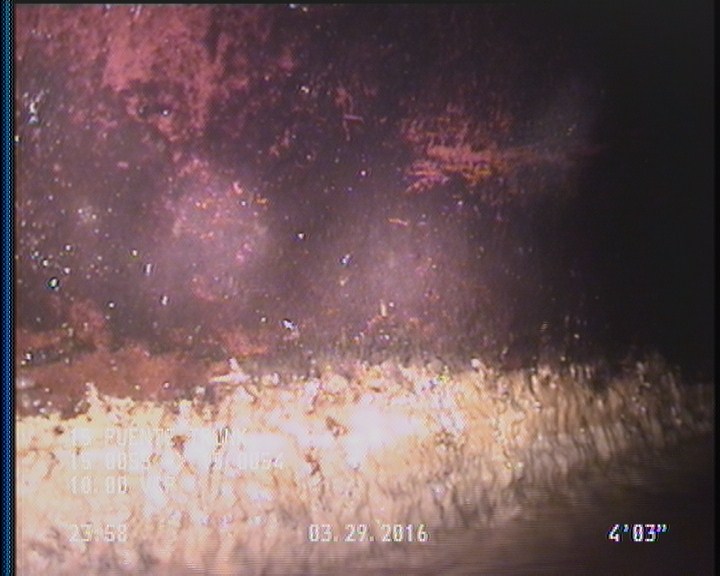

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

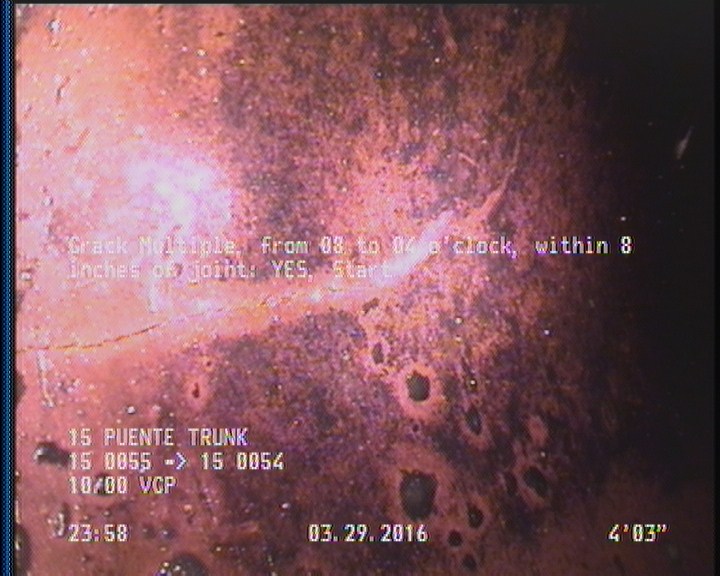

4.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

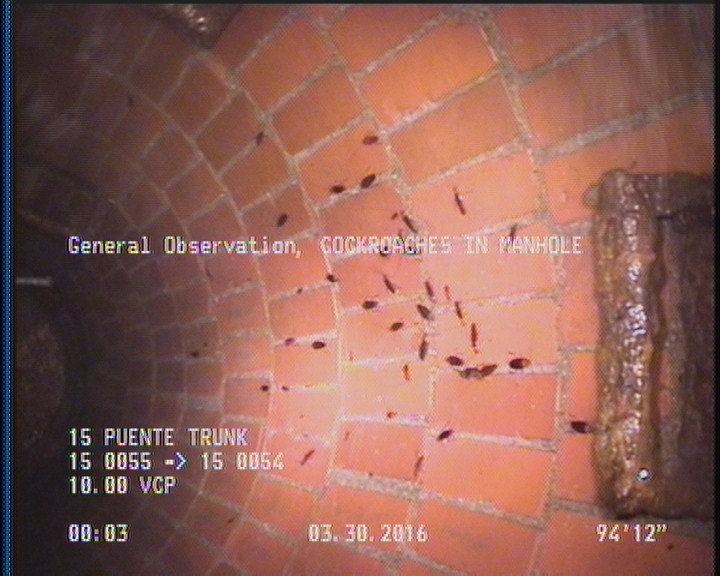

95 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 95 | MGO | COCKROACHES IN MANHOLE |
| 7.7 | TFC | — |
| 4.2 | CM | — |
| 58.5 | TFA | — |
| 35.5 | TFC | — |
| 90.8 | CM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 95 | AMH | 15 0054 |
| 0 | MWM | — |
| 0 | AMH | 15 0055 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 95 | DAGS | — |
| 2 | DAGS | — |
| 82.3 | TFA | — |
Properties (6)
- additional_info
- SC305426
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-29T23:55:27-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
