Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 30, 2016, 11:17 AM

  • 15 0059_15 0058_20160330_044227.mp4

Date
03/30/2016
W/O
563386
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00622
PipeID
P11952
Time
4:17 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3300
Sewer Name
15 PUENTE TRUNK
City
CITY OF INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
WO_563386_TV15025_APRIL2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
15 0059
Downstream MH
15 0058
Dir. of Survey
Downstream
Length Surveyed
398 ft.
Total Length
398 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 15 0059 to 15 0058
MH: 15 0059MH: 15 0058downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 00590 ft. MWM - Water Mark, 5 %of cross sectional area7.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"19.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"49.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"77.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"93.1 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES103.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"127.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"154 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"167 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES177.7 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"204.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"228.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"255.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"278.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"302.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"329 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"352.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"379.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"398 ft. AMH - Downstream Manhole, Survey Ends - 15 0058398 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (2)

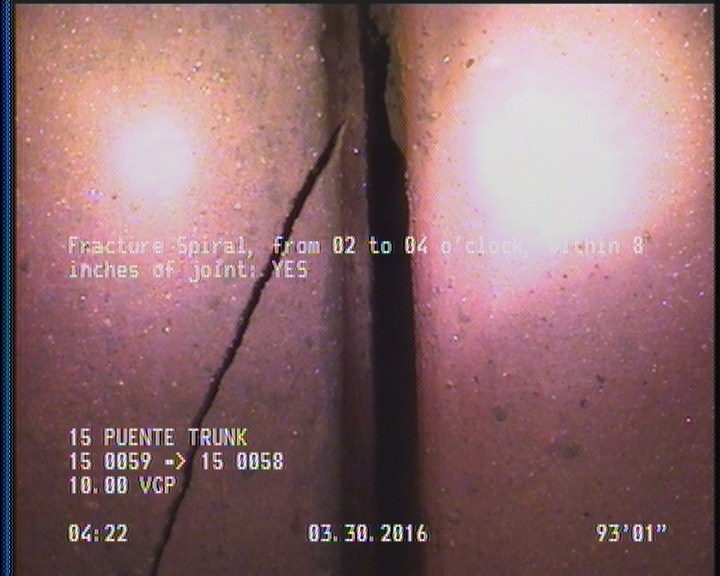

  • Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

    93.1 ft. - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

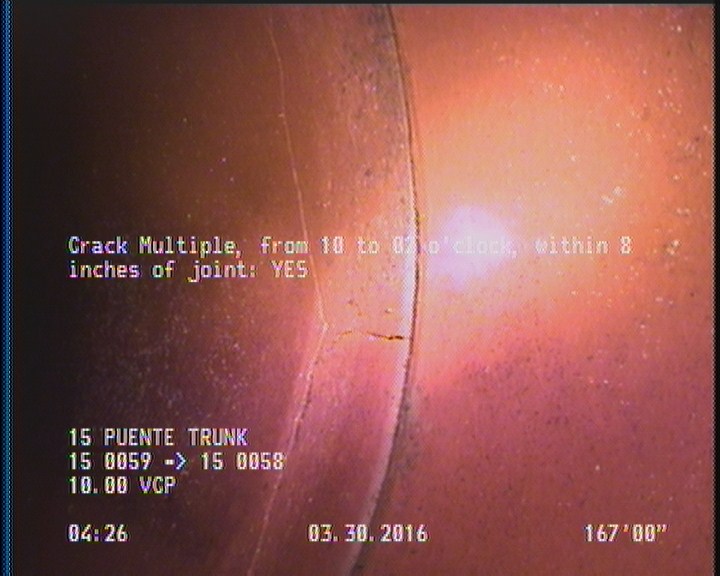

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    167 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P11952Work order 563386

Observations (23)

DistanceCodeObservation
352.8TFC—
77.3TFC—
302.5TFC—
255.1TFC—
379.5TFC—
177.7TFC—
398AMH15 0058
329TFC—
204.3TFC—
103.3TFC—
398MGOCOCKROACHES IN MANHOLE
19.7TFC—
167CM—
127.8TFC—
0MWL—
154TFA—
278.6TFC—
93.1FS—
0AMH15 0059
49.6TFC—
7.9TFC—
228.2TFC—
0MWM—

Properties (6)

additional_info
SC305426
custom_field_two
3
customer
LACSD
datetime
2016-03-30T04:17:08-07:00
documentation
PRO PIPE
is_lateral_inspection
false
