Wastewater/Activity/PacpInspection/1.0Mar 30, 2016, 10:16 AM
15 0060_15 0059A_20160330_034737.mp4
- Date
- 03/30/2016
- W/O
- 563386
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00622
- PipeID
- P11954
- Time
- 3:16 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3300
- Sewer Name
- 15 PUENTE TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_563386_TV15025_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 15 0060
- Downstream MH
- 15 0059A
- Dir. of Survey
- Downstream
- Length Surveyed
- 11.3 ft.
- Total Length
- 11.3 ft.
- Structural Index
- 4
- Structural Quick
- 4300
- Structural Rating
- 12
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (3)

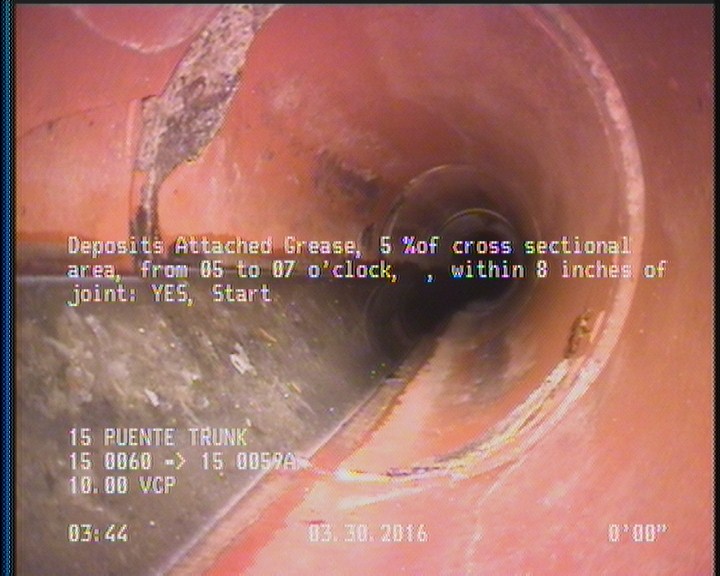

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

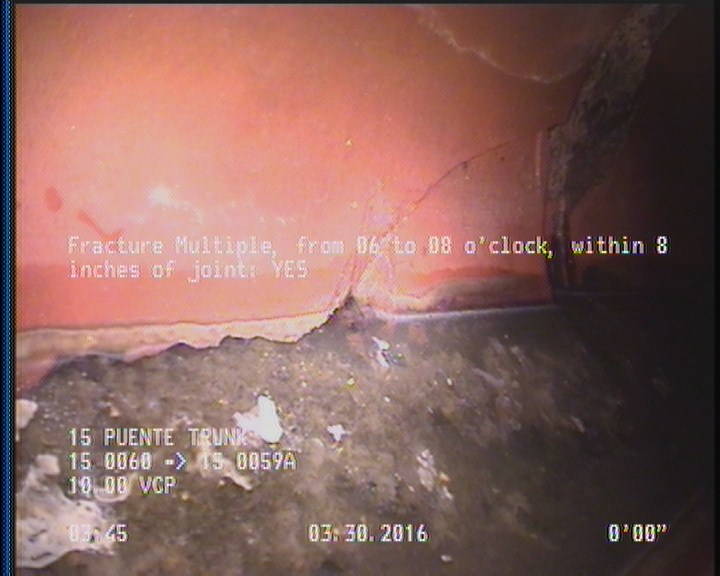

4 ft. - Fracture Multiple, from 06 to 08 o'clock, within 8 inches of joint: YES

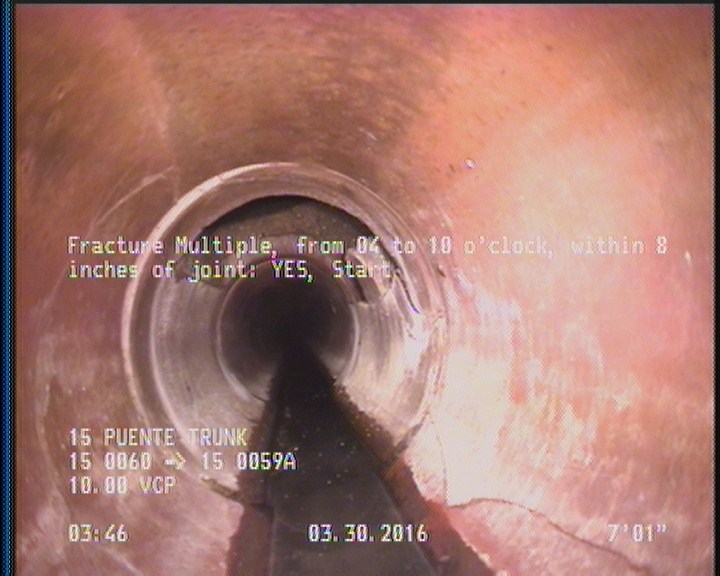

7.1 ft. - Fracture Multiple, from 04 to 10 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 10.5 | DAGS | — |
| 0 | AMH | 15 0060 |
| 0 | MWL | — |
| 4 | FM | — |
| 0 | MWM | — |
| 7.1 | FM | — |
| 2 | DAGS | — |
| 10.5 | FM | — |
| 11.3 | AMH | 15 0059A |
Properties (6)
- additional_info
- SC305426
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-03-30T03:16:16-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
