Wastewater/Activity/PacpInspection/1.0Mar 31, 2016, 08:18 AM
15 1044_15 0060_20160331_013303.mp4
- Date
- 03/31/2016
- W/O
- 563386
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00622
- PipeID
- P11955
- Time
- 1:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3301
- Sewer Name
- 15 PUENTE TRUNK
- City
- INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_563386_TV15025_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 15 1044
- Downstream MH
- 15 0060
- Dir. of Survey
- Downstream
- Length Surveyed
- 147.8 ft.
- Total Length
- 147.8 ft.
- Structural Index
- 4
- Structural Quick
- 5142
- Structural Rating
- 16
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 58
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 74
Observation photos (5)

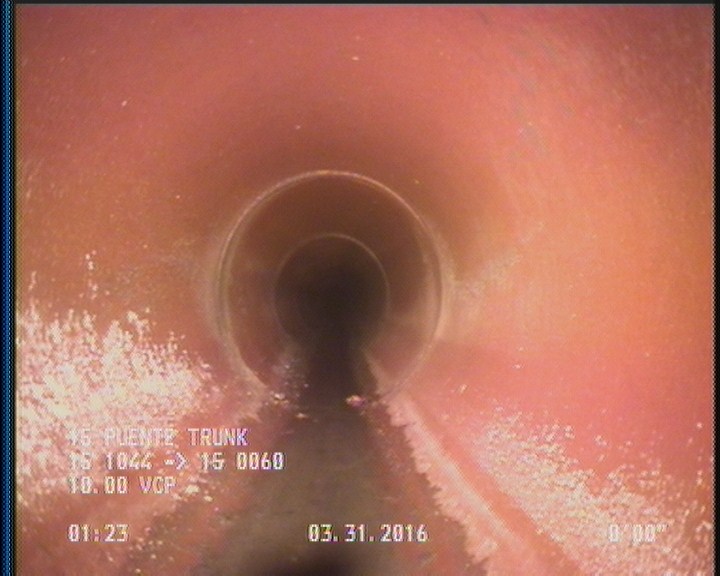

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

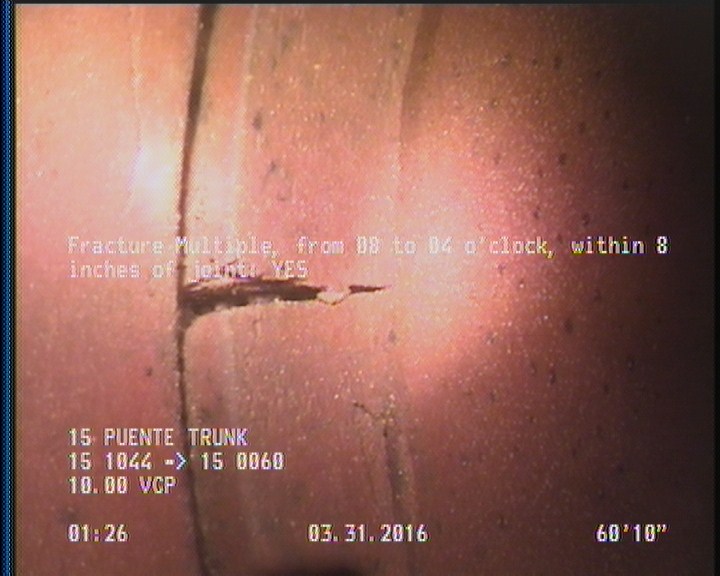

60.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

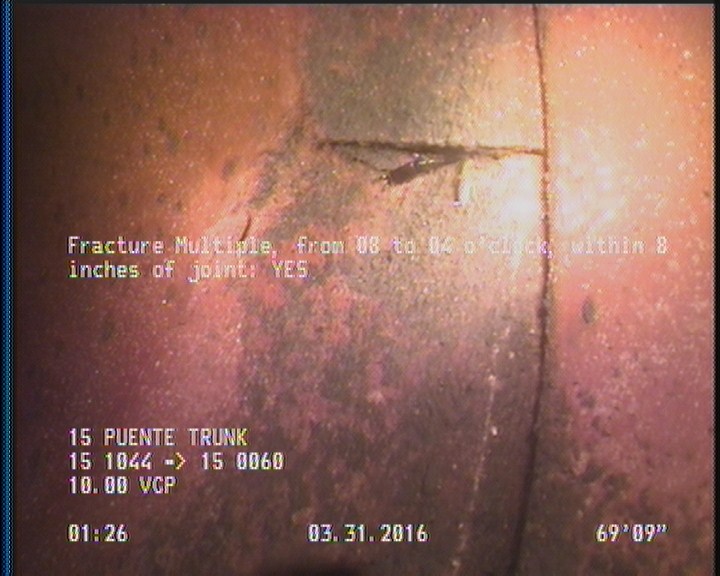

69.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
103.3 ft. - Broken, from 10 to 02 o'clock, within 8 inches of joint: YES

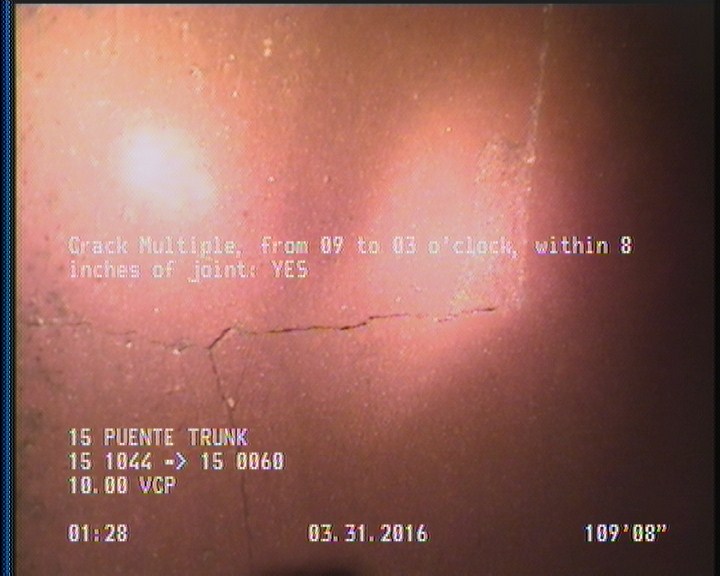

109.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 60.8 | FM | — |
| 147.8 | MGO | CAPPED CONNECTION AT MH 12 O'CLOCK |
| 2 | DAGS | — |
| 0 | AMH | 15 1044 |
| 147.8 | AMH | 15 0060 |
| 69.8 | FM | — |
| 146.2 | DAGS | — |
| 147.8 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 0 | MWM | — |
| 103.3 | B | — |
| 109.6 | CM | — |
Properties (4)
- additional_info
- SC305427
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-03-31T01:18:11-07:00
