15 0062_15 0061_20160331_030138.mp4
- Date
- 03/31/2016
- W/O
- 563386
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00622
- PipeID
- P11956
- Time
- 2:30 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3301
- Sewer Name
- 15 PUENTE TRUNK
- City
- INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_563386_TV15025_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 15 0062
- Downstream MH
- 15 0061
- Dir. of Survey
- Downstream
- Length Surveyed
- 416.4 ft.
- Total Length
- 416.4 ft.
- Structural Index
- 3
- Structural Quick
- 5142
- Structural Rating
- 34
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 42
Observation photos (12)
0 ft. - General Observation - COCKROACHES IN MANHOLE

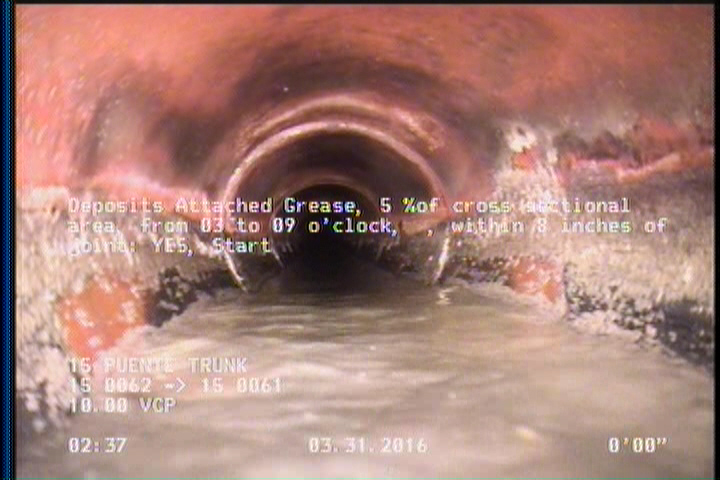

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
13.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
25.4 ft. - Fracture Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES
225.2 ft. - Crack Multiple, from 02 to 08 o'clock, within 8 inches of joint: YES
296.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
304.6 ft. - Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES
384.3 ft. - General Photograph - HOLE WITH REPAIR VISIBLE
384.3 ft. - Hole Void Visible, from 10 to 02 o'clock, within 8 inches of joint: YES - REPAIR VISIBLE
390.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
397.4 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start
416.4 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (33)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 279.6 | TF | — |
| 300.6 | TFC | — |
| 416.4 | AMH | 15 0061 |
| 384.3 | MGP | HOLE WITH REPAIR VISIBLE |
| 175.9 | TFC | — |
| 151.7 | TF | — |
| 416.4 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 397.4 | MWLS | — |
| 416.4 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 297.9 | TB | — |
| 253 | TFC | — |
| 75.3 | TFC | — |
| 0 | MWM | — |
| 296.1 | CM | — |
| 50.8 | TFC | — |
| 24 | TFC | — |
| 304.6 | FM | — |
| 101.4 | TFC | — |
| 414.6 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 229.3 | TFC | — |
| 412.9 | MWLS | — |
| 202.8 | TFC | — |
| 125.3 | TFC | — |
| 390.3 | CM | — |
| 13.6 | CM | — |
| 225.2 | CM | — |
| 25.4 | FM | — |
| 384.3 | HVV | REPAIR VISIBLE |
| 0 | AMH | 15 0062 |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC305427
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-31T02:30:28-07:00
