Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 9, 2016, 09:16 AM

  • 02 0568_02 0567_20160209_013102.mp4

Date
02/09/2016
W/O
541748
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00244
PipeID
P02887
Time
1:16 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3139
Sewer Name
02 DISTRICT #2 MAIN TRUNK
City
COMMERCE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
17
Purpose
Routine Assessment
Project
WO_541748_TV02091_DEC2015
Material
RCP-CTL
Shape
Circular
Height
33 in.
Upstream MH
02 0568
Downstream MH
02 0567
Dir. of Survey
Downstream
Length Surveyed
383.8 ft.
Total Length
383.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2N00
O&M Rating
150
Overall Index
2
Overall Quick
—
Overall Rating
150
Pipe schematic from manhole 02 0568 to 02 0567
MH: 02 0568MH: 02 0567downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 02 05682 ft. MGO - General Observation - MAGNESIUM H.O. START3.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start20.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 8"380.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish383.7 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK383.7 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK383.8 ft. AMH - Downstream Manhole, Survey Ends - 02 0567

Observation photos (6)

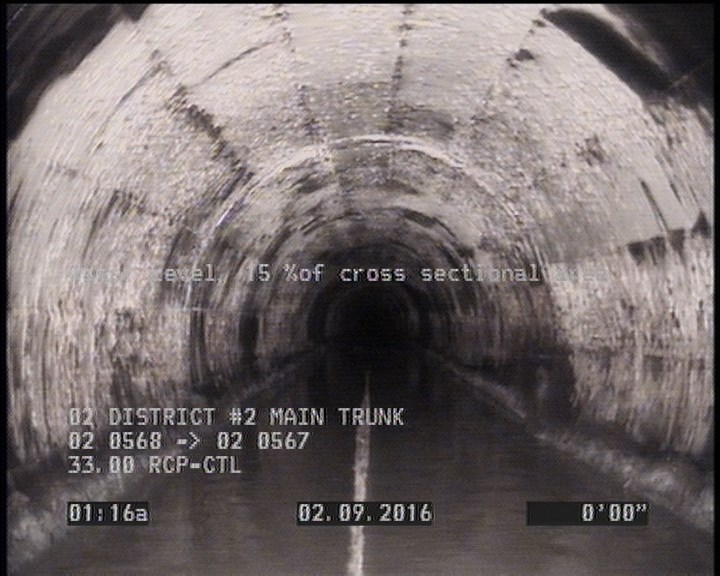

  • Water Level, 15 %of cross sectional area

    0 ft. - Water Level, 15 %of cross sectional area

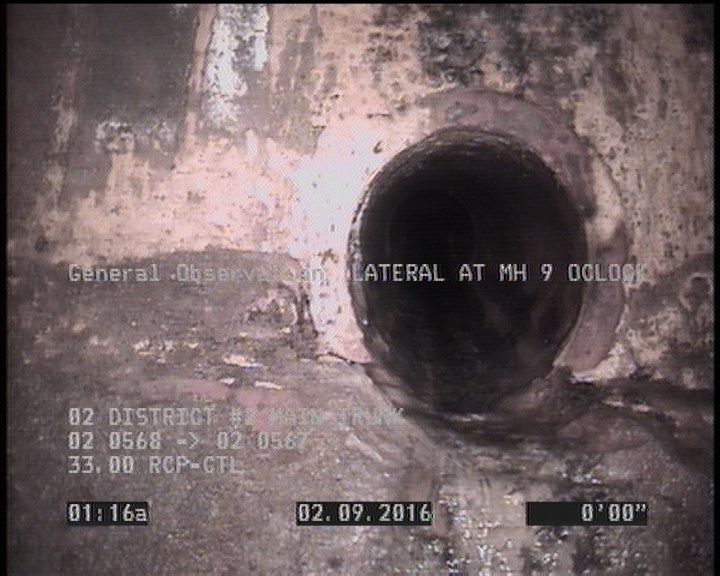

  • General Observation - LATERAL AT MH 9 OCLOCK

    0 ft. - General Observation - LATERAL AT MH 9 OCLOCK

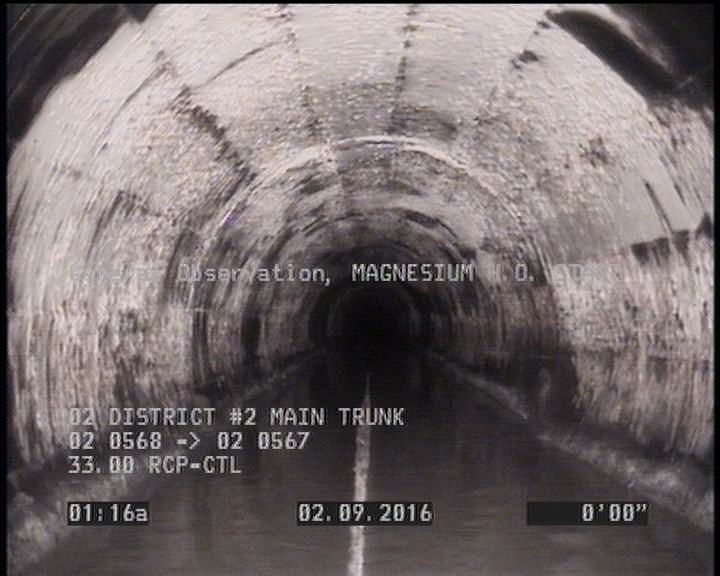

  • General Observation - MAGNESIUM H.O. START

    2 ft. - General Observation - MAGNESIUM H.O. START

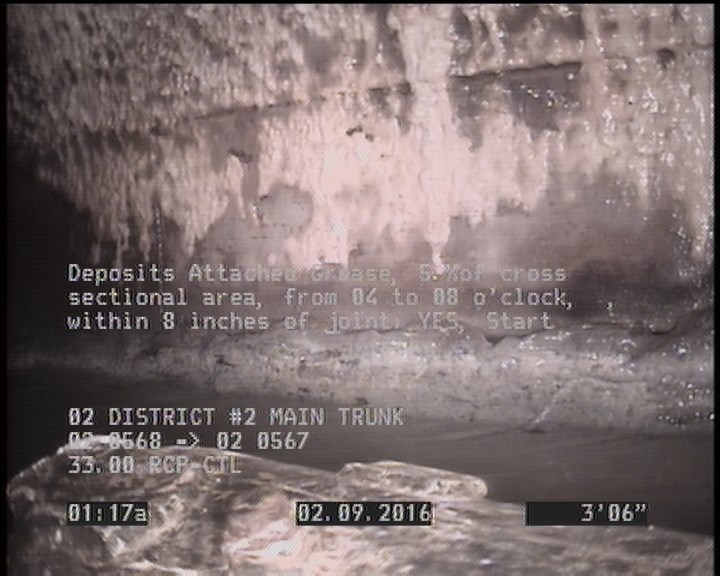

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

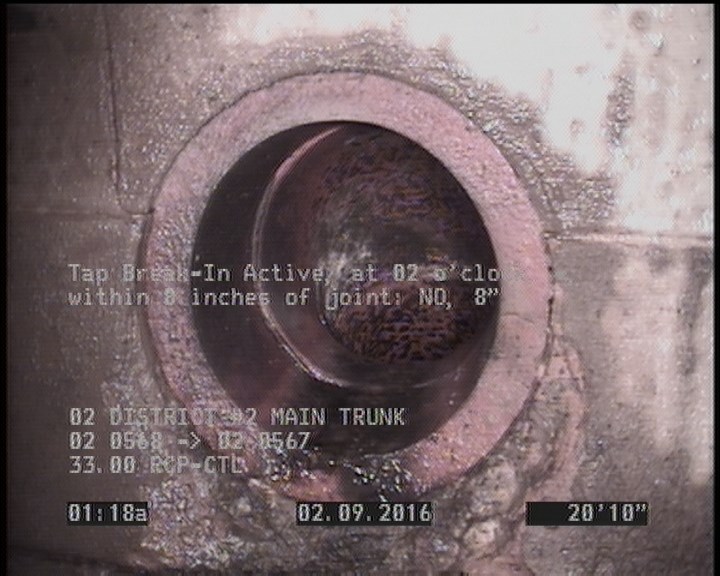

  • Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 8"

    20.9 ft. - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 8"

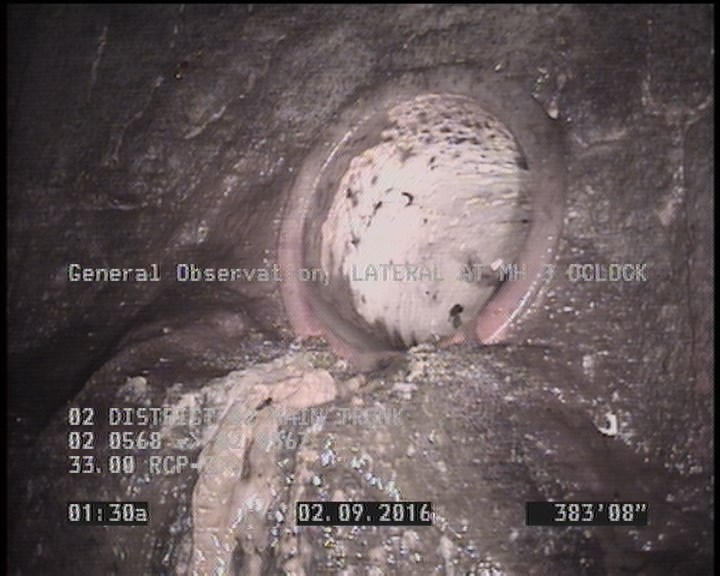

  • General Observation - LATERAL AT MH 3 OCLOCK

    383.7 ft. - General Observation - LATERAL AT MH 3 OCLOCK

All inspections of P02887Work order 541748

Observations (11)

DistanceCodeObservation
0MWL—
383.8AMH02 0567
383.7MGOLATERAL AT MH 3 OCLOCK
0MWM—
2MGOMAGNESIUM H.O. START
0MGOLATERAL AT MH 9 OCLOCK
20.9TBA—
380.6DAGS—
0AMH02 0568
3.5DAGS—
383.7MGOLATERAL AT MH 9 OCLOCK

Properties (5)

additional_info
SC225526
custom_field_two
4
customer
LACSD
datetime
2016-02-09T01:16:00-08:00
sewer_category
GRAVITY
