Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 16, 2016, 09:45 AM

  • 02 2415_02 0576_20160216_015502.mp4

Date
02/16/2016
W/O
541748
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00244
PipeID
P02896
Time
1:45 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3146
Sewer Name
02 DISTRICT #2 MAIN TRUNK
City
COMMERCE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
WO_541748_TV02091_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
02 2415
Downstream MH
02 0576
Dir. of Survey
Downstream
Length Surveyed
189.7 ft.
Total Length
189.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
312F
O&M Rating
76
Overall Index
2
Overall Quick
—
Overall Rating
76
Pipe schematic from manhole 02 2415 to 02 0576
MH: 02 2415MH: 02 0576downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 24150 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. MGO - General Observation - MAGNESIUM H.O. START7 ft. DSF - Deposits Settled Fine, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start33.1 ft. OBR - Obstacles Rocks, 20 %of cross sectional area, from 03 to 06 o'clock40.1 ft. VC - Vermin Cockroach185.4 ft. DSF - Deposits Settled Fine, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish189.7 ft. AMH - Downstream Manhole, Survey Ends - 02 0576

Observation photos (2)

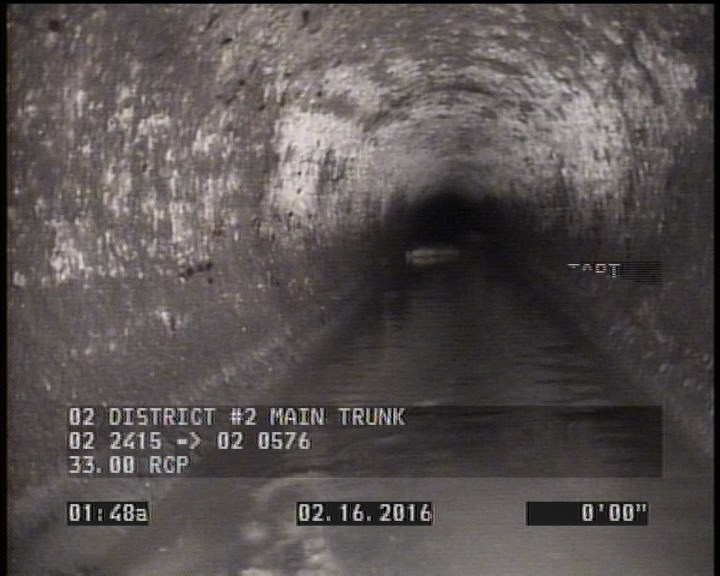

  • General Observation - MAGNESIUM H.O. START

    2 ft. - General Observation - MAGNESIUM H.O. START

  • Obstacles Rocks, 20 %of cross sectional area, from 03 to 06 o'clock

    33.1 ft. - Obstacles Rocks, 20 %of cross sectional area, from 03 to 06 o'clock

All inspections of P02896Work order 541748

Observations (9)

DistanceCodeObservation
2MGOMAGNESIUM H.O. START
0AMH02 2415
40.1VC—
189.7AMH02 0576
185.4DSF—
33.1OBR—
0MWL—
7DSF—
0MWM—

Properties (5)

additional_info
SC225533
custom_field_two
3
customer
LACSD
datetime
2016-02-16T01:45:00-08:00
sewer_category
GRAVITY
