Wastewater/Activity/PacpInspection/1.0Oct 4, 2017, 09:36 AM
16 0026_16 0025 _04102017_023746.mp4
- Date
- 10/04/2017
- W/O
- 663061
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00640
- PipeID
- P13116
- Time
- 2:36 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4992
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTION 3
- City
- SAN MARINO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_663061_TV16073_OCT2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 16 0026
- Downstream MH
- 16 0025
- Dir. of Survey
- Downstream
- Length Surveyed
- 283.3 ft.
- Total Length
- 283.3 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

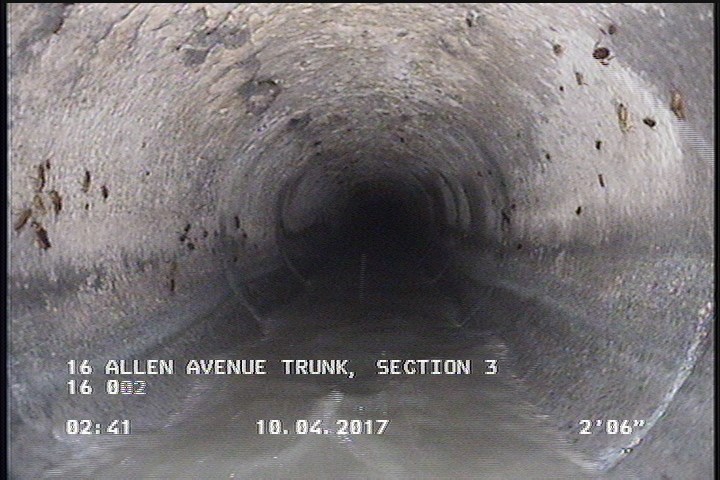

2.5 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

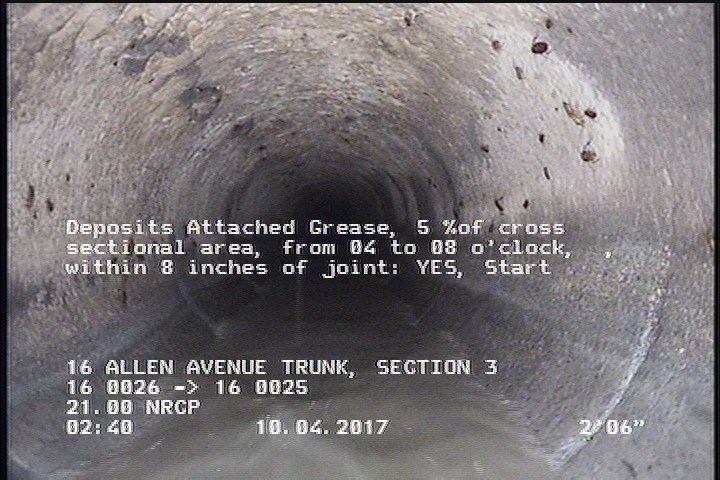

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

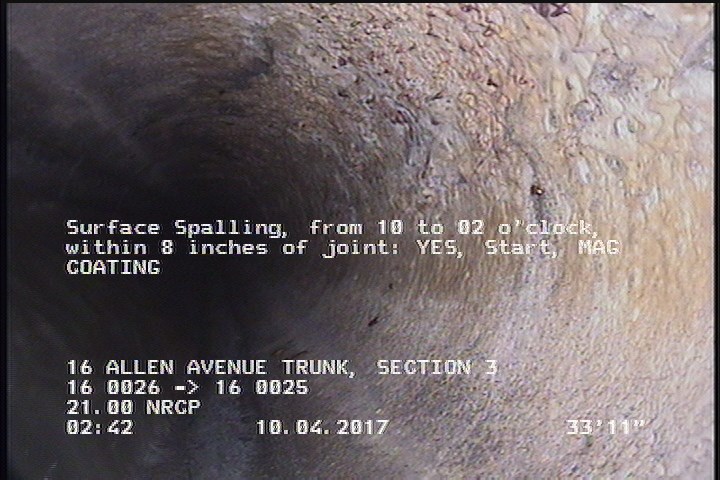

33.9 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - MAG COATING
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 283.3 | SSS | — |
| 283.3 | SRI | — |
| 283.3 | AMH | 16 0025 |
| 283.3 | DAGS | — |
| 33.9 | SSS | MAG COATING |
| 0 | AMH | 16 0026 |
| 2.5 | SRI | — |
| 2.5 | DAGS | — |
Properties (6)
- additional_info
- SC345984
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-04T02:36:45-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
