Wastewater/Activity/PacpInspection/1.0Oct 6, 2017, 07:38 AM
05 0894_05 0893 _06102017_003903.mp4
- Date
- 10/06/2017
- W/O
- 663034
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00512
- PipeID
- P06124
- Time
- 12:38 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5008
- Sewer Name
- 05 RAYMOND AVENUE TRUNK
- City
- HAWTHRONE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_663034_TV05096_OCT2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 0894
- Downstream MH
- 05 0893
- Dir. of Survey
- Downstream
- Length Surveyed
- 106.3 ft.
- Total Length
- 106.3 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 45
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 49
Observation photos (4)

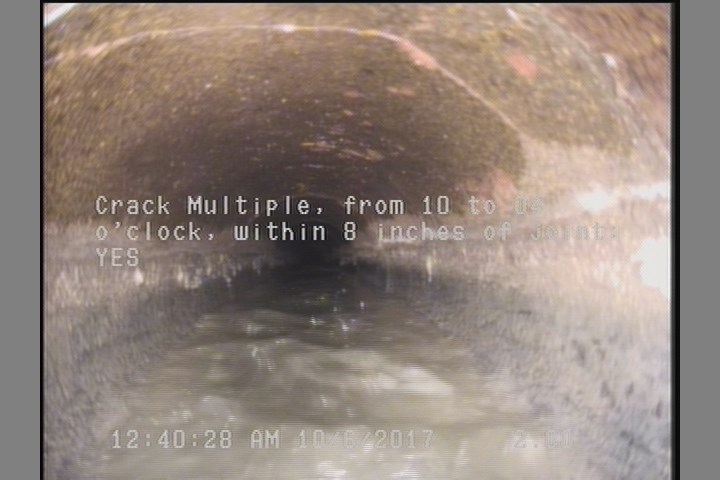

2.6 ft. - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

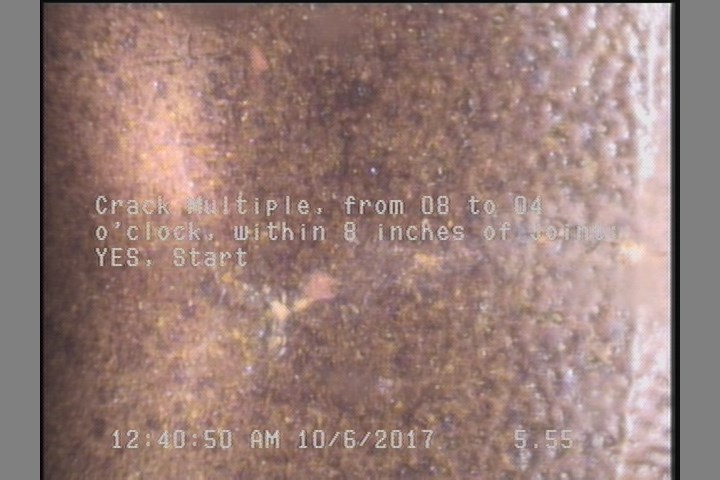

5.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

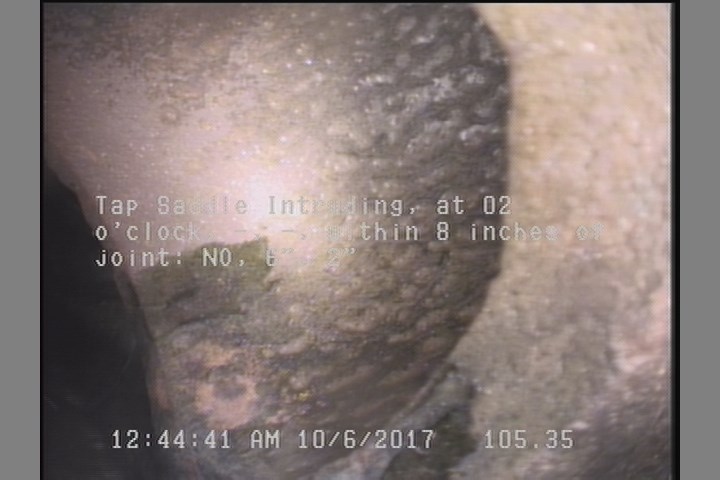

105.4 ft. - Tap Saddle Intruding, at 02 o'clock, -, -, within 8 inches of joint: NO, 6", 2"

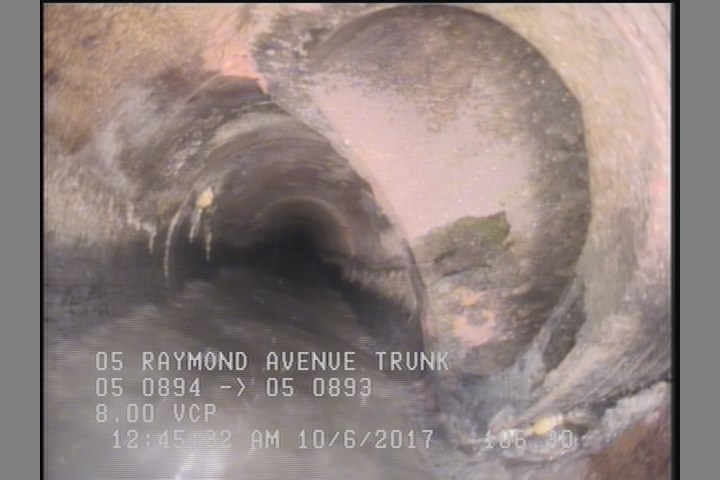

106.3 ft. - Survey Abandoned - CAM BLKD BY INTRUDING LATERAL
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 0894 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK, ACTIVE |
| 2.6 | CM | — |
| 5.6 | CM | — |
| 77.7 | TF | — |
| 67.9 | TF | — |
| 105.4 | TSI | — |
| 70 | TF | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK CAPPED |
| 0 | MWM | — |
| 106.3 | MSA | CAM BLKD BY INTRUDING LATERAL |
| 0 | MWL | — |
| 73.4 | CM | — |
Properties (6)
- additional_info
- SC346168
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-10-06T00:38:54-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
