Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2017, 09:17 AM

  • 05 0901_05 0900 _05102017_021734.mp4

Date
10/05/2017
W/O
663034
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00512
PipeID
P06131
Time
2:17 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4905
Sewer Name
05 RAYMOND AVENUE TRUNK
City
HAWTHRONE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_663034_TV05096_OCT2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 0900
Downstream MH
05 0901
Dir. of Survey
Upstream
Length Surveyed
270.5 ft.
Total Length
270.6 ft.
Structural Index
3
Structural Quick
3321
Structural Rating
11
O&M Index
2
O&M Quick
3124
O&M Rating
11
Overall Index
2
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 05 0900 to 05 0901
MH: 05 0900MH: 05 0901upstream0 ft. MSA - Survey Abandoned - CAM BLKD BY INTRUDING LATERAL0.7 ft. TSI - Tap Saddle Intruding, at 03 o'clock, -, -, within 8 inches of joint: YES, 6", 1"3.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 07 o'clock, , within 8 inches of joint: NO5.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"12.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"17 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES55.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"63.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"79.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES103.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"112.3 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES113.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"158.9 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6", 6" - FRACTURE161.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"209.2 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6", 6" - FRACTURE211.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"258.4 ft. CM - Crack Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES259.1 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6", 6" - BROKEN270.6 ft. MWM - Water Mark, 25 %of cross sectional area270.6 ft. MWL - Water Level, 10 %of cross sectional area270.6 ft. AMH - Downstream Manhole, Survey Begins - 05 0900270.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK, ACTIVE

Observation photos (5)

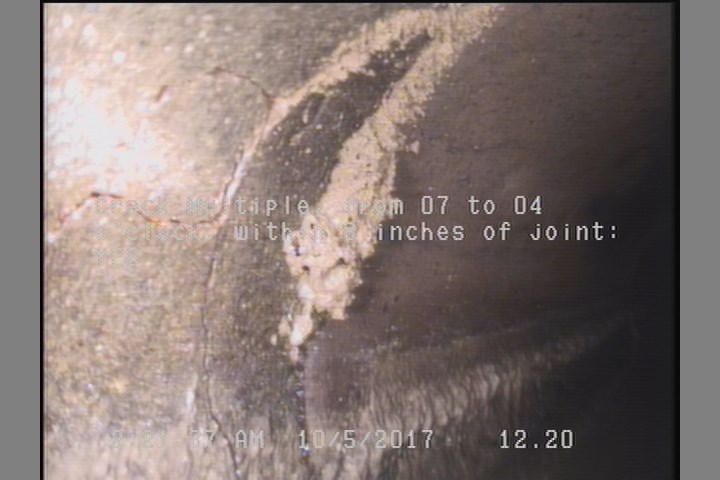

  • Crack Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES

    12.2 ft. - Crack Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES

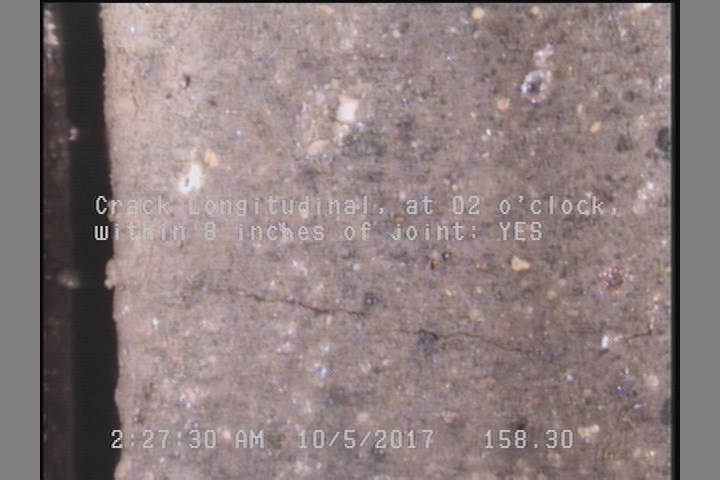

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    158.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

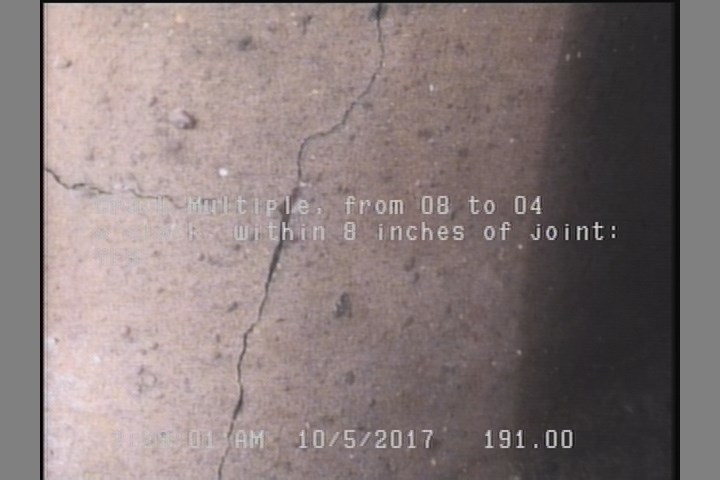

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    191 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

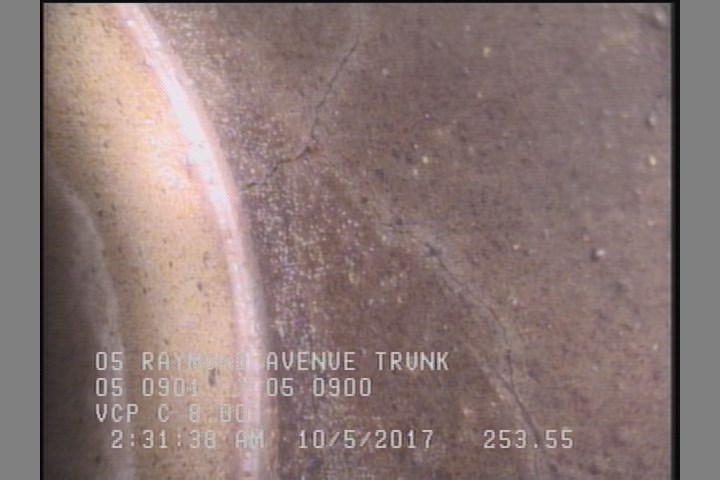

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    253.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

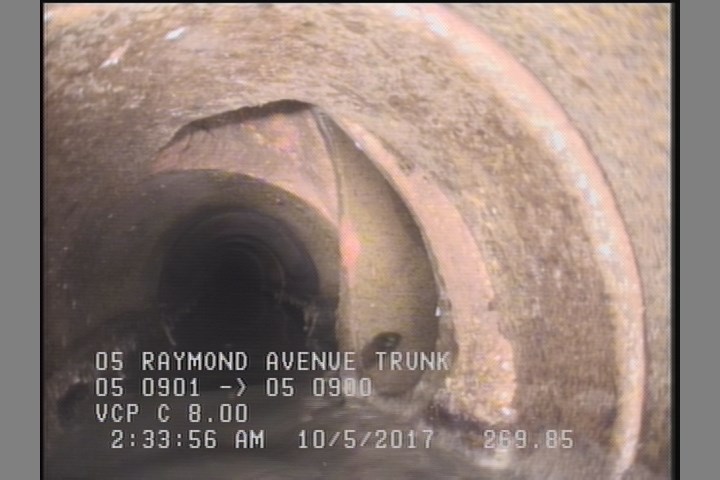

  • Tap Saddle Intruding, at 03 o'clock, -, -, within 8 inches of joint: YES, 6", 1"

    269.9 ft. - Tap Saddle Intruding, at 03 o'clock, -, -, within 8 inches of joint: YES, 6", 1"

All inspections of P06131Work order 663034

Observations (22)

DistanceCodeObservation
59.1TF—
257.9TF—
265.5TFC—
0MWM—
11.5TFDBROKEN
12.2CM—
253.6CM—
207.4TF—
61.4TFDFRACTURE
191CM—
158.3CL—
0MWL—
109.2TF—
267.2DAGS—
167.2TFC—
0AMH05 0900
0MGOCONNECTION AT MH 3 O'CLOCK, ACTIVE
157.2TF—
269.9TSI—
215TFC—
111.7TFDFRACTURE
270.6MSACAM BLKD BY INTRUDING LATERAL

Properties (6)

additional_info
SC346165
custom_field_two
3
customer
LACSD
datetime
2017-10-05T02:17:17-07:00
documentation
PROPIPE
is_lateral_inspection
false
