Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 6, 2017, 08:02 AM

  • 05 0893_05 0892 _06102017_010621.mp4

Date
10/06/2017
W/O
663034
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00512
PipeID
P06123
Time
1:02 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5008
Sewer Name
05 RAYMOND AVENUE TRUNK
City
HAWTHRONE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_663034_TV05096_OCT2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 0893
Downstream MH
05 0892
Dir. of Survey
Downstream
Length Surveyed
292.9 ft.
Total Length
292.9 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
174
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
174
Pipe schematic from manhole 05 0893 to 05 0892
MH: 05 0893MH: 05 0892downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 08930 ft. MGO - General Observation - UNKNOWN CONN. INSIDE THE MH. @ 09 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area4.7 ft. CM - Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES6.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES12.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start16.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"29 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"41.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"81.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"84.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"137.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"140.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"205.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"216.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"243.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"292.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish292.9 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK292.9 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK292.9 ft. AMH - Downstream Manhole, Survey Ends - 05 0892

Observation photos (3)

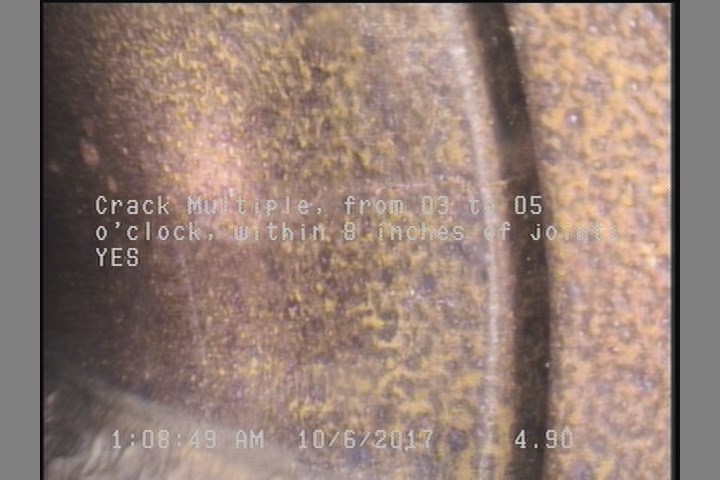

  • Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

    4.7 ft. - Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

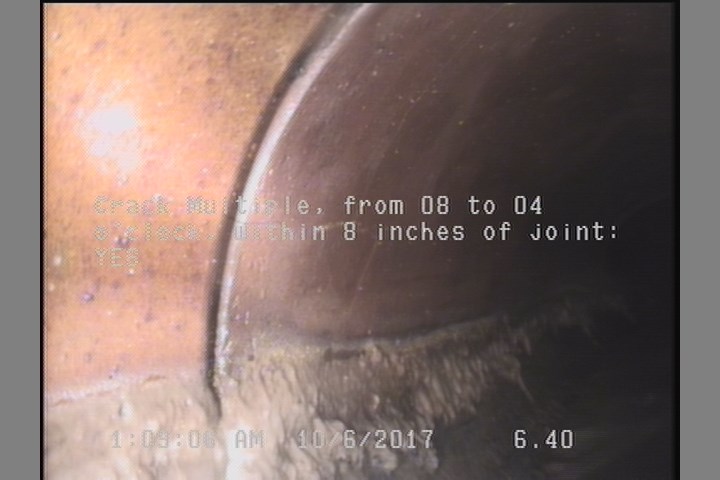

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    6.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

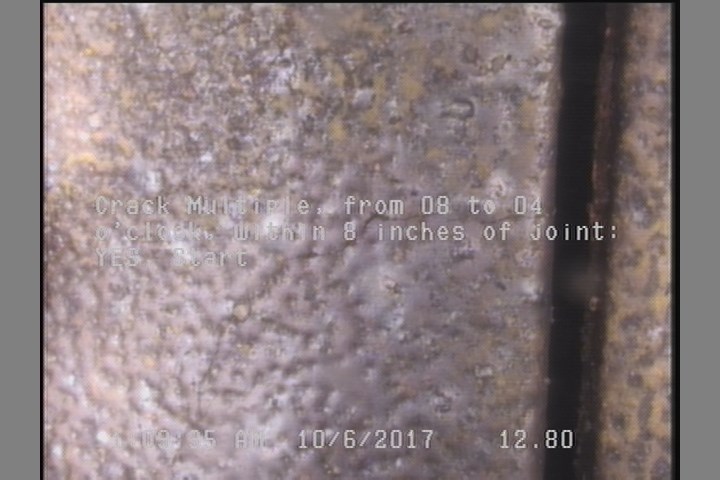

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    12.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06123Work order 663034

Observations (21)

DistanceCodeObservation
84.8TF—
205.8TFC—
0MWM—
81.8TFC—
140.4TFC—
12.8CM—
137.7TF—
292.9CM—
6.4CM—
0AMH05 0893
216.3TF—
29TF—
243.9TFC—
4.7CM—
0MGOUNKNOWN CONN. INSIDE THE MH. @ 09 O'CLOCK
41.9TF—
292.9MGOCONNECTION AT MH 9 O'CLOCK
0MWL—
292.9MGOCONNECTION AT MH 3 O'CLOCK
292.9AMH05 0892
16.5TFC—

Properties (6)

additional_info
SC346168
custom_field_two
3
customer
LACSD
datetime
2017-10-06T01:02:04-07:00
documentation
PROPIPE
is_lateral_inspection
false
