Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 6, 2017, 07:10 AM

  • 05 0895_05 0894 _06102017_001515.mp4

Date
10/06/2017
W/O
663034
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00512
PipeID
P06125
Time
12:10 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5008
Sewer Name
05 RAYMOND AVENUE TRUNK
City
HAWTHRONE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_663034_TV05096_OCT2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 0895
Downstream MH
05 0894
Dir. of Survey
Downstream
Length Surveyed
305 ft.
Total Length
305 ft.
Structural Index
3
Structural Quick
3H00
Structural Rating
138
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
142
Pipe schematic from manhole 05 0895 to 05 0894
MH: 05 0895MH: 05 0894downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 08950 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK, ACTIVE4.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start13.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"31.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"33.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"81.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"84.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"129.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"132.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"182.4 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - CRACKED218 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"223.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish228.6 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES230.2 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - HOLE IN LATERAL269.3 ft. CM - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES275.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"305 ft. AMH - Downstream Manhole, Survey Ends - 05 0894305 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK, ACTIVE305 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED

Observation photos (5)

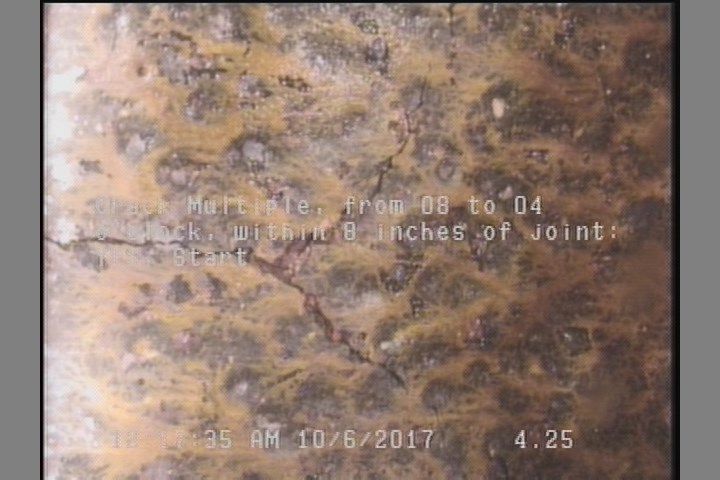

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

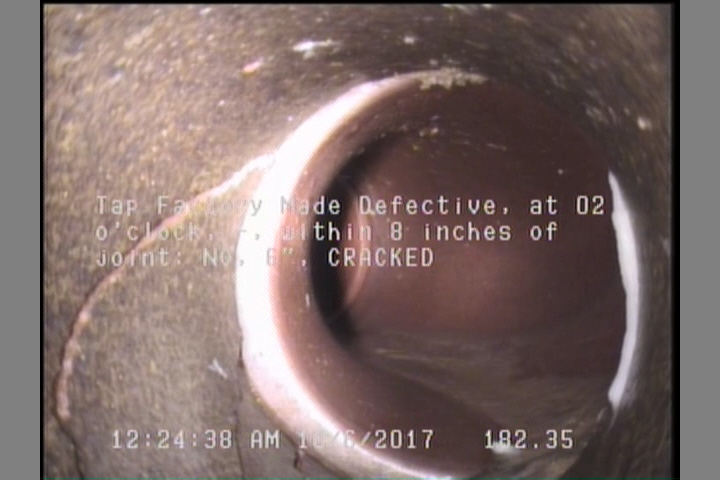

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - CRACKED

    182.4 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - CRACKED

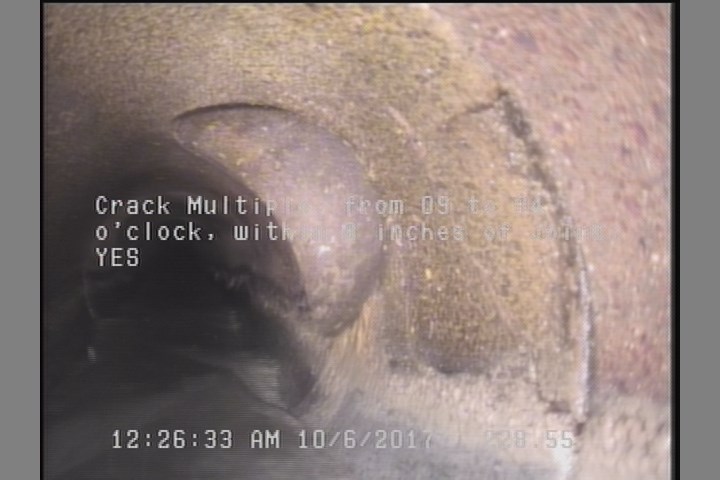

  • Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

    228.6 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

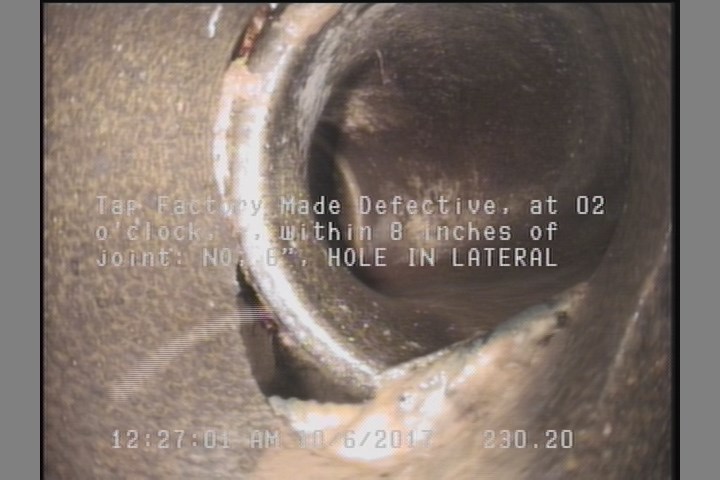

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - HOLE IN LATERAL

    230.2 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - HOLE IN LATERAL

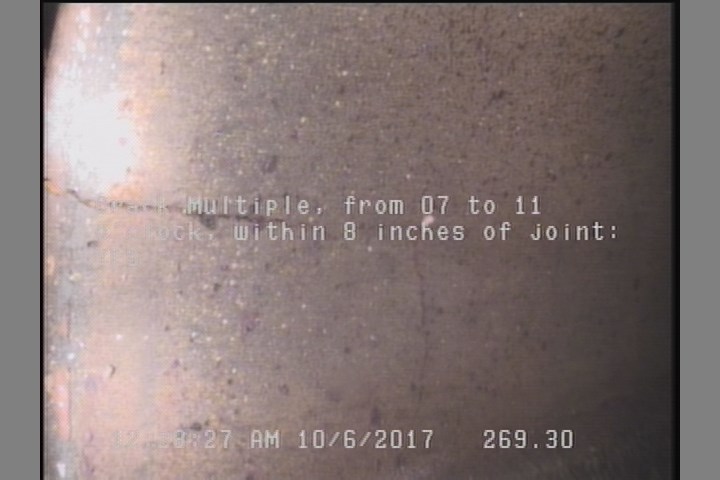

  • Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

    269.3 ft. - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

All inspections of P06125Work order 663034

Observations (22)

DistanceCodeObservation
0MWL—
305AMH05 0894
182.4TFDCRACKED
0AMH05 0895
129.7TF—
0MWM—
33.6TF—
269.3CM—
132.2TF—
230.2TFDHOLE IN LATERAL
223.9CM—
228.6CM—
275.7TFC—
218TF—
13.7TF—
4.3CM—
81.6TF—
305MGOCONNECTION AT MH 9 O'CLOCK, ACTIVE
84.1TF—
0MGOCONNECTION AT MH 3 O'CLOCK, ACTIVE
305MGOCONNECTION AT MH 3 O'CLOCK CAPPED
31.3TF—

Properties (6)

additional_info
SC346168
custom_field_two
3
customer
LACSD
datetime
2017-10-06T00:10:53-07:00
documentation
PROPIPE
is_lateral_inspection
false
