Wastewater/Activity/PacpInspection/1.0Jul 23, 2018, 09:37 AM
16 0169_16 0168_23072018_025332.mp4
- Date
- 07/23/2018
- W/O
- 717884
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00648
- PipeID
- P13201
- Time
- 2:37 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5876
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 5
- City
- SOUTH PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_717884_TV16081_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0169
- Downstream MH
- 16 0168
- Dir. of Survey
- Downstream
- Length Surveyed
- 349.7 ft.
- Total Length
- 349.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

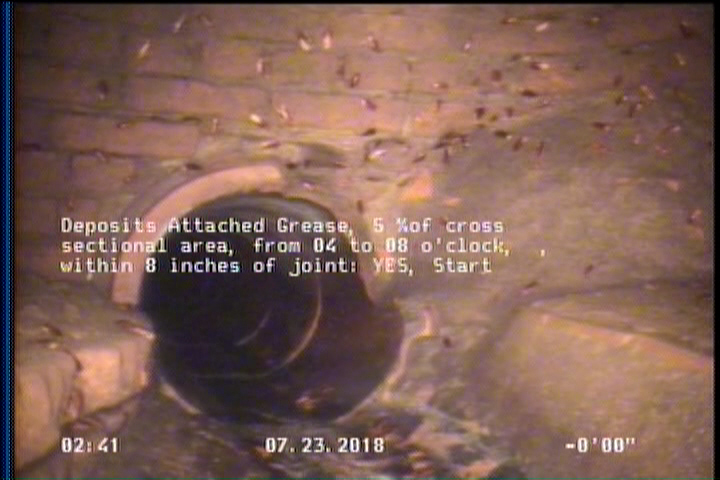

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
2.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2.5 | CM | — |
| 0 | MGO | ROACHES IN MH |
| 349.7 | DAGS | — |
| 349.7 | AMH | 16 0168 |
| 349.7 | CM | — |
| 0 | AMH | 16 0169 |
| 0 | MWL | — |
| 0 | MWM | — |
| 349.7 | MGO | ROACHES |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC359744
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-23T02:37:55-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
