Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 15, 2018, 09:00 AM

  • 22 0967_22 0966_15082018_021543.mp4

Date
08/15/2018
W/O
717737
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00790
PipeID
P17337
Time
2:00 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5901
Sewer Name
22 BASE LINE TRUNK
City
GLENDORA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
12
Purpose
Routine Assessment
Project
WO_717737_TV22002_AUG2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0966
Downstream MH
22 0967
Dir. of Survey
Upstream
Length Surveyed
374.2 ft.
Total Length
374.2 ft.
Structural Index
3
Structural Quick
3N2N
Structural Rating
370
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
2
Overall Quick
—
Overall Rating
518
Pipe schematic from manhole 22 0966 to 22 0967
MH: 22 0966MH: 22 0967upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 09670.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK1.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish1.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish1.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE54.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"151.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"211.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"265.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"316.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"368.7 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start372.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start372.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start374.2 ft. MGO - General Observation - MAG COATING THROUGHOUT 40%374.2 ft. MWM - Water Mark, 25 %of cross sectional area374.2 ft. AMH - Upstream Manhole, Survey Begins - 22 0967374.2 ft. MWL - Water Level, 10 %of cross sectional area374.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

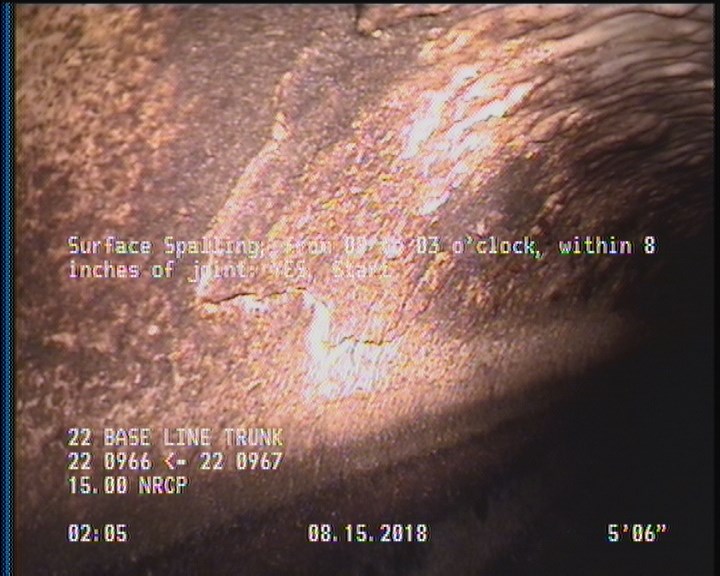

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    5.5 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P17337Work order 717737

Observations (19)

DistanceCodeObservation
109.1TFC—
374.2AMH22 0967
373SSS—
222.5TFC—
373DAGS—
373SAV—
57.3TFC—
374.1MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MGOMAG COATING THROUGHOUT 40%
0MWM—
0AMH22 0967
0MWL—
2SAV—
2DAGS—
162.6TFA—
0MGOCOCKROACHES IN MANHOLE
373MGOCOCKROACHES IN MANHOLE
319.4TFC—
5.5SSS—

Properties (6)

additional_info
SC364770
custom_field_two
3
customer
LACSD
datetime
2018-08-15T02:00:21-07:00
documentation
PRO PIPE
is_lateral_inspection
false
