Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 16, 2018, 07:58 AM

  • 22 0960_22 0959_16082018_011454.mp4

Date
08/16/2018
W/O
717737
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00790
PipeID
P17330
Time
12:58 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5902
Sewer Name
22 BASE LINE TRUNK
City
GLENDORA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
12
Purpose
Routine Assessment
Project
WO_717737_TV22002_AUG2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0959
Downstream MH
22 0960
Dir. of Survey
Upstream
Length Surveyed
439.7 ft.
Total Length
439.7 ft.
Structural Index
3
Structural Quick
3P00
Structural Rating
261
O&M Index
2
O&M Quick
2P00
O&M Rating
174
Overall Index
3
Overall Quick
—
Overall Rating
435
Pipe schematic from manhole 22 0959 to 22 0960
MH: 22 0959MH: 22 0960upstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 22 09601.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE1.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish25.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"64.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"118.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"165 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"217.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"241.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"265.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"314.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"364.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"371 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"415.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"437.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start437.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start439.7 ft. MWL - Water Level, 20 %of cross sectional area439.7 ft. MGO - General Observation - MAG COATING THROUGHOUT 50%439.7 ft. MWM - Water Mark, 30 %of cross sectional area439.7 ft. AMH - Downstream Manhole, Survey Begins - 22 0959439.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (2)

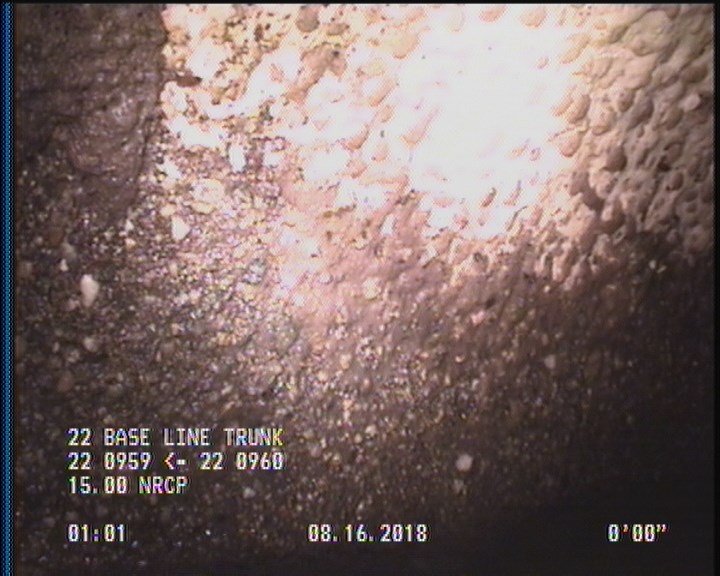

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

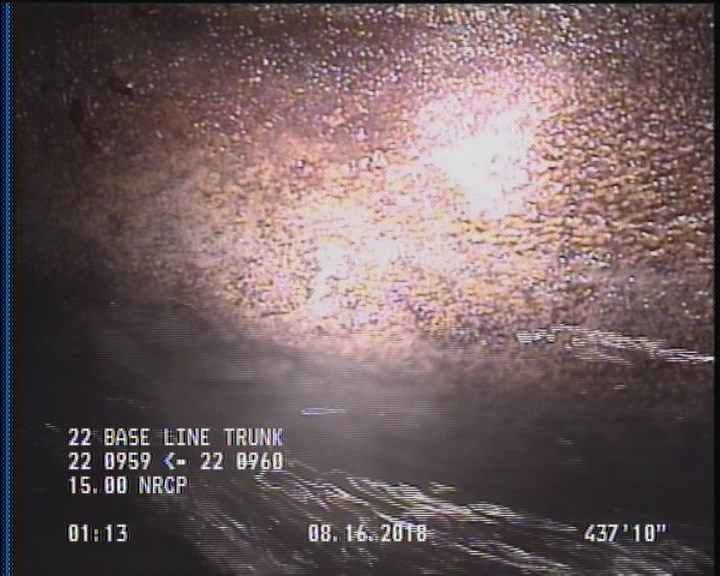

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P17330Work order 717737

Observations (23)

DistanceCodeObservation
0MWL—
0MGOMAG COATING THROUGHOUT 50%
198.5TFC—
439.7MGOACTIVE CONNECTION AT MH 3 O'CLOCK
174.2TFC—
321TFC—
2SAV—
437.8MGOCOCKROACHES IN MANHOLE
222.4TFC—
274.7TFC—
0MWM—
125TFC—
0AMH22 0959
75.5TFC—
68.7TFC—
23.9TFC—
0MGOCOCKROACHES IN MANHOLE
2DAGS—
437.8SAV—
439.7AMH22 0960
437.8DAGS—
414.5TFC—
375.1TFC—

Properties (6)

additional_info
SC364772
custom_field_two
3
customer
LACSD
datetime
2018-08-16T00:58:20-07:00
documentation
PRO PIPE
is_lateral_inspection
false
