Wastewater/Activity/PacpInspection/1.0Sep 7, 2018, 06:08 PM
08 0098_08 0097_972018_113516.mp4
08 0098_08 0097_972018_114148.mp4
- Date
- 09/07/2018
- W/O
- 0727989
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00014
- PipeID
- P00125
- Time
- 11:08 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7804
- Sewer Name
- 08 MAIN STREET EXTENSION TRUNK
- City
- SOUTH LA
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 01
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180907DF_MAIN_STREET_EXT_TR
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 08 0097
- Downstream MH
- 08 0098
- Dir. of Survey
- Upstream
- Length Surveyed
- 326 ft.
- Total Length
- 326 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (6)

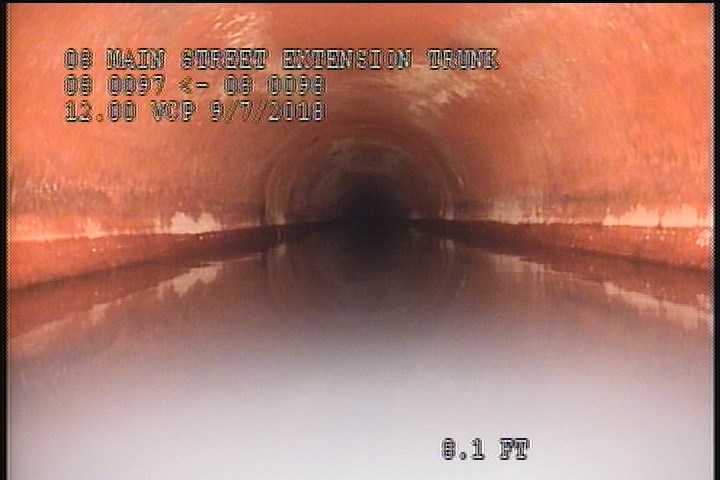

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

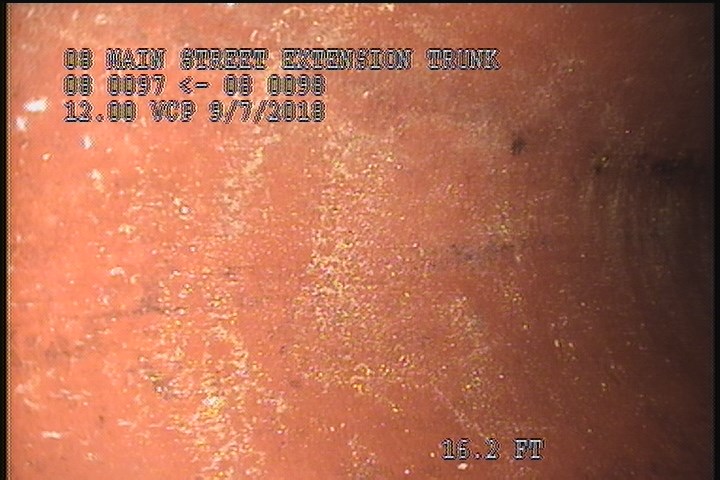

16.2 ft. - General Photograph

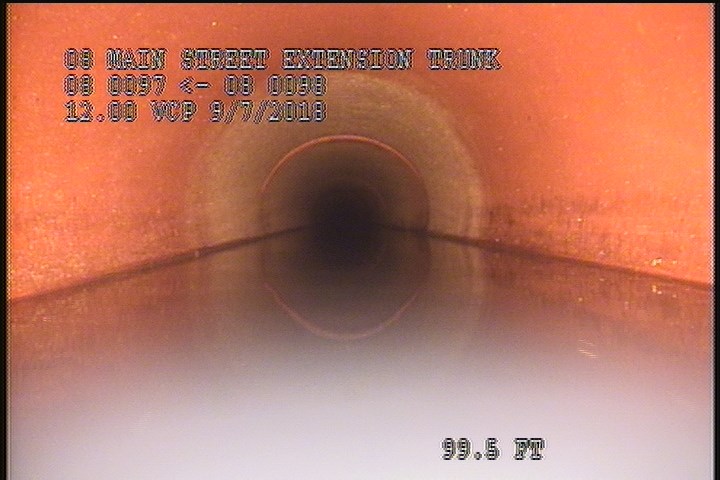

99.5 ft. - General Photograph

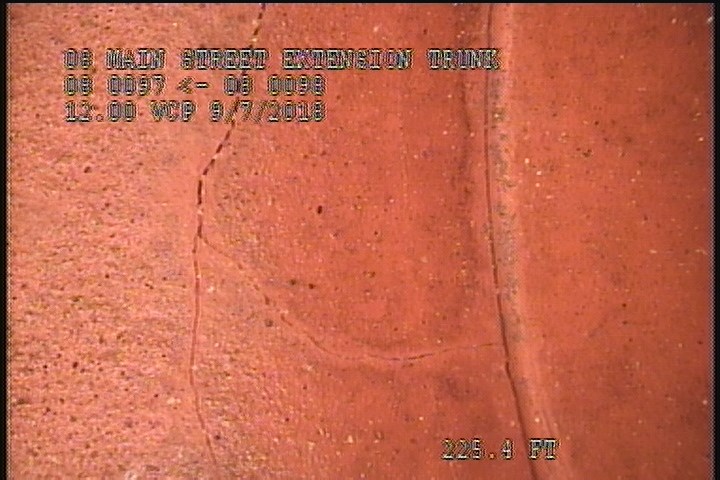

225.4 ft. - Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

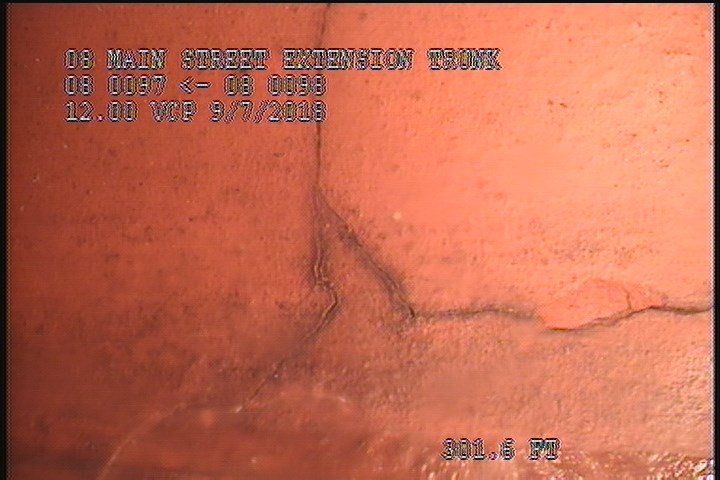

301.6 ft. - Crack Multiple, from 07 to 09 o'clock, within 8 inches of joint: YES

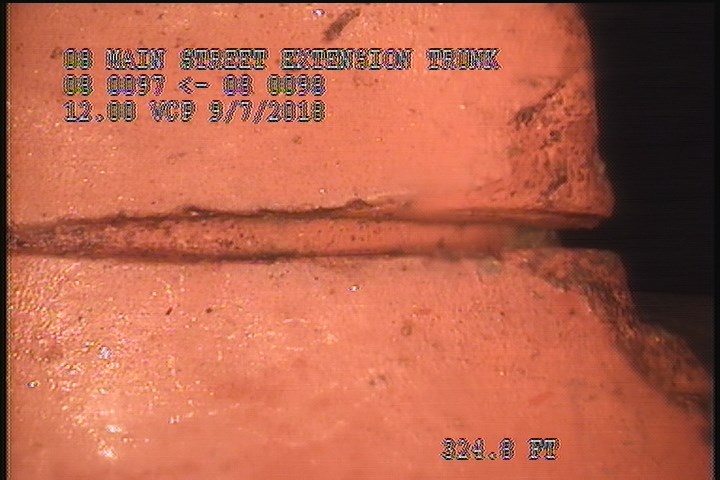

324.8 ft. - General Photograph - GROOVE @ SOFFIT
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0.1 | MWM | — |
| 326 | AMH | 12:13 PM |
| 324.8 | SSS | — |
| 16.2 | MGP | — |
| 0 | AMH | 11:13 AM |
| 301.6 | CM | — |
| 220.8 | TB | Open |
| 324.8 | MGP | GROOVE @ SOFFIT |
| 225.4 | CM | — |
| 99.5 | MGP | — |
| 2 | SSS | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-07T11:08:11-07:00
- documentation
- FRANKLIN, VENDRYES
- is_lateral_inspection
- false
