Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 10, 2018, 06:04 PM

  • D 0069_D 0068_9102018_115053.mp4

  • D 0069_D 0068_9102018_115224.mp4

Date
09/10/2018
W/O
0726351
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00154
PipeID
P09969
Time
11:04 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7805
Sewer Name
D JOINT OUTFALL D - UNIT 4
City
HAWTHORNE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20180906DF_JOINT_OUTFALL_D_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
D 0069
Downstream MH
D 0068
Dir. of Survey
Downstream
Length Surveyed
141 ft.
Total Length
141 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole D 0069 to D 0068
MH: D 0069MH: D 0068downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:07 AM2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start40.7 ft. MGP - General Photograph57.2 ft. MGP - General Photograph81.1 ft. MGP - General Photograph96.2 ft. MGP - General Photograph135.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish135.5 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 85% MAG140.3 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach141 ft. AMH - Downstream Manhole, Survey Ends - 12:04 PM141 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)

Observation photos (6)

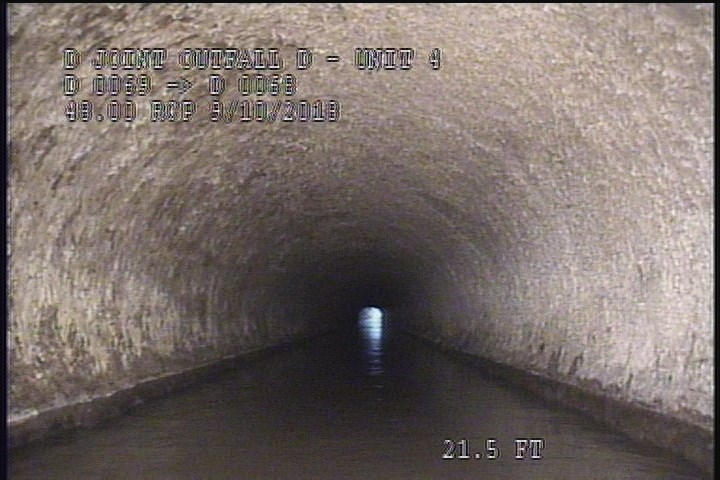

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

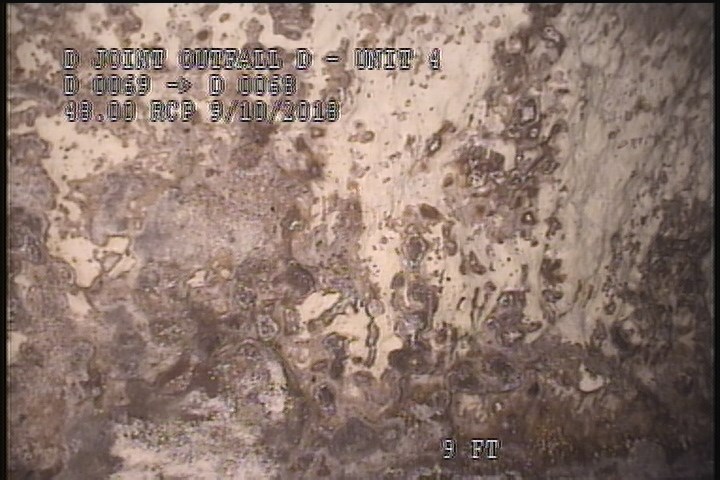

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

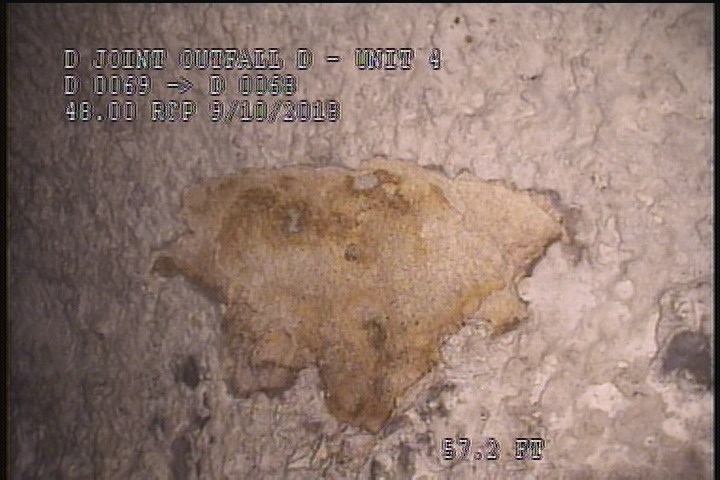

  • General Photograph

    40.7 ft. - General Photograph

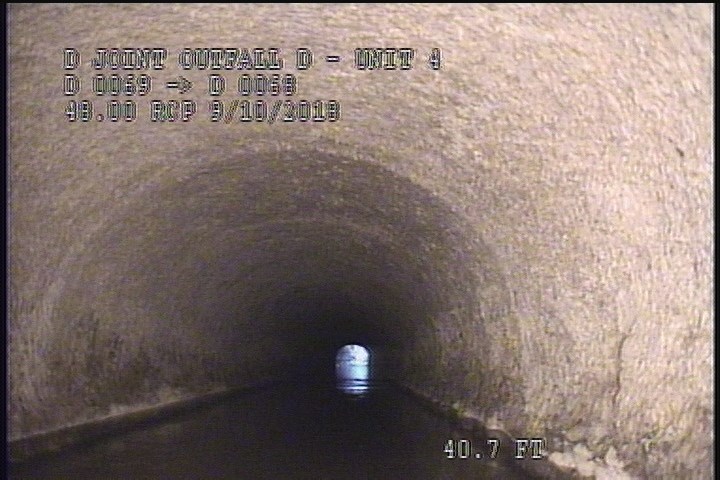

  • General Photograph

    57.2 ft. - General Photograph

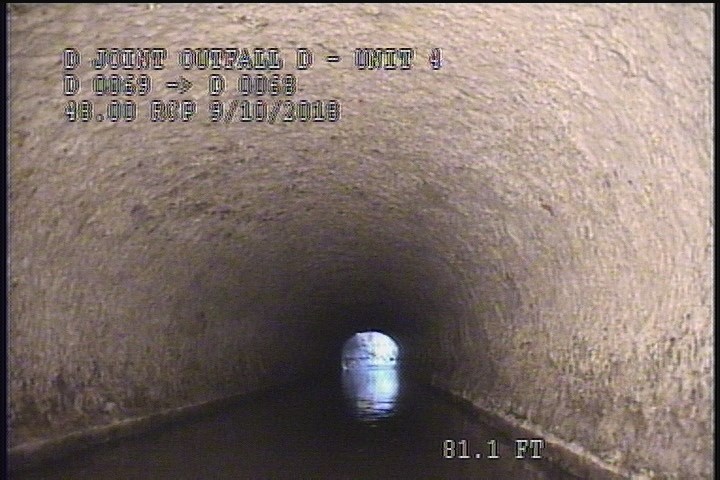

  • General Photograph

    81.1 ft. - General Photograph

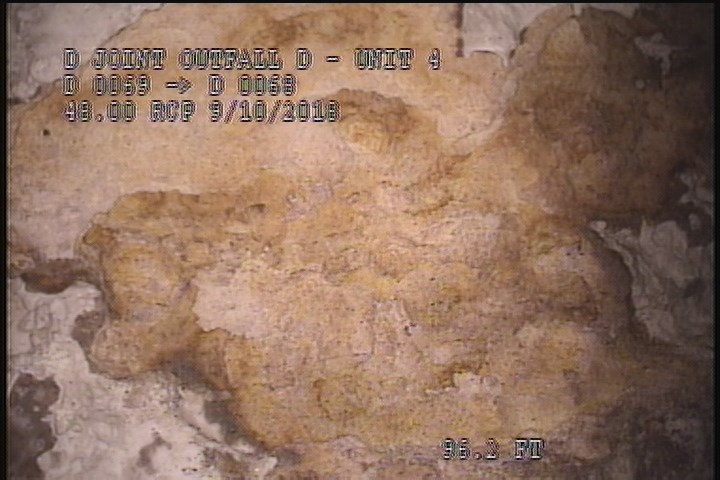

  • General Photograph

    96.2 ft. - General Photograph

All inspections of P09969Work order 0726351

Observations (15)

DistanceCodeObservation
96.2MGP—
140.3MGOPeeling & Flaking Throughout The Reach
0MWM—
57.2MGP—
2SZ85% MAG
0MGOConn. @ Mh, 9 O' Clock. Active
135.5SAV—
135.5SZ85% MAG
40.7MGP—
0MWL—
141AMH12:04 PM
2SAV—
81.1MGP—
141MGOGREASE THROUGHOUT THE REACH (5%)
0AMH11:07 AM

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-09-10T11:04:36-07:00
documentation
FRANKLIN, VENDRYES, IGNACIO,, PARAISO
is_lateral_inspection
false
