Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 2, 2017, 10:57 AM

  • J 0296_J 0295_02022017_031532.mpg

Date
02/02/2017
W/O
619078
Weather
Dry
Operator/Surveyor
R,VARGAS
Sewer ID
Z00059
PipeID
P11537
Time
2:57 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4103
Sewer Name
J JOINT OUTFALL J - UNIT 1G
City
RANCHO PALOS VERDES
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
41
Purpose
Routine Assessment
Project
WO_619078_TV05169_FEB2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
J 0296
Downstream MH
J 0295
Dir. of Survey
Downstream
Length Surveyed
412 ft.
Total Length
412.1 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
246
O&M Index
2
O&M Quick
2O11
O&M Rating
165
Overall Index
2
Overall Quick
—
Overall Rating
411
Pipe schematic from manhole J 0296 to J 0295
MH: J 0296MH: J 0295downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - J 02960 ft. MWL - Water Level, 10 %of cross sectional area2.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.9 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.9 ft. MGO - General Observation - MAGNESIUM H.O. START42.4 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"48.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"202.3 ft. RFJ - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YES207.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"244.4 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 12"244.8 ft. MGP - General Photograph360.8 ft. MGP - General Photograph361.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"410.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish410.4 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH410.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish412.1 ft. AMH - Downstream Manhole, Survey Ends - J 0295

Observation photos (5)

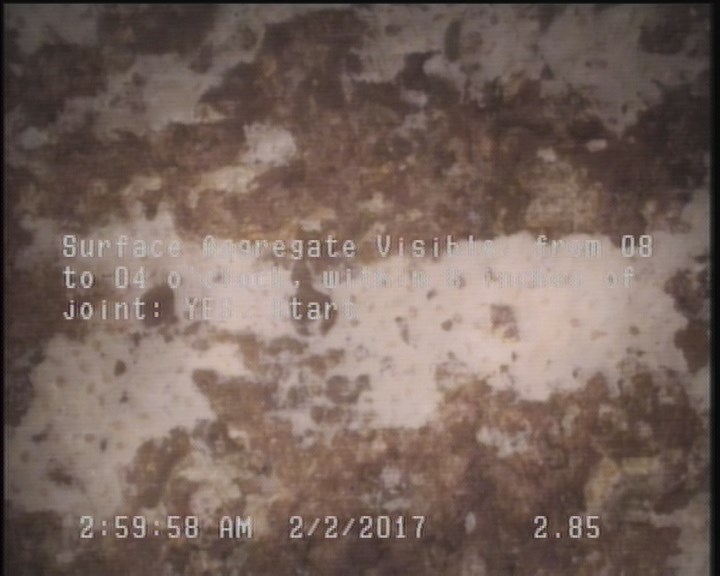

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

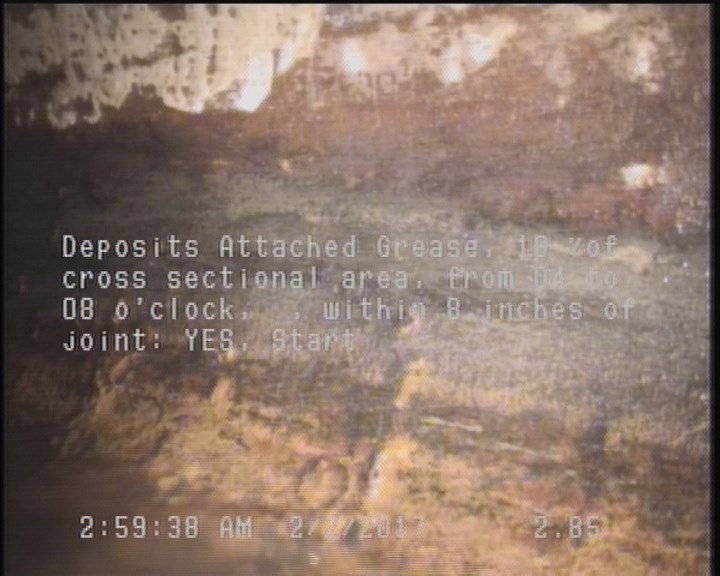

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.9 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

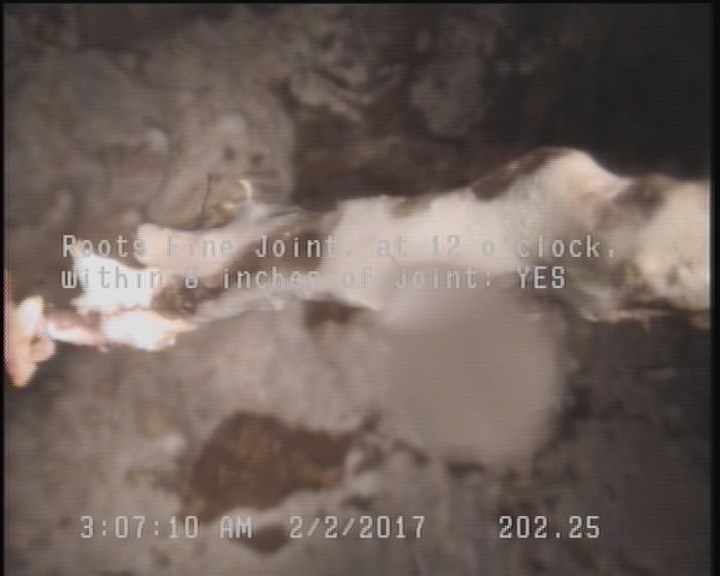

  • Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YES

    202.3 ft. - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YES

  • General Photograph

    244.8 ft. - General Photograph

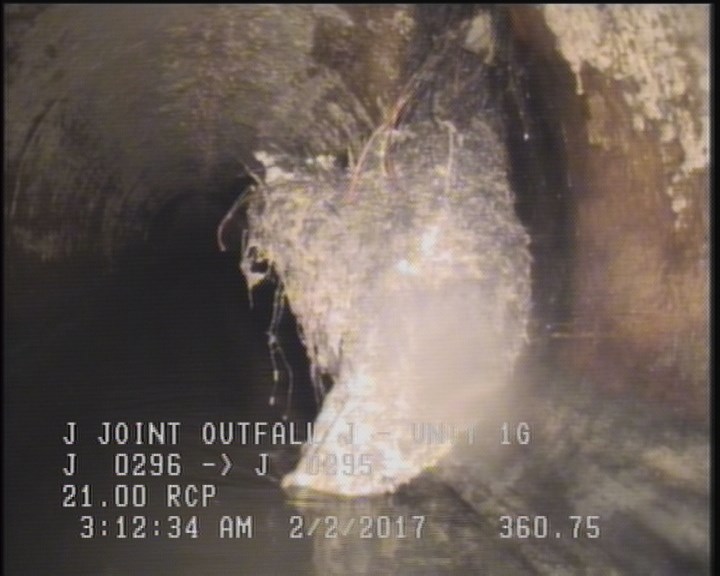

  • General Photograph

    360.8 ft. - General Photograph

All inspections of P11537Work order 619078

Observations (18)

DistanceCodeObservation
2.9SAV—
410.4DAGS—
410.4MGOMAGNEZIUM H.O. FINISH
0MWM—
360.8MGP—
42.4TBA—
207.7TFA—
244.4TBA—
202.3RFJ—
48.1TFC—
361.9TBA—
0AMHJ 0296
412.1AMHJ 0295
2.9DAGS—
0MWL—
2.9MGOMAGNESIUM H.O. START
410.4SAV—
244.8MGP—

Properties (6)

additional_info
SC318645
custom_field_two
5
customer
LACSD
datetime
2017-02-02T02:57:46-08:00
documentation
PRO PIPE
is_lateral_inspection
false
