Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 1, 2017, 09:09 AM

  • Section#2_18 1073_18 1007__Date (SI_Date)__SI_Preset.mp4

Date
03/01/2017
W/O
0624436
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00682
PipeID
P14932
Time
1:09 AM
Certificate
U115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6768
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 5
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
20170301VMR_AL_HABRA_HEIGHTS_TRUNK_SEC_5
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
18 1073
Downstream MH
18 1007
Dir. of Survey
Downstream
Length Surveyed
216.7 ft.
Total Length
216.7 ft.
Structural Index
1
Structural Quick
3124
Structural Rating
22
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
1
Overall Quick
—
Overall Rating
25
Pipe schematic from manhole 18 1073 to 18 1007
MH: 18 1073MH: 18 1007downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01:34 AM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area10.8 ft. CC - Crack Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES37.8 ft. CC - Crack Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES37.8 ft. RFC - Roots Fine Connection, from 09 to 03 o'clock, within 8 inches of joint: YES38.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN55.6 ft. CC - Crack Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES78.9 ft. RTJ - Roots Tap Joint, from 07 to 12 o'clock, 5 %, within 8 inches of joint: YESR85.8 ft. CC - Crack Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES110 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES134.4 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES143.5 ft. CC - Crack Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES165.1 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES180.1 ft. CC - Crack Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES192 ft. CC - Crack Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES198 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES203.9 ft. CC - Crack Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES207 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES207.1 ft. CC - Crack Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES210.2 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES215.4 ft. CC - Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES216.7 ft. AMH - Downstream Manhole, Survey Ends - 3:40 AM

Observation photos (2)

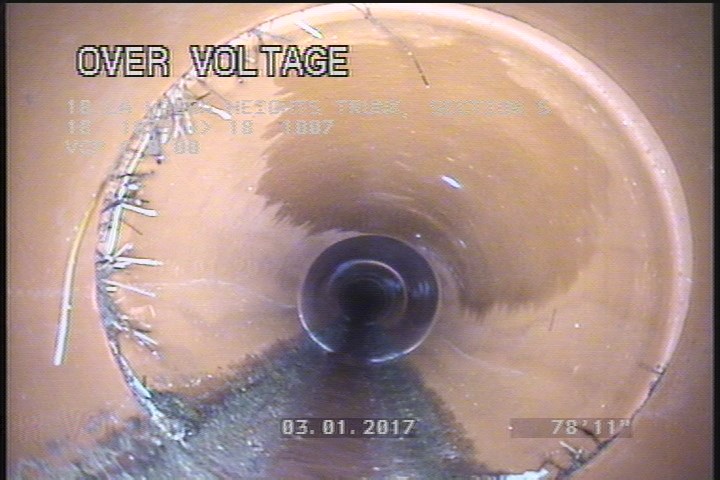

  • Roots Tap Joint, from 07 to 12 o'clock, 5 %, within 8 inches of joint: YESR

    78.9 ft. - Roots Tap Joint, from 07 to 12 o'clock, 5 %, within 8 inches of joint: YESR

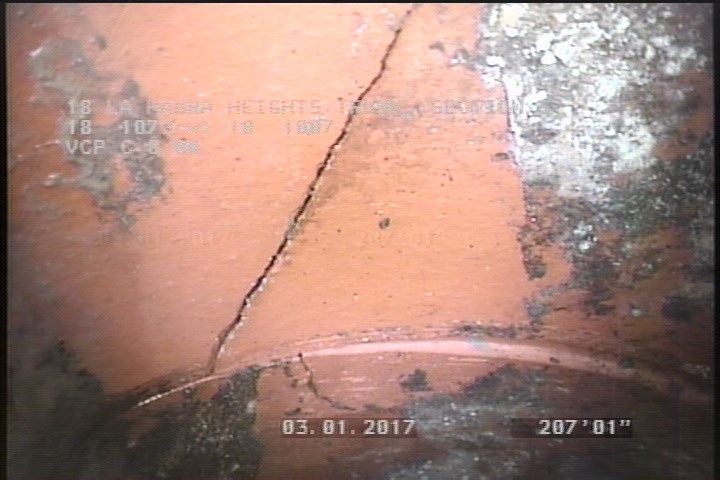

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    207 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P14932Work order 0624436

Observations (23)

DistanceCodeObservation
0AMH01:34 AM
143.5CC—
180.1CC—
78.9RTJ—
165.1CC—
207.1CC—
55.6CC—
37.8CC—
38.8TFOPEN
85.8CC—
37.8RFC—
10.8CC—
203.9CC—
134.4CL—
110CL—
198CM—
207CL—
0MWL—
215.4CC—
210.2CL—
216.7AMH3:40 AM
0MWM—
192CC—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2017-03-01T01:09:52-08:00
documentation
REVELES, MANANES, OLIVER III
is_lateral_inspection
false
