Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 27, 2017, 05:37 PM

  • B 0237_B 0236_2272017_094319.mp4

Date
02/27/2017
W/O
0626070
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00077
PipeID
P08705
Time
9:37 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7341/G7342
Sewer Name
B JOINT OUTFALL B - UNIT 1E
City
MONTEBELLO
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
11
Purpose
Maintenance Related
Project
20170224DF_JOINT_OUTFALL_B_UNIT_1E
Material
NRCP
Shape
Circular
Height
21 in.
Upstream MH
B 0236
Downstream MH
B 0237
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole B 0236 to B 0237
MH: B 0236MH: B 0237upstream0 ft. MSA - Survey Abandoned - VIEW OF THE UPLEG PIPE OF THE DOWNSTREAM SIPHON0.1 ft. LU - Alignment Up, 45 %0.1 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES0.1 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES2.1 ft. AMH - Upstream Manhole, Survey Begins - 9:37 AM2.1 ft. MWL - Water Level, 100 %of cross sectional area

Observation photos (2)

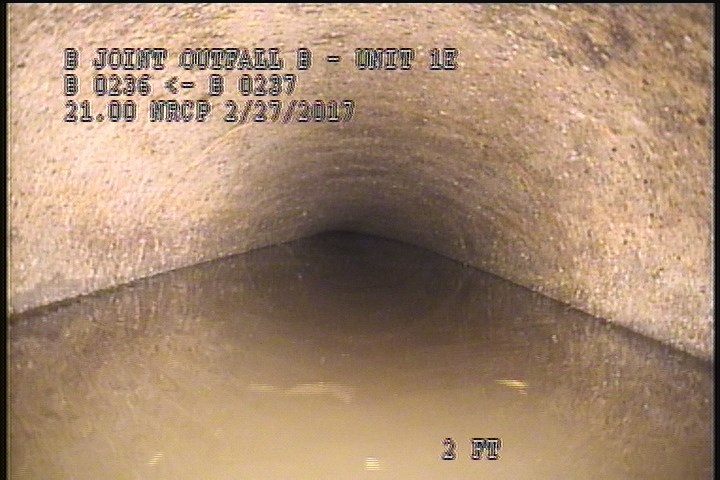

  • Upstream Manhole, Survey Begins - 9:37 AM

    0 ft. - Upstream Manhole, Survey Begins - 9:37 AM

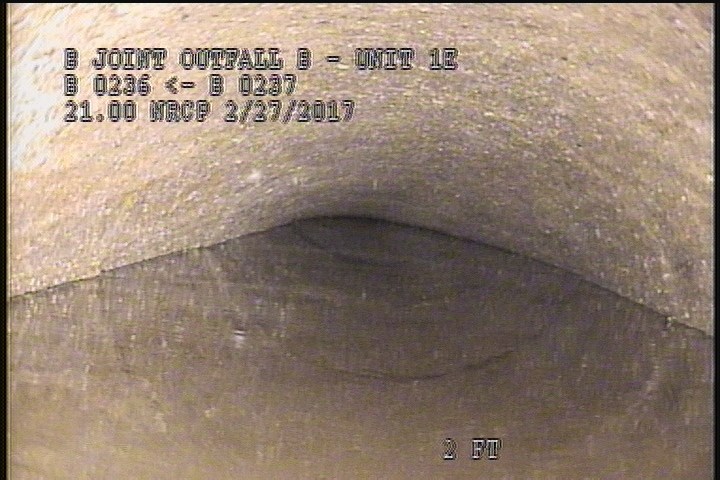

  • Water Level, 100 %of cross sectional area

    0 ft. - Water Level, 100 %of cross sectional area

All inspections of P08705Work order 0626070

Observations (6)

DistanceCodeObservation
0AMH9:37 AM
0MWL—
2LU—
2SSS—
2SAV—
2.1MSAVIEW OF THE UPLEG PIPE OF THE DOWNSTREAM SIPHON

Properties (6)

additional_info
VIEW OF THE UPLEG PIPE OF THE DOWNSTREAM SIPHON
custom_field_two
3
customer
LACSD
datetime
2017-02-27T09:37:05-08:00
documentation
FRANKLIN, MIRANDA, BRAR, SHADLER
is_lateral_inspection
false
