Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 22, 2016, 08:30 AM

  • D 0212_05 1032_2222016_011022.mp4

Date
02/22/2016
W/O
0547080
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00424
PipeID
P06267
Time
12:30 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0061
Sewer Name
05 AVIATION BOULEVARD RELIEF TRUNK
City
HAWTHORNE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
20160219MDM_AVIATION_BOULEVARD_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 1032
Downstream MH
D 0212
Dir. of Survey
Upstream
Length Surveyed
9.9 ft.
Total Length
9.9 ft.
Structural Index
2
Structural Quick
2300
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 1032 to D 0212
MH: 05 1032MH: D 0212upstream0 ft. AMH - Downstream Manhole, Survey Ends - 1:10AM0.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - PEELING BLISTERING LAITANCE COAT7.9 ft. MGO - General Observation - ZOOM 9'7.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO7.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT7.9 ft. MGO - General Observation - PARTIAL STOPLOG IN PLACE DOWNSTREAM7.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING9.9 ft. MWL - Water Level, 5 %of cross sectional area - FLOW IS UPSTREAM9.9 ft. AMH - Downstream Manhole, Survey Begins - 12:30AM9.9 ft. MGO - General Observation - MH CONN 3:00 OPEN NO FLOW9.9 ft. MWM - Water Mark, 20 %of cross sectional area9.9 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active

Observation photos (5)

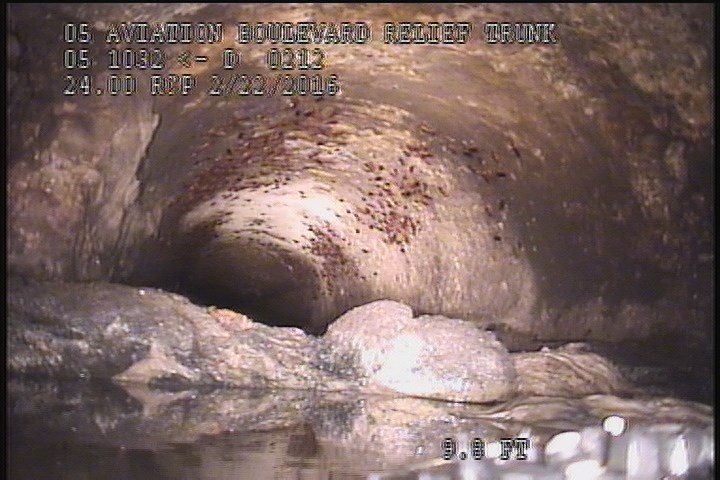

  • General Observation - MH CONN 3:00 OPEN NO FLOW

    0 ft. - General Observation - MH CONN 3:00 OPEN NO FLOW

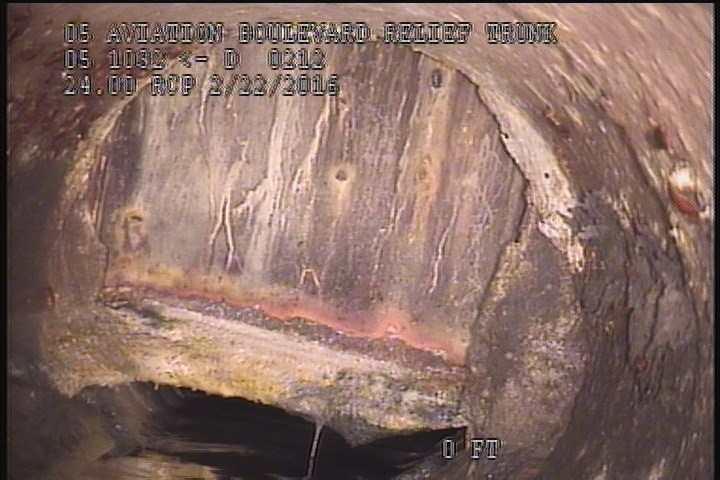

  • General Observation - ZOOM 9'

    2 ft. - General Observation - ZOOM 9'

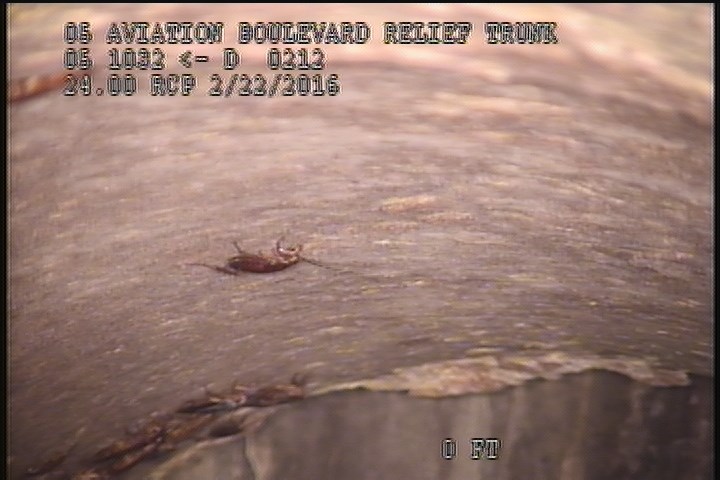

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO

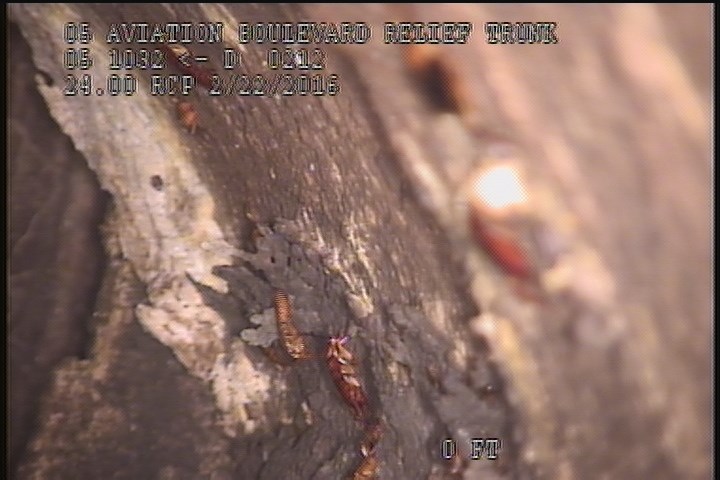

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

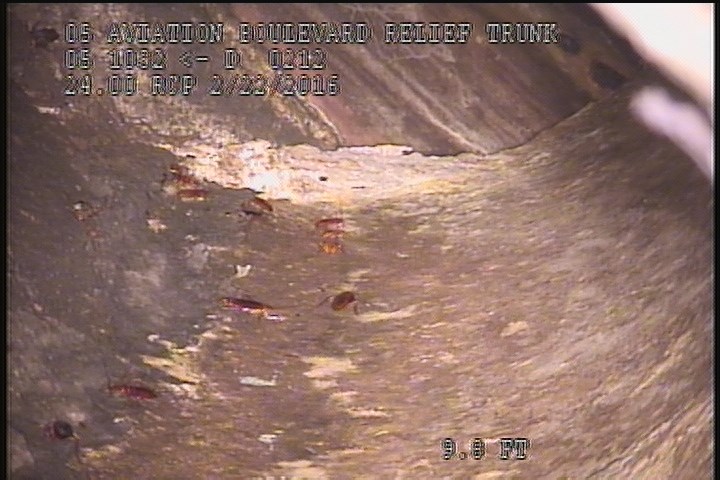

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING

All inspections of P06267Work order 0547080

Observations (12)

DistanceCodeObservation
0MWLFLOW IS UPSTREAM
0AMH12:30AM
2MGOZOOM 9'
2SSS—
9.9AMH1:10AM
9.2SSSPEELING BLISTERING LAITANCE COAT
0MGOMH CONN 3:00 OPEN NO FLOW
0MWM—
2SSSPEELING LAITANCE COAT
0MGOConn. @ Mh, 9 O' Clock. Active
2MGOPARTIAL STOPLOG IN PLACE DOWNSTREAM
2SSSLAITANCE COAT PEELING BLISTERING

Properties (6)

custom_field_three
SPALLING LAITANCE COAT
custom_field_two
4
customer
LACSD
datetime
2016-02-22T00:30:00-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
