Wastewater/Activity/PacpInspection/1.0Feb 18, 2016, 08:53 AM
05 2566_05 2565_2182016_020517.mp4
- Date
- 02/18/2016
- W/O
- 0547039
- Weather
- Light Rain
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01131
- PipeID
- P25267
- Time
- 12:53 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0057
- Sewer Name
- 05 COLDEN AVENUE RELIEF TRUNK
- City
- HUNTINGTON PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 11A
- Purpose
- Routine Assessment
- Project
- 20160216MDM_COLDEN_AVENUE_RELIEF_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 05 2565
- Downstream MH
- 05 2566
- Dir. of Survey
- Upstream
- Length Surveyed
- 3 ft.
- Total Length
- 3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4200
- O&M Rating
- 8
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

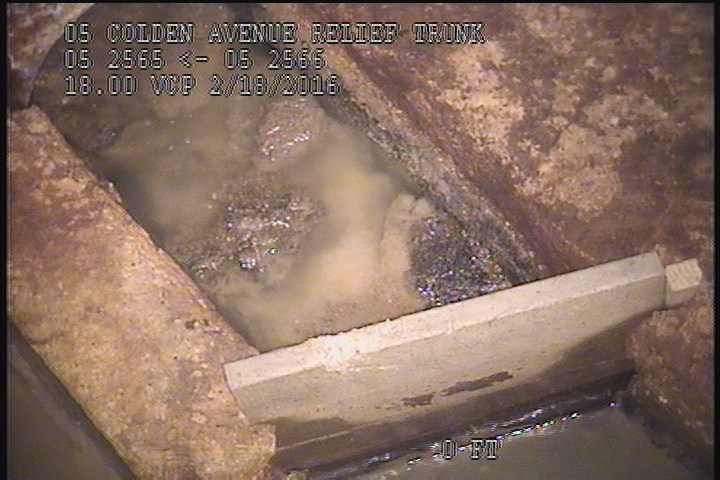

0 ft. - Water Level, 50 %of cross sectional area - NO FLOW STOPLOG IN PLACE

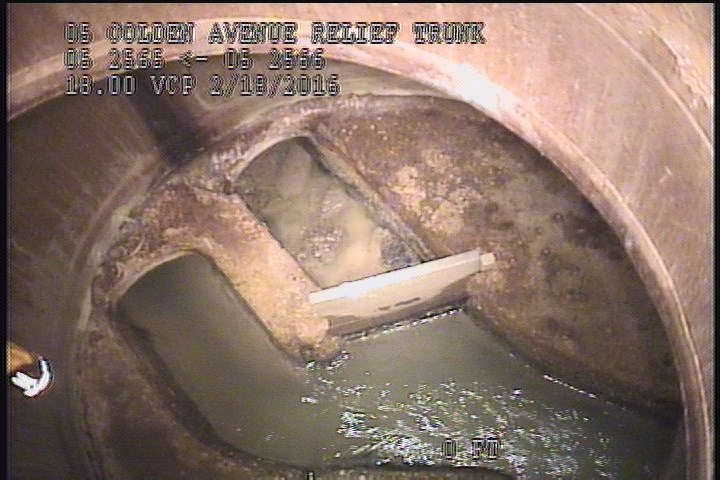

0 ft. - Water Mark, 50 %of cross sectional area

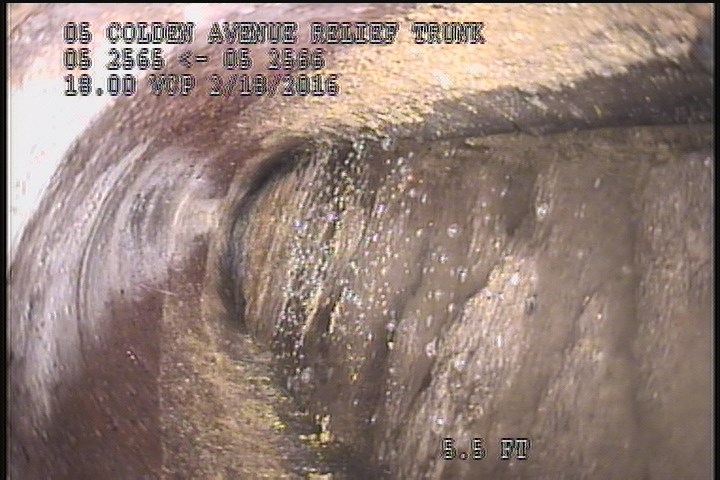

2 ft. - Deposits Settled Other, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - SLUDGE

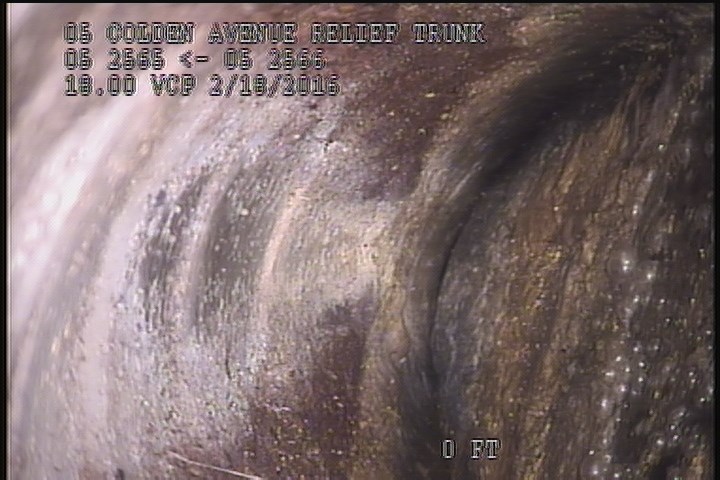

3 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON NORTH
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 3 | MSA | UPLEG DOWNSTREAM SIPHON NORTH |
| 2 | DSZ | SLUDGE |
| 0 | AMH | 1:50AM |
| 0 | MWL | NO FLOW STOPLOG IN PLACE |
| 0 | MWM | — |
Properties (6)
- additional_info
- UPLEG DOWNSTREAM SIPHON NORTH
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-18T00:53:24-08:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
