Wastewater/Activity/PacpInspection/1.0Feb 12, 2016, 04:48 PM
- Date
- 02/12/2016
- W/O
- 0547092
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00371
- PipeID
- P05285
- Time
- 8:48 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0052
- Sewer Name
- 03 MARINA TRUNK, SECTION 2
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- 20160212SHO_MARINA_TRUNK_SECTION_2
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 03 0388
- Downstream MH
- MARINA RLF TRNK
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.2 ft.
- Total Length
- 2.2 ft.
- Structural Index
- 3
- Structural Quick
- 4131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

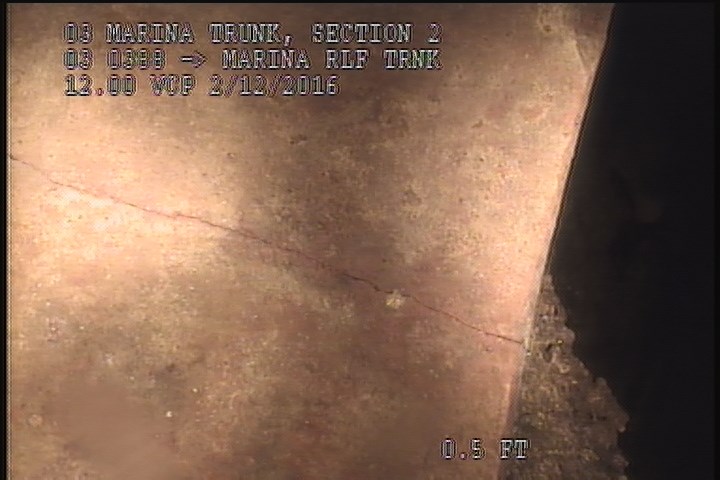

1.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

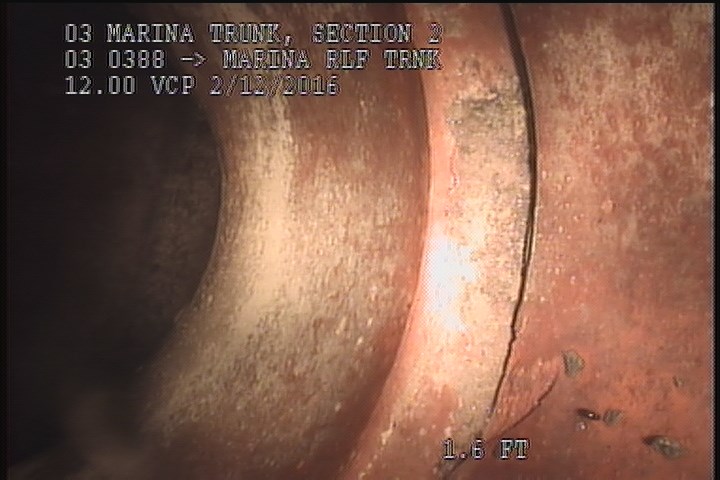

1.6 ft. - Joint Offset Medium

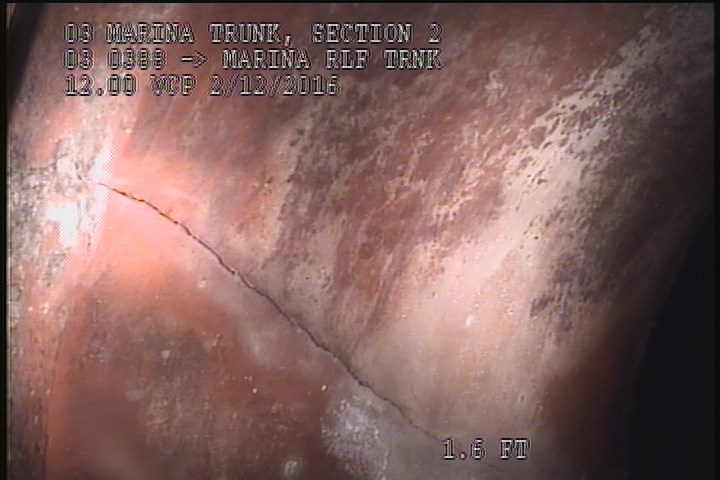

2 ft. - Crack Longitudinal Hinge, 2, from 09 to 04 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 1.5 | CM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 2.2 | AMH | 0910 |
| 0 | AMH | 0900 |
| 1.6 | JOM | — |
| 2 | CH2 | — |
Properties (6)
- custom_field_three
- HINGE CRACK AND OFFSET JOINT
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-02-12T08:48:06-08:00
- documentation
- OBREGON, MIRABEL, FRANKLIN
- is_lateral_inspection
- false
