Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 12, 2016, 09:18 PM

  • 29 0424_29 0423_2122016_132125.mp4

Date
02/12/2016
W/O
0547103
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00989
PipeID
P24461
Time
1:18 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0053
Sewer Name
29 LEWIS AVENUE SEWER
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20160212SHO_LEWIS_AVENUE_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0423
Downstream MH
29 0424
Dir. of Survey
Upstream
Length Surveyed
323.8 ft.
Total Length
323.8 ft.
Structural Index
2
Structural Quick
3223
Structural Rating
12
O&M Index
2
O&M Quick
2212
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 29 0423 to 29 0424
MH: 29 0423MH: 29 0424upstream0 ft. AMH - Upstream Manhole, Survey Ends - 140038.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"43 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"73.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"76 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open130.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open132.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open181.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open184.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"200.4 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES210.5 ft. RTJ - Roots Tap Joint, from 07 to 08 o'clock, 5 %, within 8 inches of joint: YESR213.3 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES235.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open250.3 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - ROOTS256.1 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR263.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES269.6 ft. RFJ - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YESR295 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES315.8 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES323.8 ft. MWM - Water Mark, 20 %of cross sectional area323.8 ft. AMH - Downstream Manhole, Survey Begins - 1315323.8 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (6)

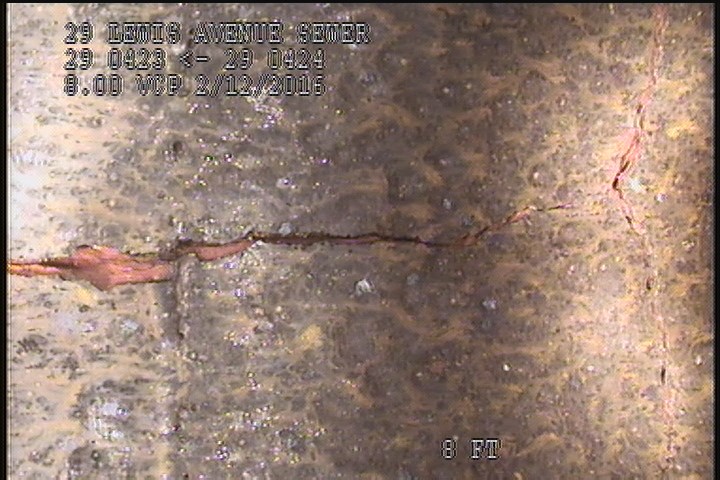

  • Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

    8 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

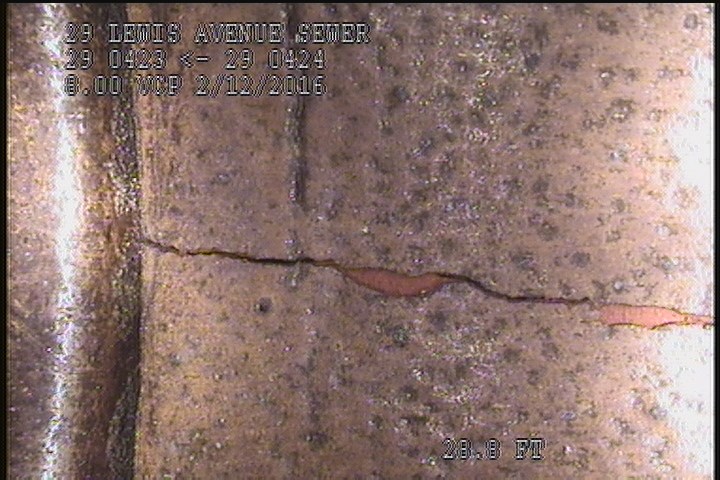

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    28.8 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

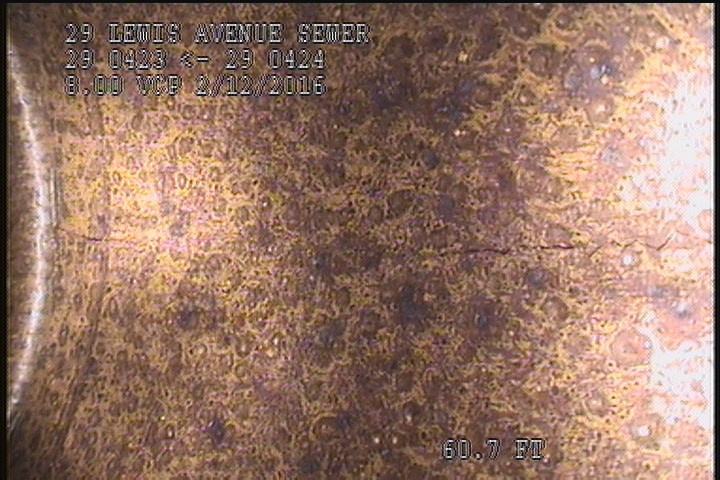

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    60.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

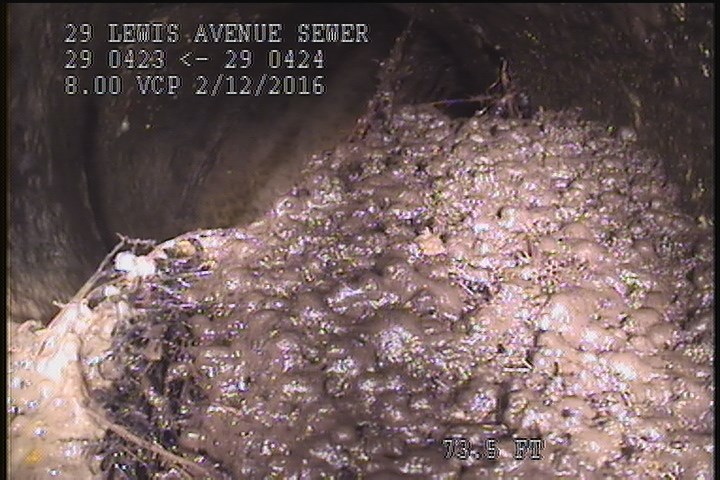

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - ROOTS

    73.5 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - ROOTS

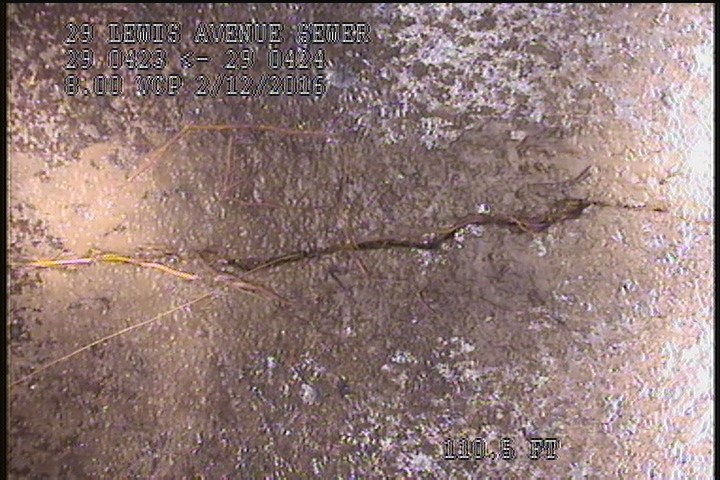

  • Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

    110.5 ft. - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

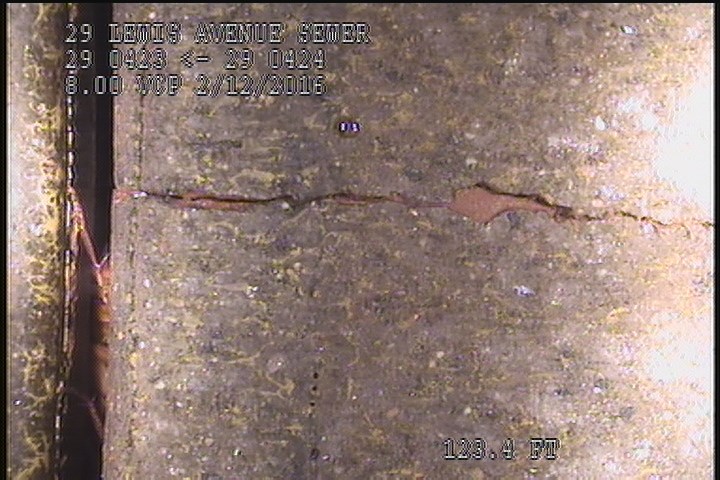

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    123.4 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

All inspections of P24461Work order 0547103

Observations (22)

DistanceCodeObservation
280.8TFA—
191.2TFOpen
73.5TFDROOTS
142.3TFOpen
60.7CL—
0MWM—
285.2TF—
193.5TFOpen
323.8AMH1400
28.8CL—
110.5CM—
54.2RFJ—
88TFOpen
0AMH1315
139.5TF—
8CM—
113.3RTJ—
67.7RFJ—
123.4CL—
0MWL—
250.6TF—
247.8TFOpen

Properties (6)

custom_field_three
FEW CRACKS
custom_field_two
4
customer
LACSD
datetime
2016-02-12T13:18:13-08:00
documentation
OBREGON, MIRABEL, FRANKLIN
is_lateral_inspection
false
