Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 11, 2016, 08:34 AM

  • A 0308_A 0307_2112016_014430.mp4

Date
02/11/2016
W/O
0556813
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00325
PipeID
P08218
Time
12:34 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0049
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
29
Purpose
Routine Assessment
Project
20160211MDM_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Upstream MH
A 0307
Downstream MH
A 0308
Dir. of Survey
Upstream
Length Surveyed
6.9 ft.
Total Length
6.9 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole A 0307 to A 0308
MH: A 0307MH: A 0308upstream0 ft. MSA - Survey Abandoned - UPLEG DOWNSTREAM SIPHON0.9 ft. MGO - General Observation - PEELING MASTIC JOINT EXPOSED0.9 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish2.9 ft. MGO - General Observation - HANGING MASTIC4.9 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING CONCRETE6.9 ft. MWM - Water Mark, 60 %of cross sectional area6.9 ft. MWL - Water Level, 50 %of cross sectional area6.9 ft. AMH - Downstream Manhole, Survey Begins - 1:10AM

Observation photos (5)

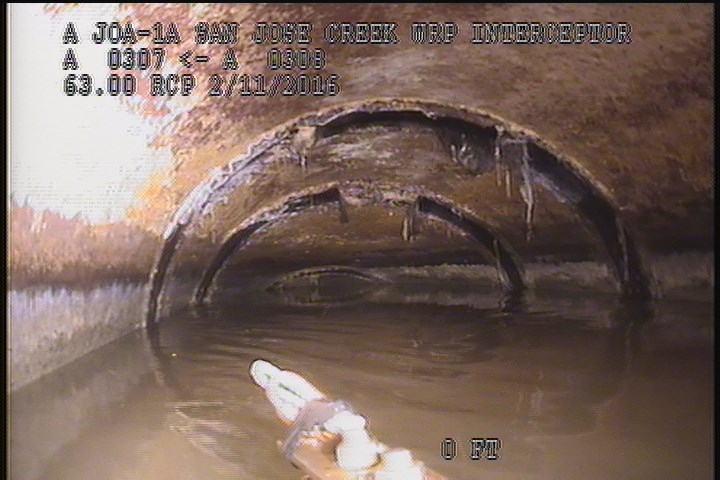

  • Water Mark, 60 %of cross sectional area

    0 ft. - Water Mark, 60 %of cross sectional area

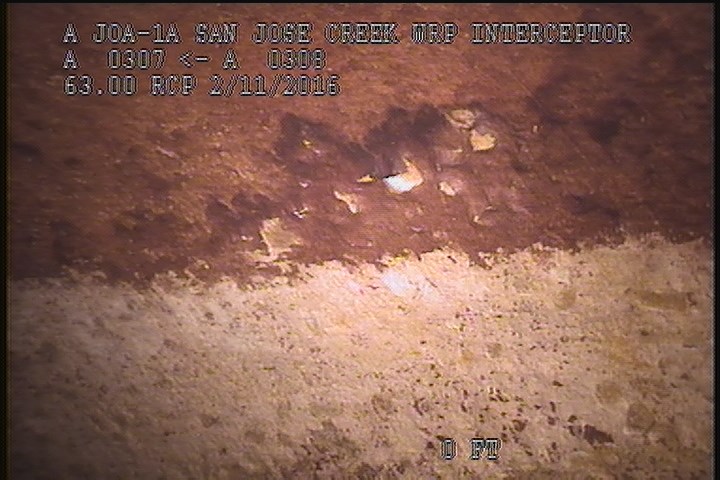

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING CONCRETE

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING CONCRETE

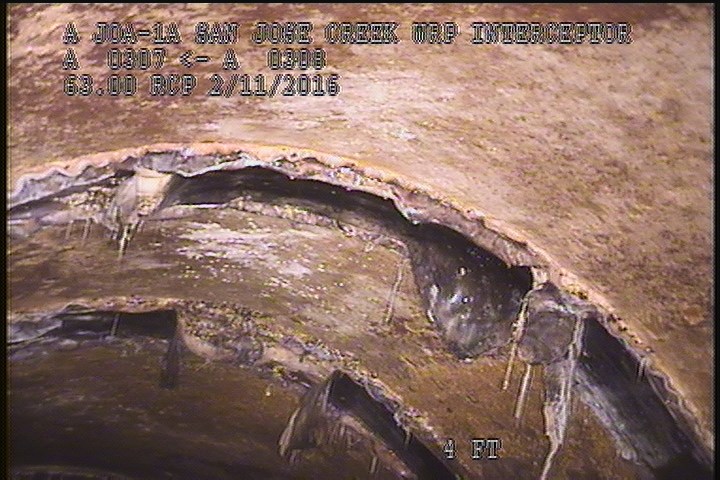

  • General Observation - HANGING MASTIC

    4 ft. - General Observation - HANGING MASTIC

  • General Observation - PEELING MASTIC JOINT EXPOSED

    6 ft. - General Observation - PEELING MASTIC JOINT EXPOSED

  • Survey Abandoned - UPLEG DOWNSTREAM SIPHON

    6.9 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON

All inspections of P08218Work order 0556813

Observations (8)

DistanceCodeObservation
2SSSPEELING BLISTERING CONCRETE
0MWM—
6MGOPEELING MASTIC JOINT EXPOSED
0MWL—
0AMH1:10AM
4MGOHANGING MASTIC
6.9MSAUPLEG DOWNSTREAM SIPHON
6SSS—

Properties (7)

additional_info
UPLEG DOWNSTREAM SIPHON
custom_field_three
SPALLING LAITANCE COAT
custom_field_two
4
customer
LACSD
datetime
2016-02-11T00:34:23-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
