Wastewater/Activity/PacpInspection/1.0Feb 4, 2016, 07:24 PM
A 0638_A 0637_242016_113233.mp4
- Date
- 02/04/2016
- W/O
- 0536342
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00316
- PipeID
- P07843
- Time
- 11:24 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7045
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 34
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160204AM_JOA_1A_DISTRICT_21_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 45 in.
- Upstream MH
- A 0637
- Downstream MH
- A 0638
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (6)

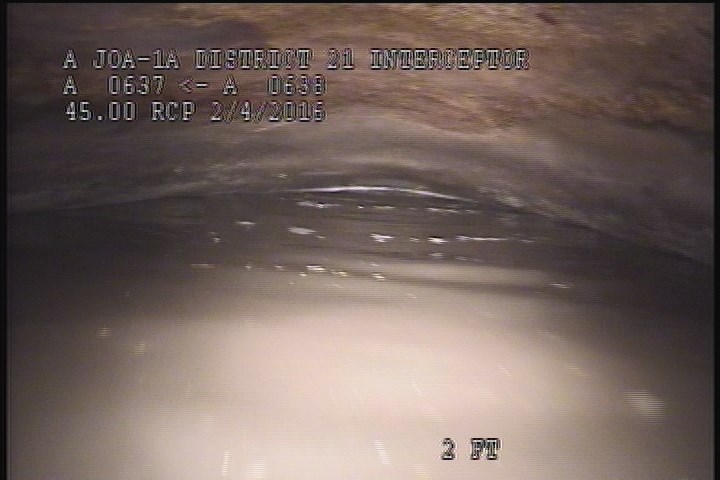

0 ft. - Downstream Manhole, Survey Begins - 11:30 AM

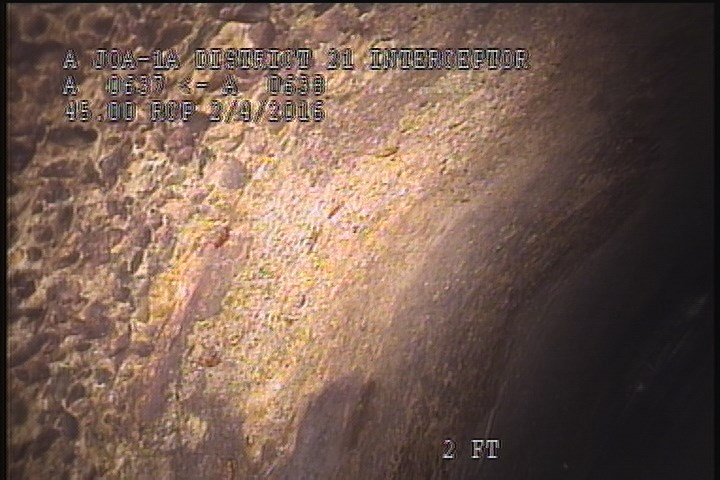

0 ft. - Water Level, 100 %of cross sectional area

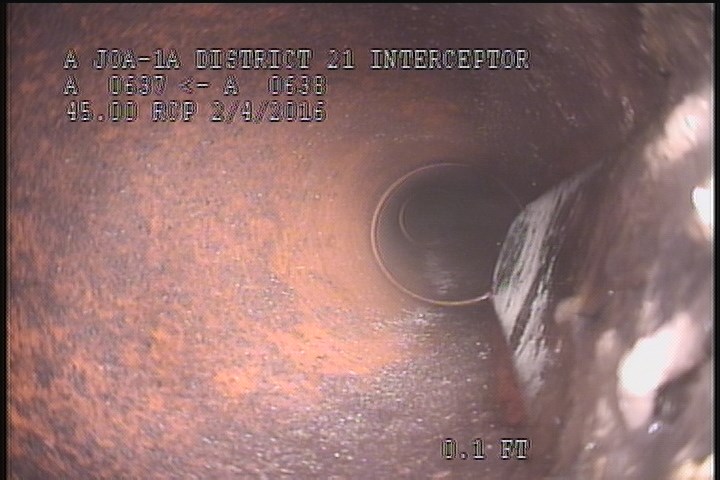

0 ft. - General Observation - AIRLINE

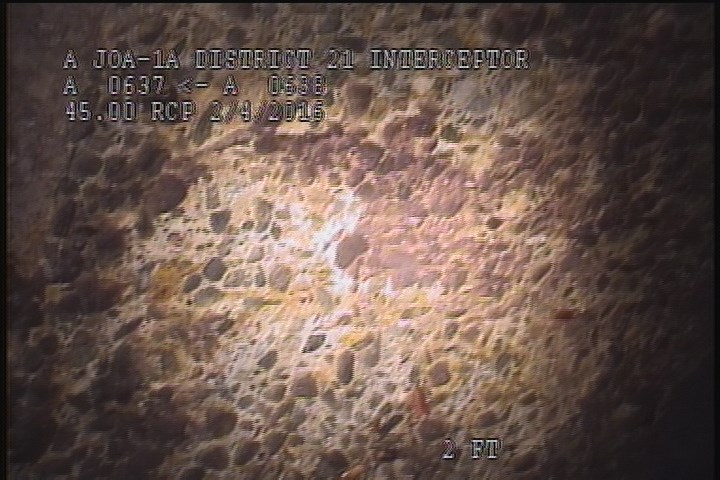

2 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO

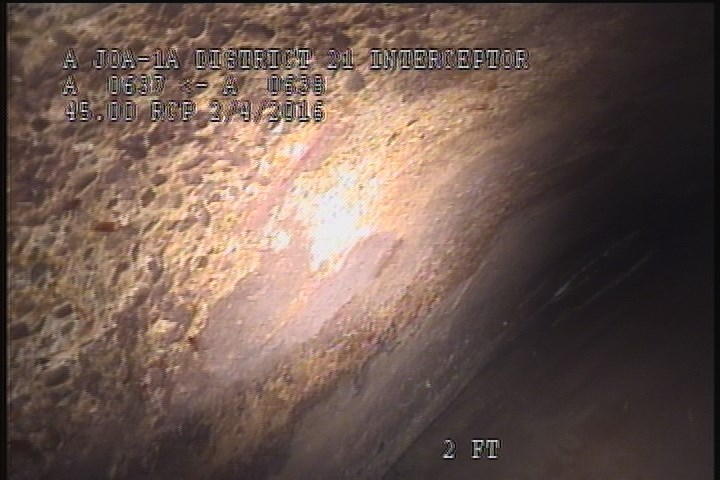

2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO

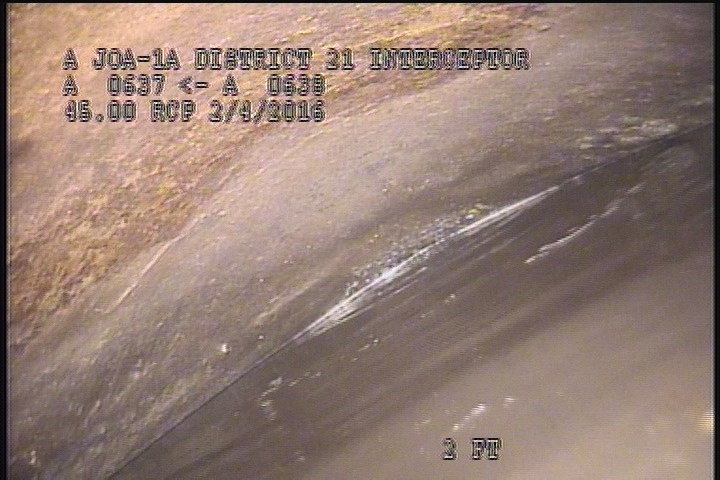

2.1 ft. - Survey Abandoned - VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAV | — |
| 0 | AMH | 11:30 AM |
| 2 | SSS | — |
| 0 | MWL | — |
| 2.1 | MSA | VIEW OF THE UPLEG PIPE OF THE D/S SIPHON |
| 0 | MGO | AIRLINE |
Properties (7)
- additional_info
- RFIR INSPECTION, VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
- custom_field_three
- SEV. EXP. AGG. AND SPALLING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-04T11:24:34-08:00
- documentation
- MIRANDA, SHADLER, MIRABAL
- is_lateral_inspection
- false
