Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 2, 2016, 05:48 PM

  • 05 0383_05 0382A_222016_105024.mp4

Date
02/02/2016
W/O
0536428
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00432
PipeID
P25936
Time
9:48 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7044
Sewer Name
05 DISTRICT #5 MAIN RELIEF TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Routine Assessment
Project
20160202AM_DISTRICT_5_MAIN_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
05 0383
Downstream MH
05 0382A
Dir. of Survey
Downstream
Length Surveyed
8.1 ft.
Total Length
8.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 05 0383 to 05 0382A
MH: 05 0383MH: 05 0382Adownstream0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:49 AM, ABANDONED MH.0 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start5 ft. MGO - General Observation - ROACHES INSIDE THE MH.5 ft. MGO - General Observation - SCAFFOLD ON TOP OF THE SHELVES5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish5 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK8.1 ft. AMH - Downstream Manhole, Survey Ends - 10:56 AM

Observation photos (6)

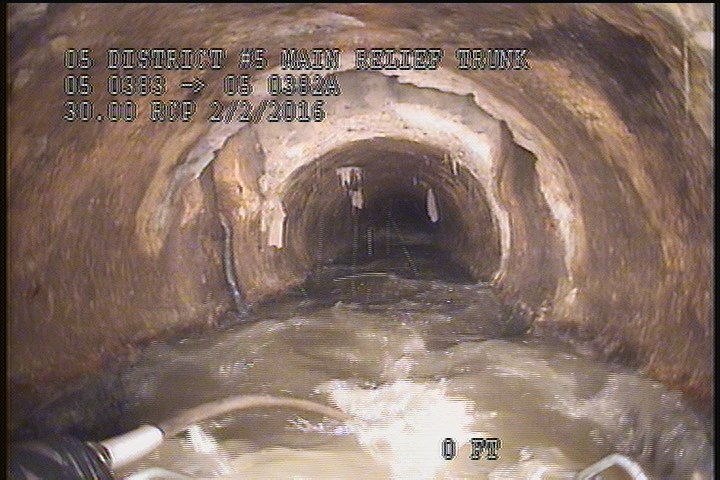

  • Water Level, 30 %of cross sectional area

    0 ft. - Water Level, 30 %of cross sectional area

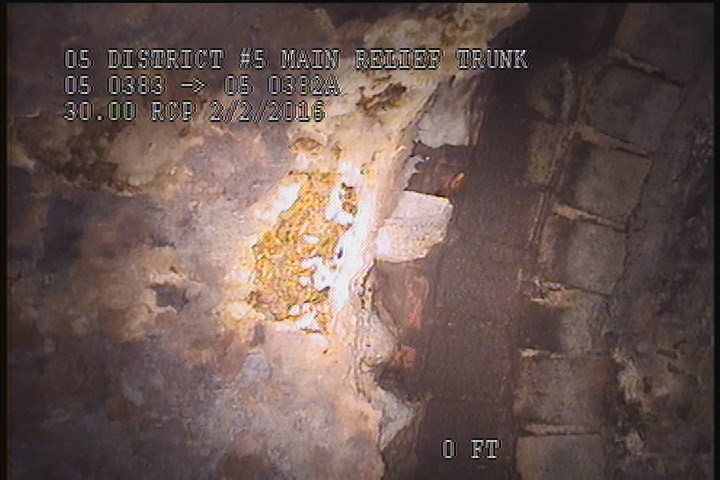

  • Upstream Manhole, Survey Begins - 10:49 AM, ABANDONED MH.

    0 ft. - Upstream Manhole, Survey Begins - 10:49 AM, ABANDONED MH.

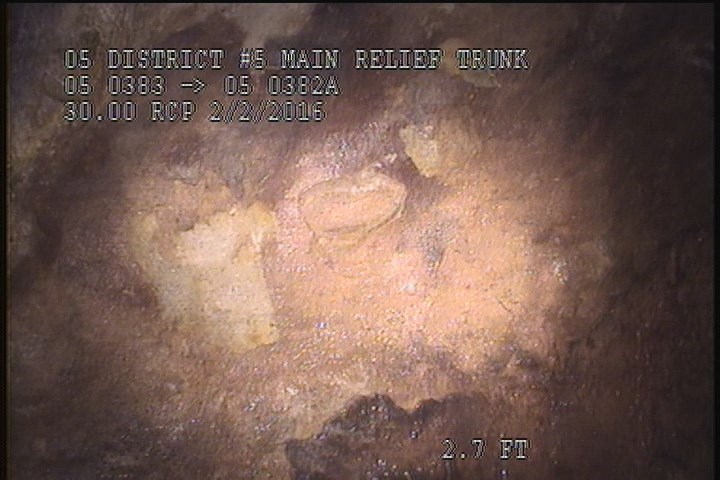

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

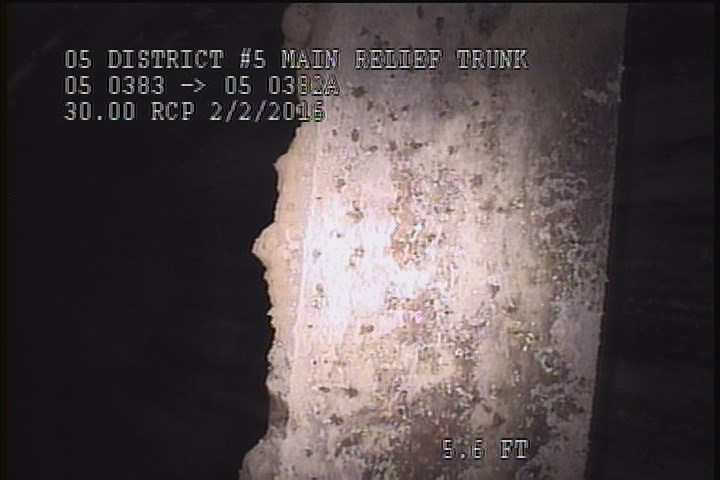

  • General Observation - ROACHES INSIDE THE MH.

    5 ft. - General Observation - ROACHES INSIDE THE MH.

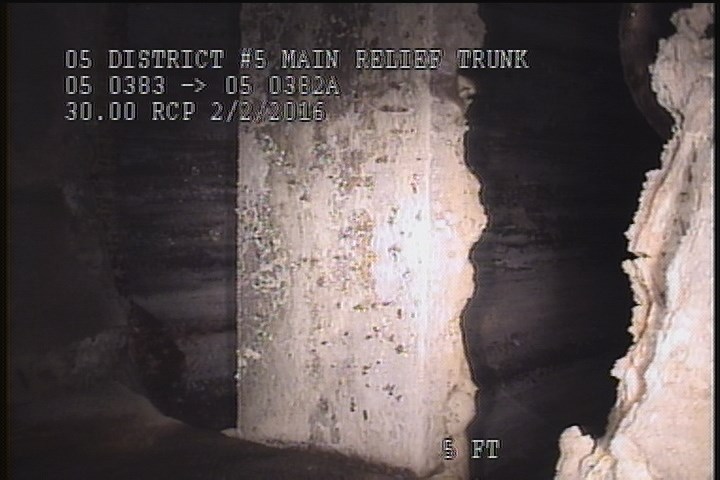

  • General Observation - SCAFFOLD ON TOP OF THE SHELVES

    5 ft. - General Observation - SCAFFOLD ON TOP OF THE SHELVES

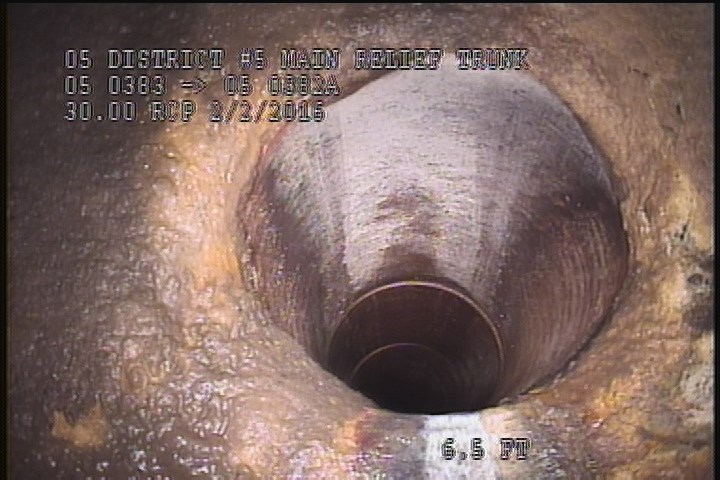

  • General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK

    5 ft. - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK

All inspections of P25936Work order 0536428

Observations (10)

DistanceCodeObservation
5MGOROACHES INSIDE THE MH.
8.1AMH10:56 AM
0MGOROACHES INSIDE THE MH.
0MWL—
5MGOSCAFFOLD ON TOP OF THE SHELVES
5SSS—
5MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
0AMH10:49 AM, ABANDONED MH.
2SSS—
0MWM—

Properties (6)

custom_field_three
SPALLING
custom_field_two
3
customer
LACSD
datetime
2016-02-02T09:48:26-08:00
documentation
MIRANDA, SHADLER, FRANKLIN, MIRABAL
is_lateral_inspection
false
