Wastewater/Activity/PacpInspection/1.0Jul 18, 2017, 05:22 AM
J 0474_J 0473 _07172017_222351.mp4
- Date
- 07/17/2017
- W/O
- 624549
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01108
- PipeID
- P22769
- Time
- 10:22 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4710
- Sewer Name
- J JOINT OUTFALL J - UNIT 1A REPLACEMENT
- City
- HARBOR CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_624549_TV05241_JUN2017
- Sewer Type
- Siphon
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- J 0474
- Downstream MH
- J 0473
- Dir. of Survey
- Downstream
- Length Surveyed
- 34.1 ft.
- Total Length
- 34.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2600
- O&M Rating
- 12
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (2)

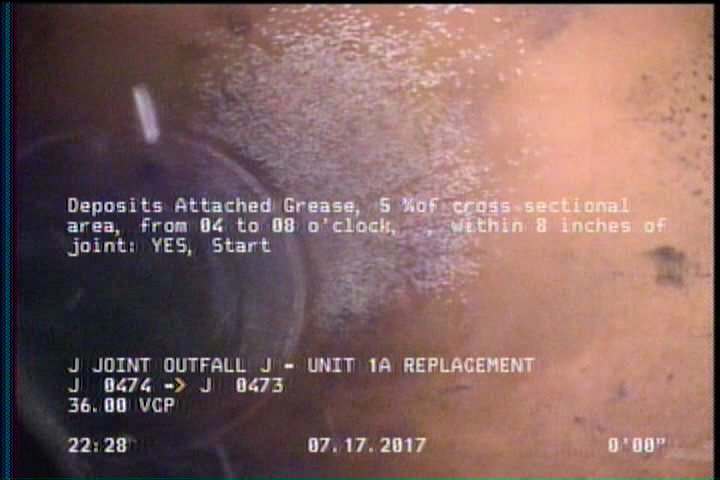

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

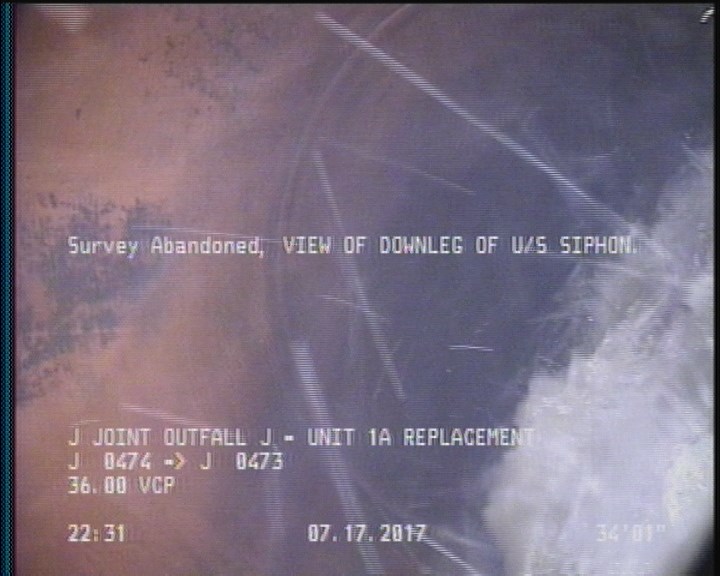

34.1 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SIPHON.
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 34.1 | DAGS | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | J 0474 |
| 34.1 | MSA | VIEW OF DOWNLEG OF U/S SIPHON. |
Properties (7)
- additional_info
- SC345443
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-17T22:22:04-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 36558
