Wastewater/Activity/PacpInspection/1.0Jul 20, 2017, 11:07 AM
J 0464_J 0463 _07202017_040759.mp4
- Date
- 07/20/2017
- W/O
- 624549
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01108
- PipeID
- P22759
- Time
- 4:07 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4714
- Sewer Name
- J JOINT OUTFALL J - UNIT 1A REPLACEMENT
- City
- HARBOR CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_624549_TV05241_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- J 0464
- Downstream MH
- J 0463
- Dir. of Survey
- Downstream
- Length Surveyed
- 97.9 ft.
- Total Length
- 97.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 40
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 40
Observation photos (2)

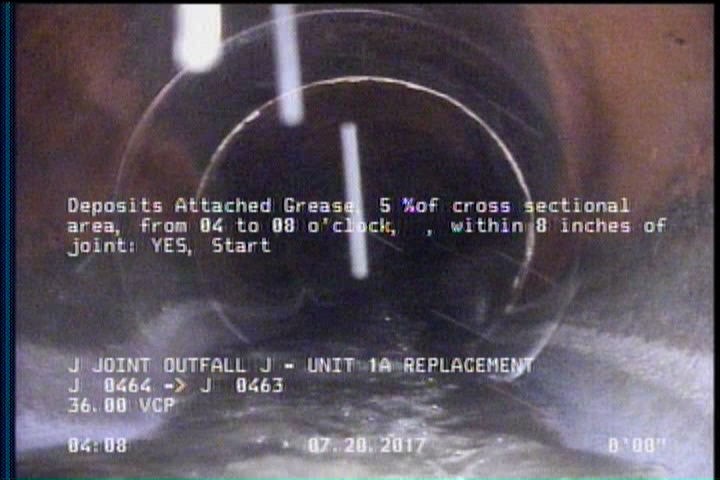

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

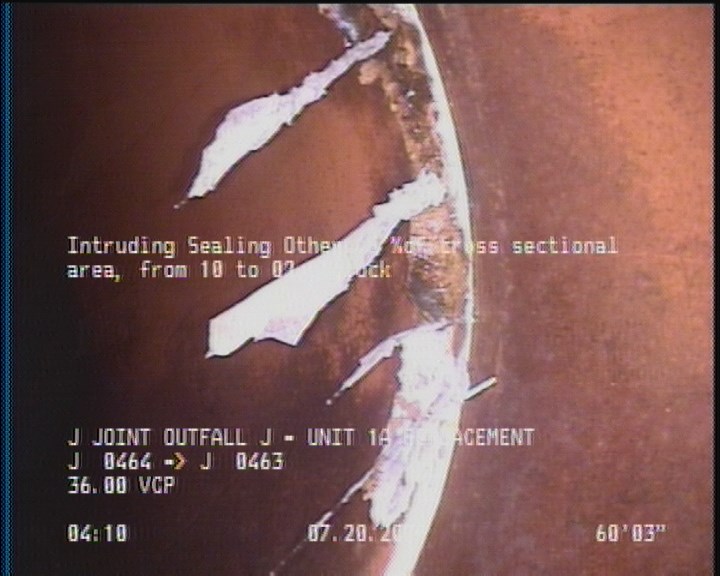

60.2 ft. - Intruding Sealing Other, 5 %of cross sectional area, from 10 to 02 o'clock
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 97.9 | MGO | ACTIVE CONNECTION AT MH 8 O'CLOCK |
| 0 | AMH | J 0464 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 97.9 | AMH | J 0463 |
| 97.9 | DAGS | — |
| 60.2 | ISZ | — |
Properties (7)
- additional_info
- SC345447
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-20T04:07:07-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 36558
