Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 2, 2016, 05:24 AM

  • 02 0111_02 0111_110116_225420.mp4

Date
11/01/2016
W/O
602602
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00237
PipeID
P02278
Time
10:24 PM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3754
Sewer Name
02 BELLFLOWER TRUNK
City
BELLFLOWER, CA
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
36
Purpose
Routine Assessment
Project
WO_602602_TV02019_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
02 0111
Downstream MH
02 0110
Dir. of Survey
Downstream
Length Surveyed
312.1 ft.
Total Length
312.2 ft.
Structural Index
3
Structural Quick
4238
Structural Rating
32
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
36
Pipe schematic from manhole 02 0111 to 02 0110
MH: 02 0111MH: 02 0110downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 01110 ft. MWL - Water Level, 5 %of cross sectional area2 ft. CM - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES6.1 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES20.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES26.7 ft. CM - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES38.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES52.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"74.8 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES75.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"82.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"100.8 ft. CM - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: NO102.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - W/ FRACTURES125.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - W/ CALCIUM152.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - W/ CALCIUM172.3 ft. CM - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES173.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"201.4 ft. FM - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES, 4ft203.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - W/ FRACTURES227 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"229.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4" - W/ CALCIUM249.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - W/ CALCIUM279.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"298.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start298.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES309.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish312.2 ft. AMH - Downstream Manhole, Survey Ends - 02 0110312.2 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (12)

  • Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

    2 ft. - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

    6.1 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

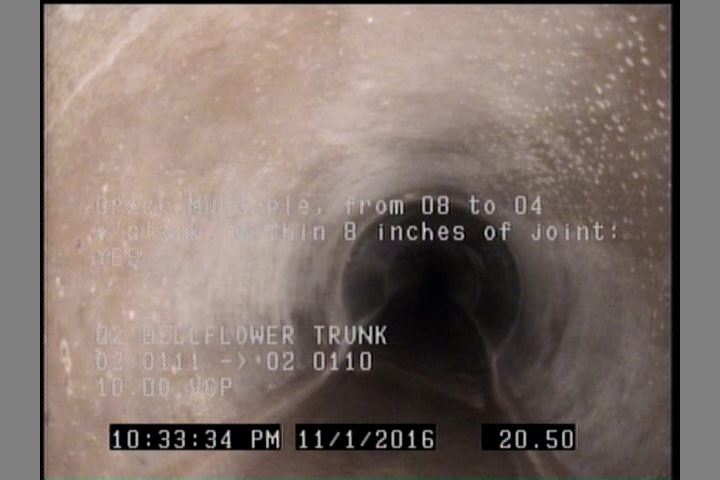

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    20.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

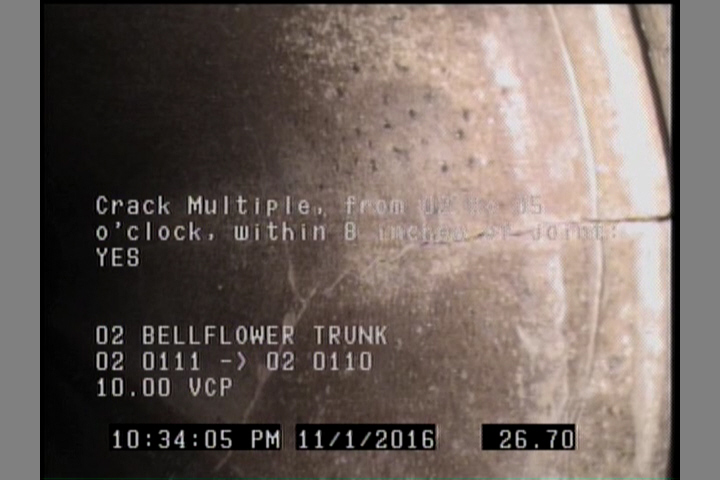

  • Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

    26.7 ft. - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

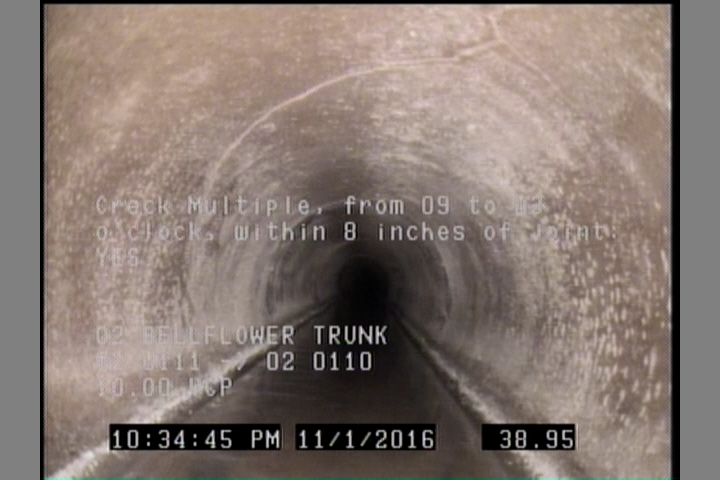

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    38.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

    74.8 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: NO

    100.8 ft. - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: NO

  • Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - W/ FRACTURES

    102.4 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - W/ FRACTURES

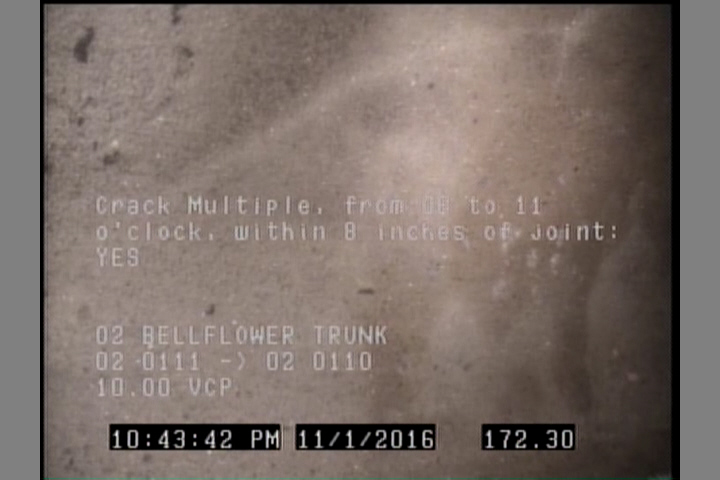

  • Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

    172.3 ft. - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES, 4ft

    201.4 ft. - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES, 4ft

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    298.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

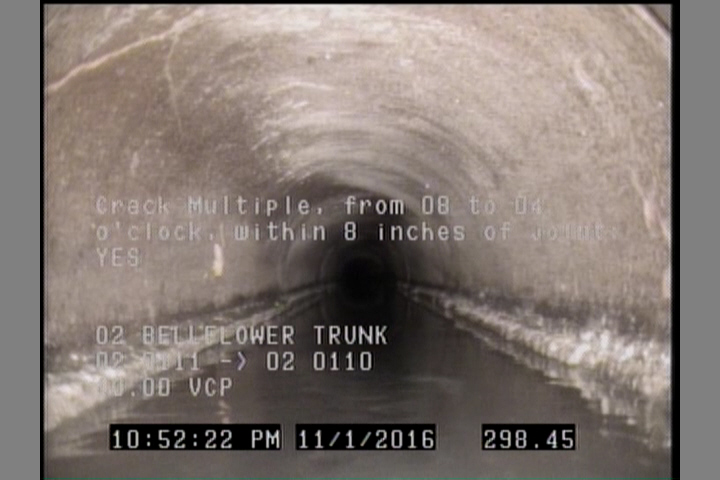

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    298.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P02278Work order 602602

Observations (29)

DistanceCodeObservation
2CM—
75.8TF—
227TFA—
229.2TFW/ CALCIUM
298.5DAGS—
201.4FM—
82.1TF—
100.8CM—
74.8FM—
0MWM—
125.9TFW/ CALCIUM
52.2TFA—
6.1CM—
20.5CM—
249.8TFW/ CALCIUM
26.7CM—
312.2AMH02 0110
309.5DAGS—
38.9CM—
102.4TFW/ FRACTURES
203.6TFW/ FRACTURES
279.9TFC—
152.7TFW/ CALCIUM
298.5CM—
0AMH02 0111
312.2MGOCONNECTION AT MH 9 O'CLOCK
173.5TF—
0MWL—
172.3CM—

Properties (6)

additional_info
SC303746
custom_field_two
2
customer
LACSD
datetime
2016-11-01T22:24:00-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
