Wastewater/Activity/PacpInspection/1.0Nov 23, 2016, 06:30 PM
05 2428_05 2427 _11232016_113348.mp4
- Date
- 11/23/2016
- W/O
- 602595
- Weather
- Very Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00509
- PipeID
- P07562
- Time
- 10:30 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3925
- Sewer Name
- 05 PRAIRIE AVENUE TRUNK
- City
- INGLEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_602595_TV05268_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 05 2428
- Downstream MH
- 05 2427
- Dir. of Survey
- Downstream
- Length Surveyed
- 220.6 ft.
- Total Length
- 220.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3200
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (1)

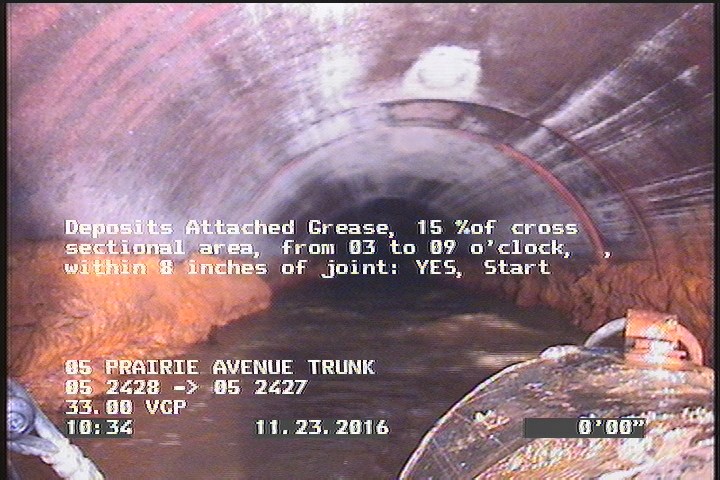

2 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 57.4 | DSGV | — |
| 220.6 | DSGV | — |
| 220.6 | MGO | DUE TO DEBRIS ON BOTTOM OF PIPE |
| 0 | MGO | LATERAL AT MH 9 O CLOCK |
| 0 | AMH | 05 2428 |
| 0 | MWM | — |
| 220.6 | MSA | DUE TO DEBRIS ON BOTTOM OF PIPE |
| 220.5 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC317668
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-11-23T10:30:00-08:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
