Wastewater/Activity/PacpInspection/1.0Nov 10, 2016, 10:08 AM
02 1817_02 1816 _10112016_020924.mp4
- Date
- 11/10/2016
- W/O
- 602593
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00236
- PipeID
- P04164
- Time
- 2:08 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3821
- Sewer Name
- 02 ATLANTIC AVENUE RELIEF TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_602593_TV02018_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1816
- Downstream MH
- 02 1817
- Dir. of Survey
- Upstream
- Length Surveyed
- 351.2 ft.
- Total Length
- 351.2 ft.
- Structural Index
- 3
- Structural Quick
- 3M21
- Structural Rating
- 209
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 209
Observation photos (3)

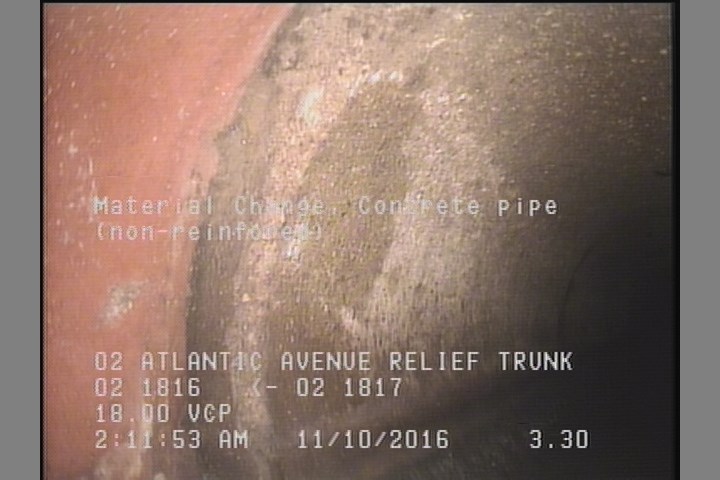

3.3 ft. - Material Change, Concrete pipe (non-reinfored)

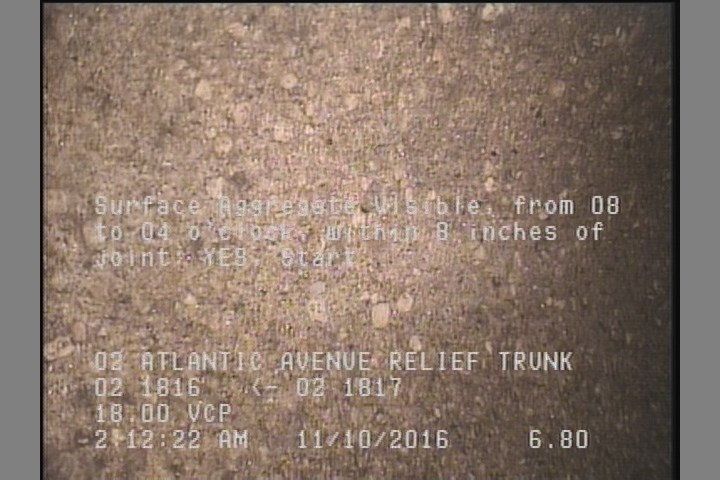

6.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

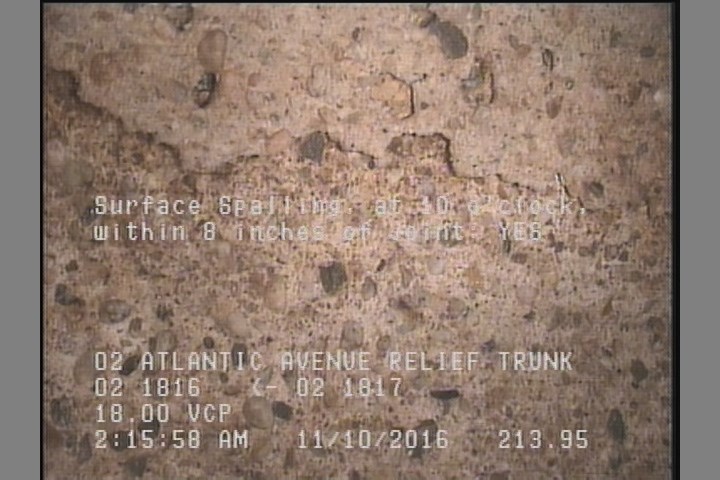

214 ft. - Surface Spalling, at 10 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 3.3 | MMC | — |
| 351.2 | SAV | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 351.2 | AMH | 02 1817 |
| 0 | AMH | 02 1816 |
| 6.8 | SAV | — |
| 214 | SSS | — |
Properties (6)
- additional_info
- SC304570
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-10T02:08:49-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
