Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 10, 2016, 06:35 AM

  • 02 1630_02 1629_09112016_223548.mp4

Date
11/09/2016
W/O
602593
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00235
PipeID
P04067
Time
10:35 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3821
Sewer Name
02 ATLANTIC AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
WO_602593_TV02018_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1630
Downstream MH
02 1629
Dir. of Survey
Downstream
Length Surveyed
254.3 ft.
Total Length
254.3 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
144
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
144
Pipe schematic from manhole 02 1630 to 02 1629
MH: 02 1630MH: 02 1629downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 16300 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area7.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start48.4 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 6"49.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"108.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"159.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"167.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"203.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"248.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish254.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK254.3 ft. AMH - Downstream Manhole, Survey Ends - 02 1629

Observation photos (2)

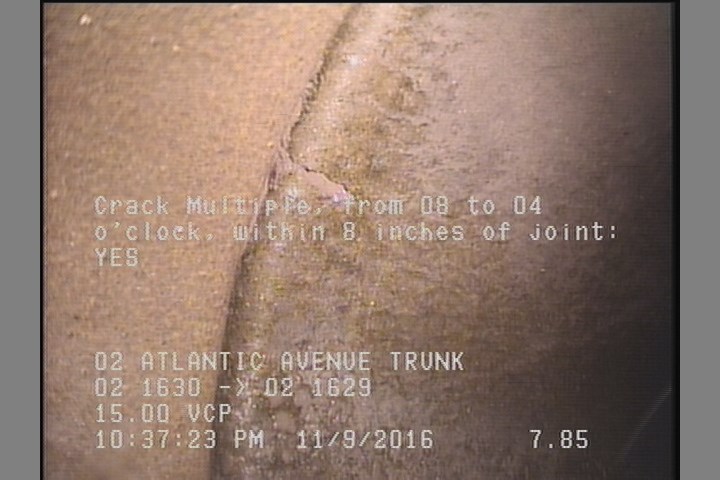

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

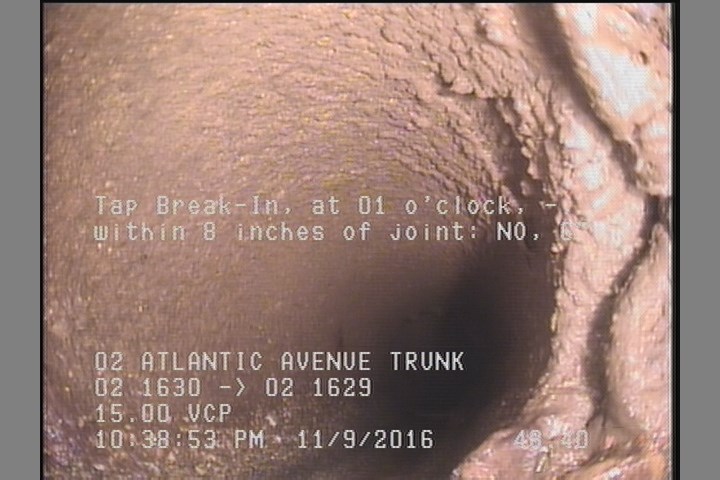

  • Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 6"

    48.4 ft. - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P04067Work order 602593

Observations (13)

DistanceCodeObservation
159.7TFA—
49.5TFC—
108.1TF—
0AMH02 1630
248.2CM—
0MWM—
167.4TFC—
203.7TFC—
0MWL—
48.4TB—
254.3MGOCONNECTION AT MH 3 O'CLOCK
254.3AMH02 1629
7.9CM—

Properties (6)

additional_info
SC304570
custom_field_two
3
customer
LACSD
datetime
2016-11-09T22:35:15-08:00
documentation
PROPIPE
is_lateral_inspection
false
