Wastewater/Activity/PacpInspection/1.0Feb 17, 2016, 07:59 AM
H 0618_H 0617_20160216_235811.mp4
- Date
- 02/16/2016
- W/O
- 552365
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00191
- PipeID
- P11036
- Time
- 11:59 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3149
- Sewer Name
- H JOINT OUTFALL H - UNIT 8H
- City
- BALDWIN PARK, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_552365_TV15175_FEB2016
- Sewer Type
- SIPHON
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- H 0618
- Downstream MH
- H 0617
- Dir. of Survey
- Downstream
- Length Surveyed
- 470.1 ft.
- Total Length
- 470.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2R00
- O&M Rating
- 186
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 186
Observation photos (2)

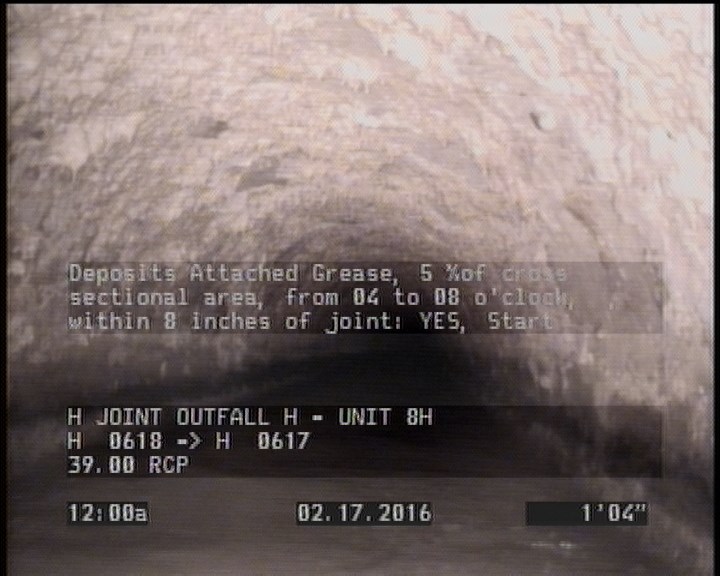

2 ft. - General Observation - MAGNESIUM H.O. START

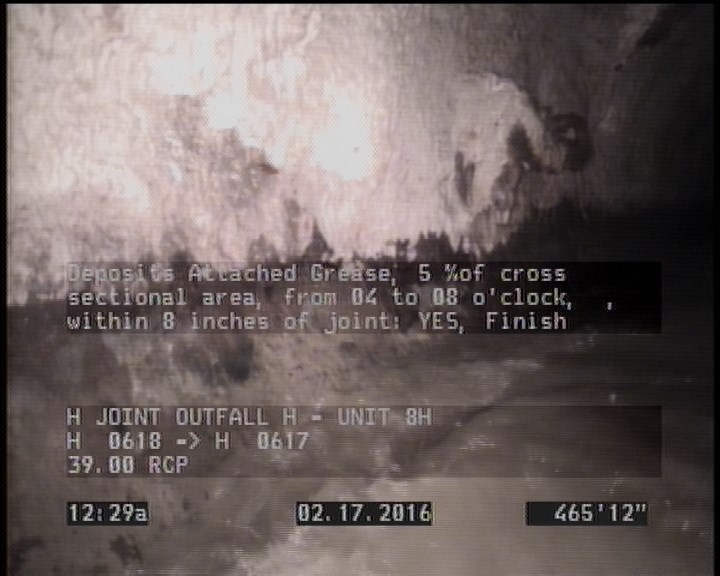

466 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 148.1 | TFA | — |
| 2 | MGO | MAGNESIUM H.O. START |
| 1.3 | DAGS | — |
| 358.7 | TFA | — |
| 0 | AMH | H 0618 |
| 470.1 | AMH | H 0617 |
| 0 | MWL | — |
| 0 | MWM | — |
| 466 | DAGS | — |
Properties (6)
- additional_info
- SC225536
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-16T23:59:00-08:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
