Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 25, 2016, 06:45 AM

  • 21 0946_21 0945A_20160225_000012.mp4

Date
02/24/2016
W/O
552362
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00760
PipeID
P16040
Time
10:45 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3207
Sewer Name
21 CLAREMONT OUTFALL TRUNK
City
CLAREMONT, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
07
Purpose
Routine Assessment
Project
WO_552362_TV210004_FEB2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
21 0946
Downstream MH
21 0945A
Dir. of Survey
Downstream
Length Surveyed
473.5 ft.
Total Length
473.5 ft.
Structural Index
3
Structural Quick
3Q21
Structural Rating
272
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
272
Pipe schematic from manhole 21 0946 to 21 0945A
MH: 21 0946MH: 21 0945Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 21 09460 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0.1 ft. MGO - General Observation - CONNECTION AT MH 6 OCLOCK2 ft. MGO - General Observation - MAG COAT THROUGHOUT PIPE 45%12 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start16.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"34.5 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES137.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"177.2 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"261.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"380.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"471 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish473.5 ft. AMH - Downstream Manhole, Survey Ends - 21 0945A

Observation photos (5)

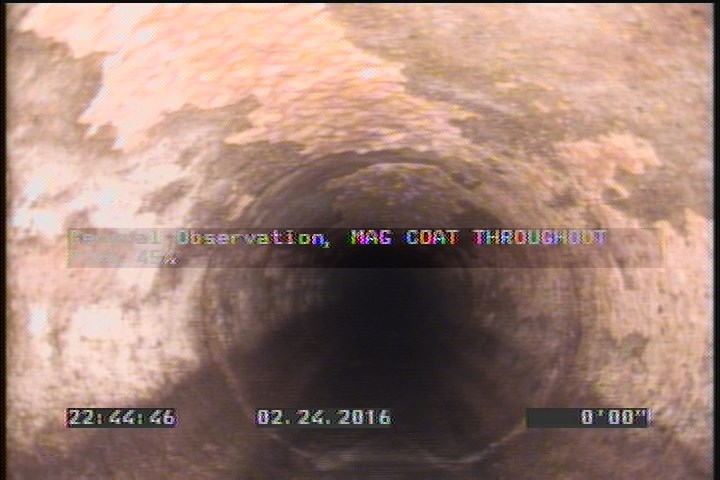

  • General Observation - MAG COAT THROUGHOUT PIPE 45%

    2 ft. - General Observation - MAG COAT THROUGHOUT PIPE 45%

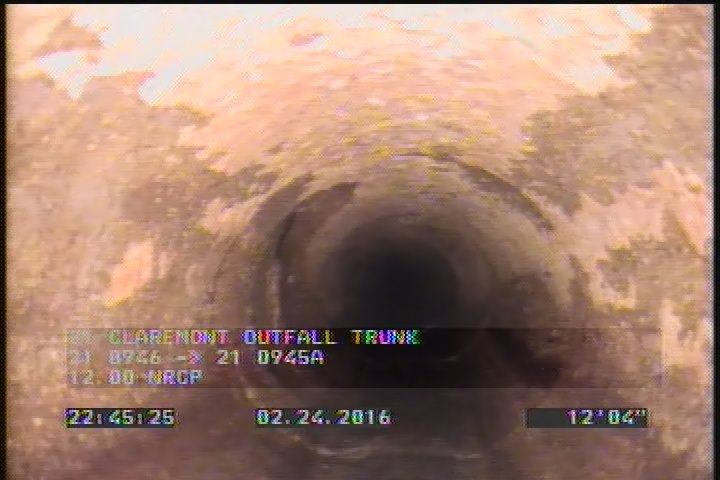

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    12 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

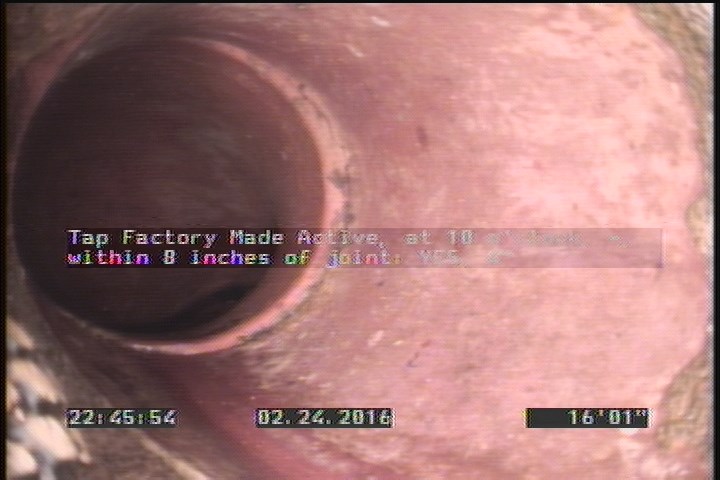

  • Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

    16.1 ft. - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

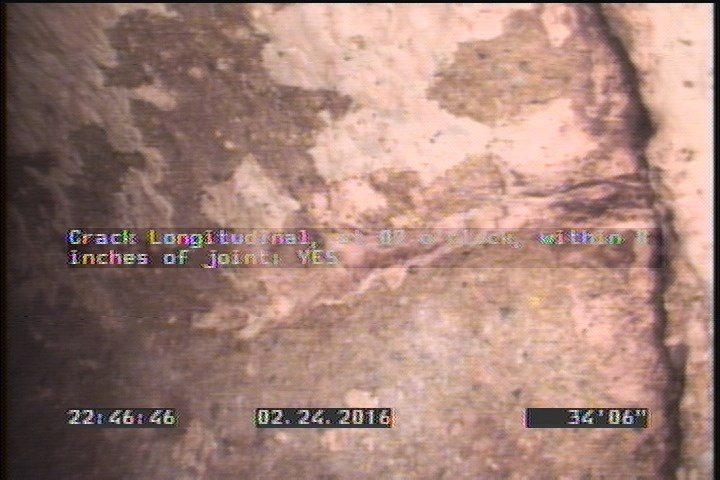

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    34.5 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

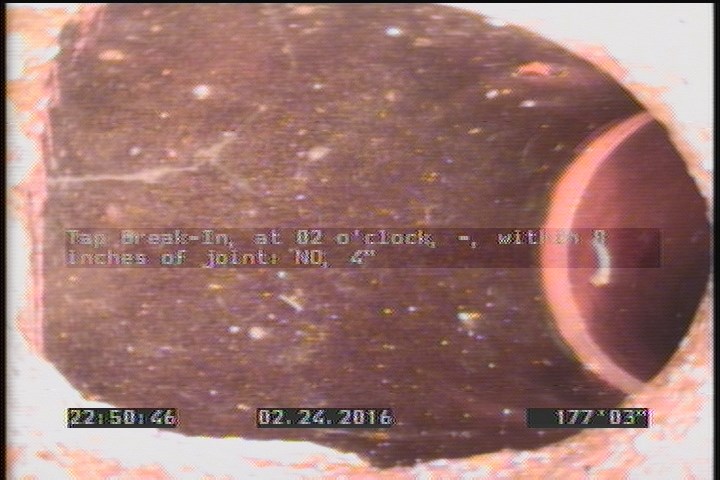

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"

    177.2 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"

All inspections of P16040Work order 552362

Observations (14)

DistanceCodeObservation
473.5AMH21 0945A
471SAV—
137.2TFA—
16.1TFA—
0.1MGOCONNECTION AT MH 6 OCLOCK
0AMH21 0946
0MWL—
12SAV—
177.2TB—
380.8TFA—
2MGOMAG COAT THROUGHOUT PIPE 45%
0MWM—
34.5CL—
261.2TFA—

Properties (6)

additional_info
SC225545
custom_field_two
3
customer
LACSD
datetime
2016-02-24T22:45:00-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
