Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 24, 2016, 08:34 AM

  • 04 0078_04 0077_24022016_003500.mp4

Date
02/24/2016
W/O
552531
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00415
PipeID
P11815
Time
12:34 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3265
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
01
Purpose
Routine Assessment
Project
WO_552531_TV04009_FEB2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
15 in.
Upstream MH
04 0078
Downstream MH
04 0077
Dir. of Survey
Downstream
Length Surveyed
29.9 ft.
Total Length
29.9 ft.
Structural Index
3
Structural Quick
3400
Structural Rating
12
O&M Index
2
O&M Quick
2500
O&M Rating
10
Overall Index
2
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 04 0078 to 04 0077
MH: 04 0078MH: 04 0077downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 4 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 04 00780 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start28 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish28 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish28 ft. MGO - General Observation - COCKROACHES IN MANHOLE29.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK29.9 ft. AMH - Downstream Manhole, Survey Ends - 04 007729.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (4)

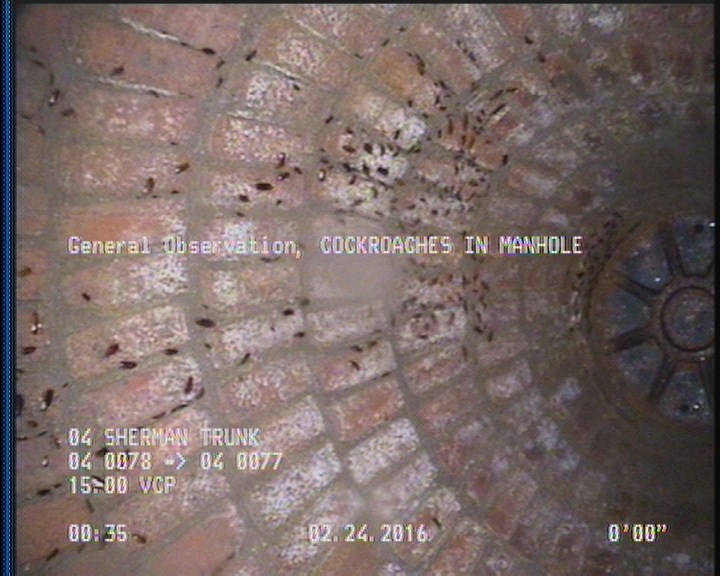

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

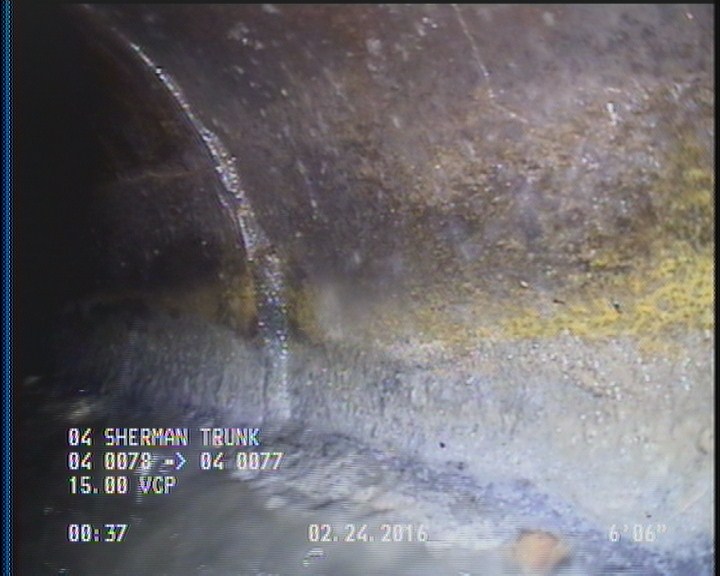

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

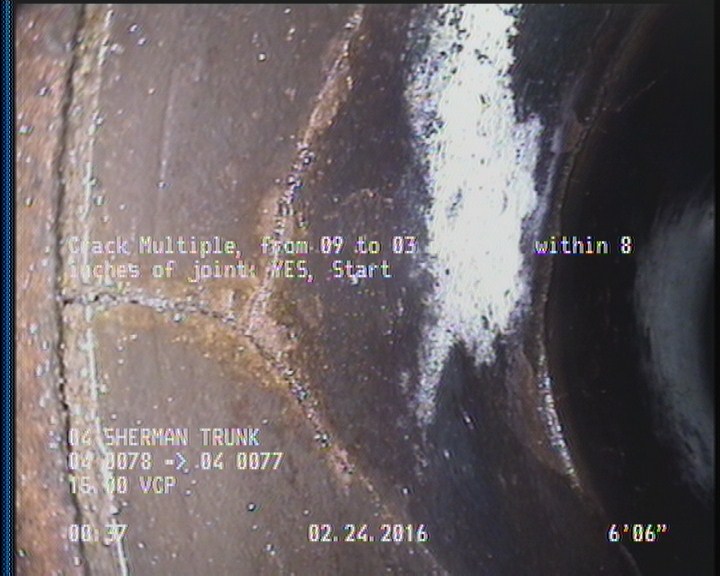

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

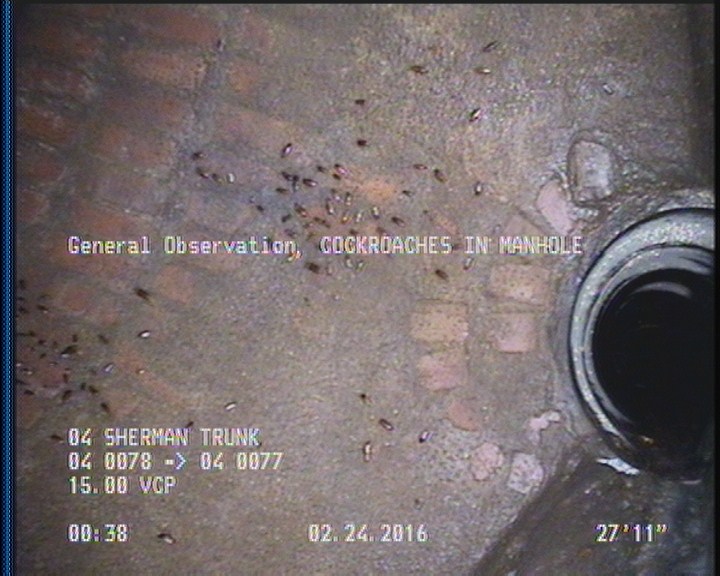

  • General Observation - COCKROACHES IN MANHOLE

    28 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P11815Work order 552531

Observations (14)

DistanceCodeObservation
0MWM—
29.9MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MGOCONNECTION AT MH 4 O'CLOCK
28DAGS—
29.9AMH04 0077
2DAGS—
0AMH04 0078
0MGOCOCKROACHES IN MANHOLE
0MWL—
28CM—
6.5CM—
29.9MGOACTIVE CONNECTION AT MH 9 O'CLOCK
28MGOCOCKROACHES IN MANHOLE

Properties (6)

additional_info
SC225488
custom_field_two
3
customer
LACSD
datetime
2016-02-24T00:34:41-08:00
documentation
PRO PIPE
is_lateral_inspection
false
