Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 23, 2016, 11:09 AM

  • 32 0075_32 0074_23052016_041001.mp4

Date
05/23/2016
W/O
574354
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00889
PipeID
P19838
Time
4:09 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3507
Sewer Name
32 RYE CANYON TRUNK
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
04
Purpose
Routine Assessment
Project
WO_574354_TV32020_JUNE2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
32 0075
Downstream MH
32 0074
Dir. of Survey
Downstream
Length Surveyed
169.5 ft.
Total Length
169.5 ft.
Structural Index
3
Structural Quick
3F2E
Structural Rating
163
O&M Index
2
O&M Quick
2K00
O&M Rating
122
Overall Index
2
Overall Quick
—
Overall Rating
285
Pipe schematic from manhole 32 0075 to 32 0074
MH: 32 0075MH: 32 0074downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 32 00752 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start27.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start169.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish169.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish169.4 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish169.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish169.5 ft. MSA - Survey Abandoned - DUE TO DEPOSITS/DEBRIS.

Observation photos (6)

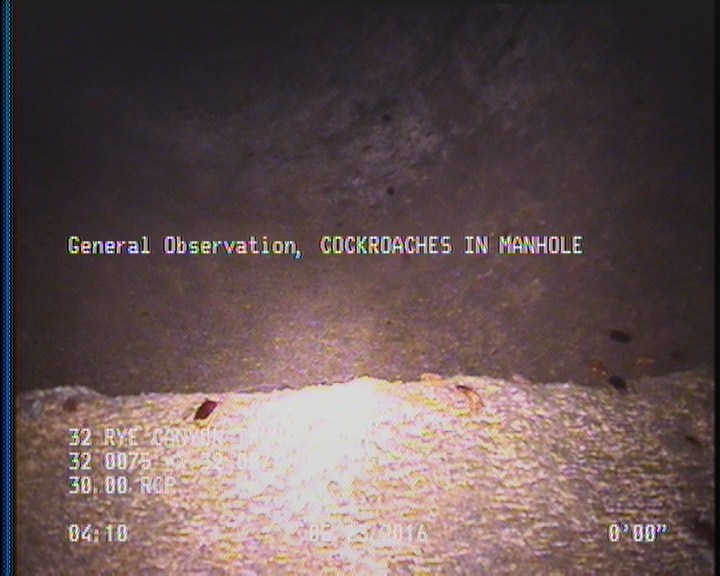

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

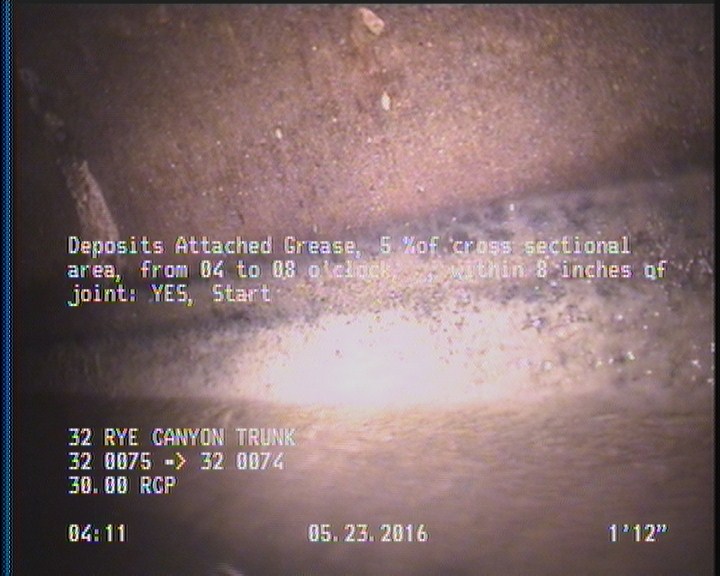

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

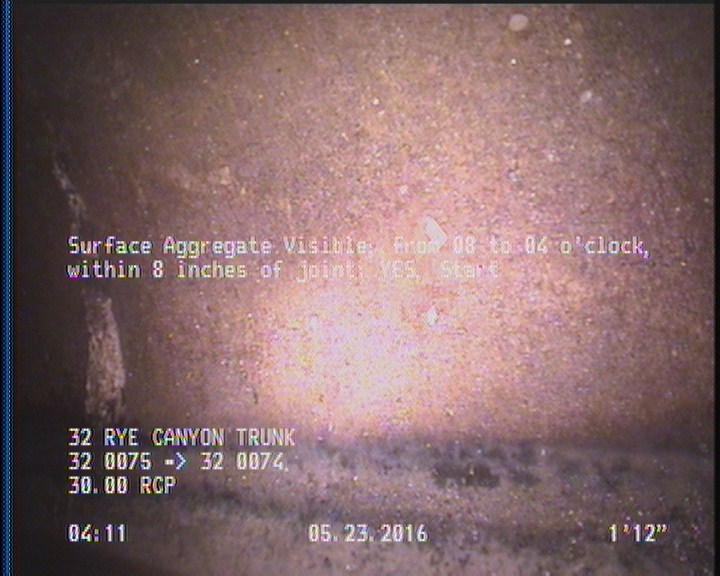

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

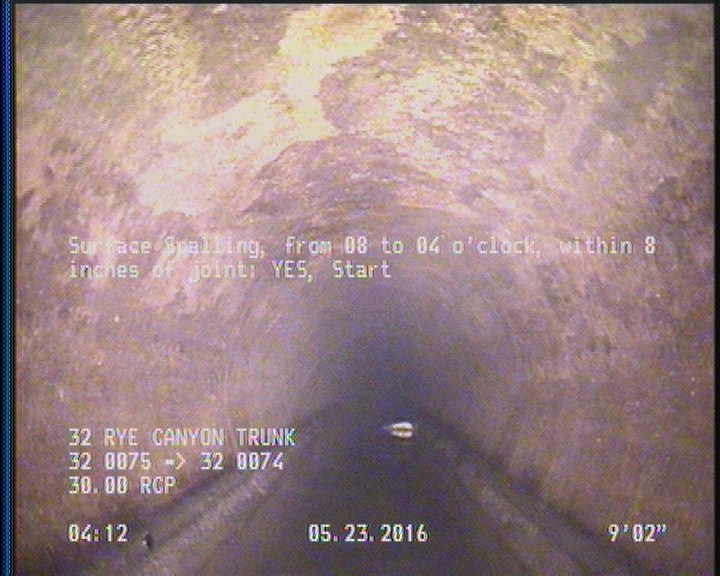

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

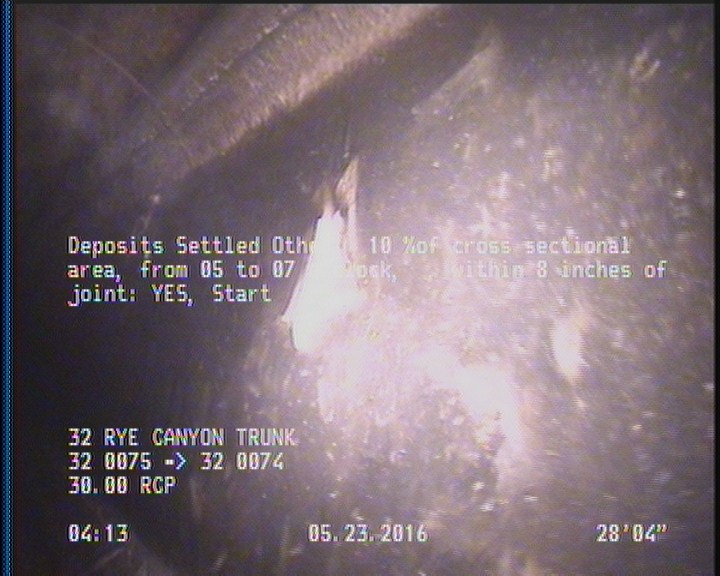

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    27.9 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

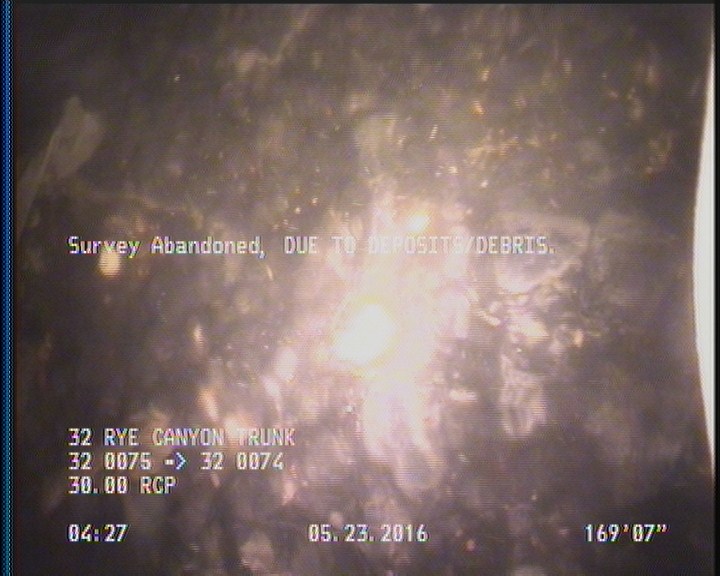

  • Survey Abandoned - DUE TO DEPOSITS/DEBRIS.

    169.5 ft. - Survey Abandoned - DUE TO DEPOSITS/DEBRIS.

All inspections of P19838Work order 574354

Observations (13)

DistanceCodeObservation
169.4SAV—
2DAGS—
8.2SSS—
169.4DAGS—
169.5MSADUE TO DEPOSITS/DEBRIS.
0MGOCOCKROACHES IN MANHOLE
2SAV—
169.4DSZ—
27.9DSZ—
0MWM—
0MWL—
169.4SSS—
0AMH32 0075

Properties (6)

additional_info
SC305637
custom_field_two
5
customer
LACSD
datetime
2016-05-23T04:09:25-07:00
documentation
PRO PIPE
is_lateral_inspection
false
