Wastewater/Activity/PacpInspection/1.0May 24, 2016, 10:31 AM
32 0082_32 0081A_24052016_033220.mp4
- Date
- 05/24/2016
- W/O
- 574354
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00889
- PipeID
- P22254
- Time
- 3:31 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3508
- Sewer Name
- 32 RYE CANYON TRUNK
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_574354_TV32020_JUNE2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 32 0082
- Downstream MH
- 32 0081A
- Dir. of Survey
- Downstream
- Length Surveyed
- 118.8 ft.
- Total Length
- 118.8 ft.
- Structural Index
- 4
- Structural Quick
- 4500
- Structural Rating
- 20
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 48
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 68
Observation photos (5)

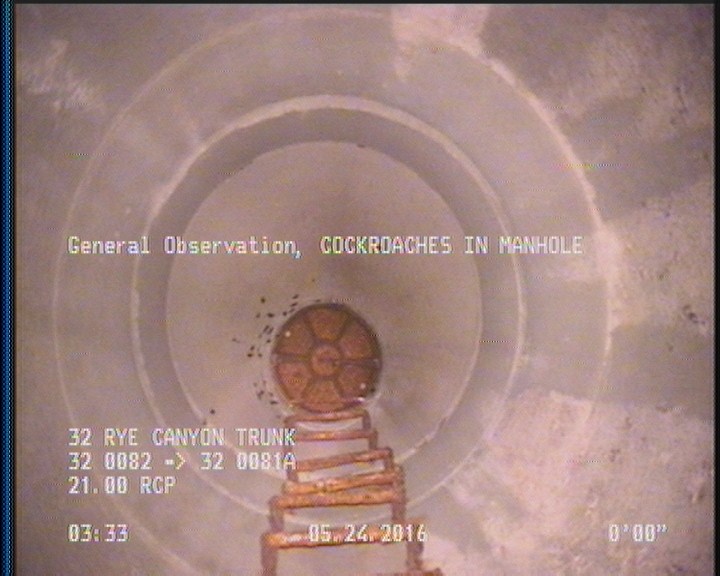

0 ft. - General Observation - COCKROACHES IN MANHOLE

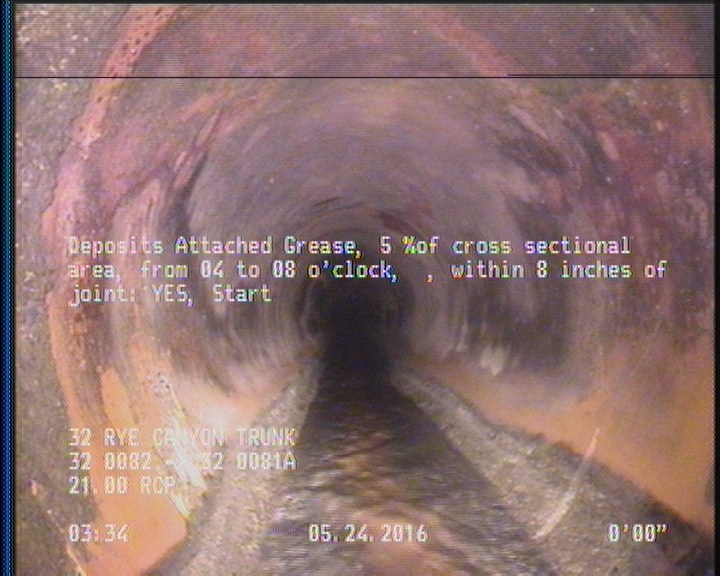

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

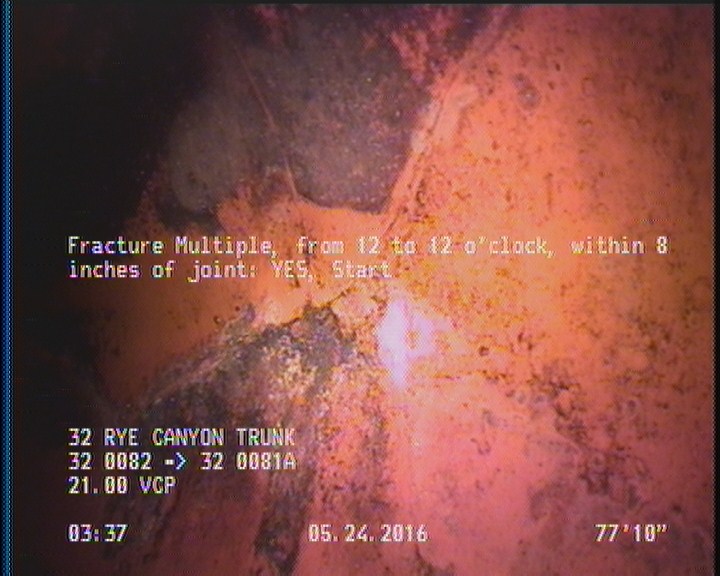

77.9 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

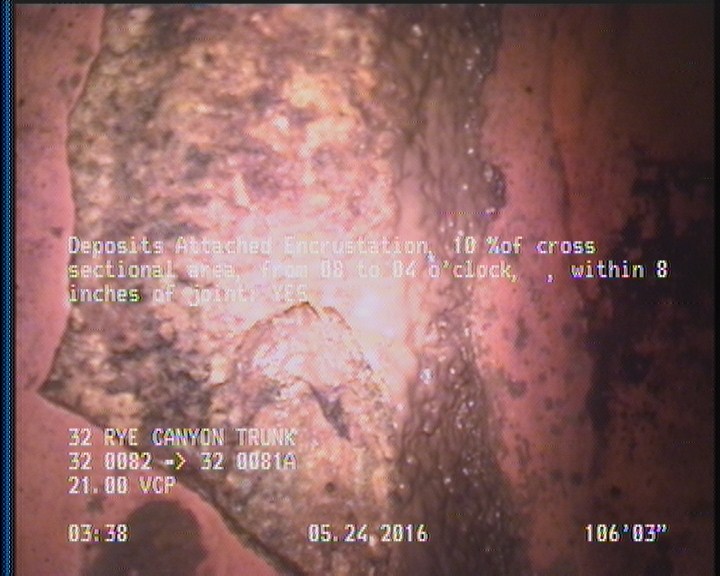

106.3 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

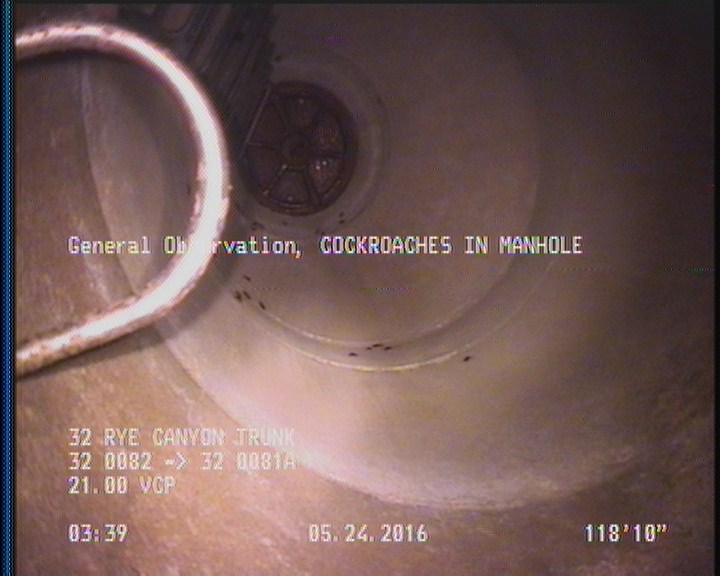

118.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 106.3 | DAE | — |
| 103.2 | FM | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 32 0082 |
| 2 | DAGS | — |
| 118.8 | MGO | COCKROACHES IN MANHOLE |
| 118.8 | AMH | 32 0081A |
| 77.9 | FM | — |
| 118.8 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC305638
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-24T03:31:42-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
