Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 24, 2016, 09:22 AM

  • 32 0084_32 0083_24052016_022251.mp4

Date
05/24/2016
W/O
574354
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00889
PipeID
P19847
Time
2:22 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3508
Sewer Name
32 RYE CANYON TRUNK
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
04
Purpose
Routine Assessment
Project
WO_574354_TV32020_JUNE2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
32 0083
Downstream MH
32 0084
Dir. of Survey
Upstream
Length Surveyed
712.1 ft.
Total Length
712.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2\00
O&M Rating
288
Overall Index
2
Overall Quick
—
Overall Rating
290
Pipe schematic from manhole 32 0083 to 32 0084
MH: 32 0083MH: 32 0084upstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 10 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 32 00840 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - COCKROACHES IN MANHOLE12.1 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES48.6 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"339.3 ft. TBI - Tap Break-In Intruding, at 10 o'clock, -, #v, within 8 inches of joint: NO, 6", 1"423.2 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"516 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 01 to 05 o'clock, , within 8 inches of joint: YES581.6 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"710.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start712.1 ft. MWM - Water Mark, 25 %of cross sectional area712.1 ft. MWL - Water Level, 10 %of cross sectional area712.1 ft. AMH - Downstream Manhole, Survey Begins - 32 0083

Observation photos (5)

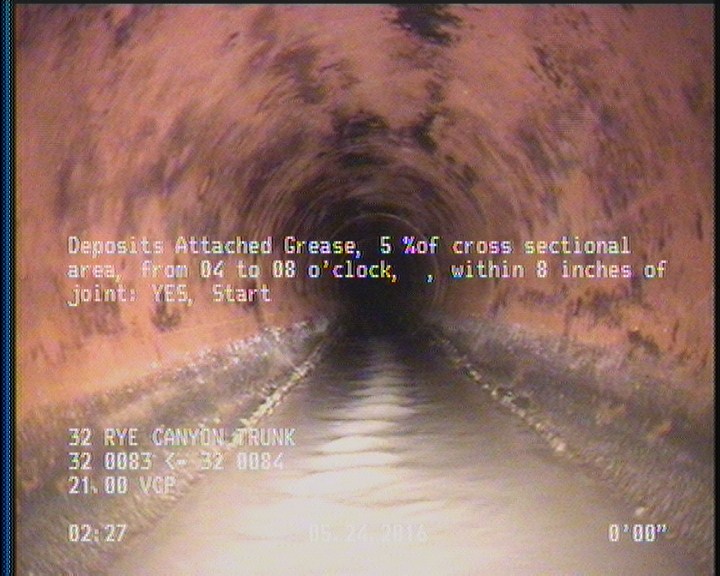

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

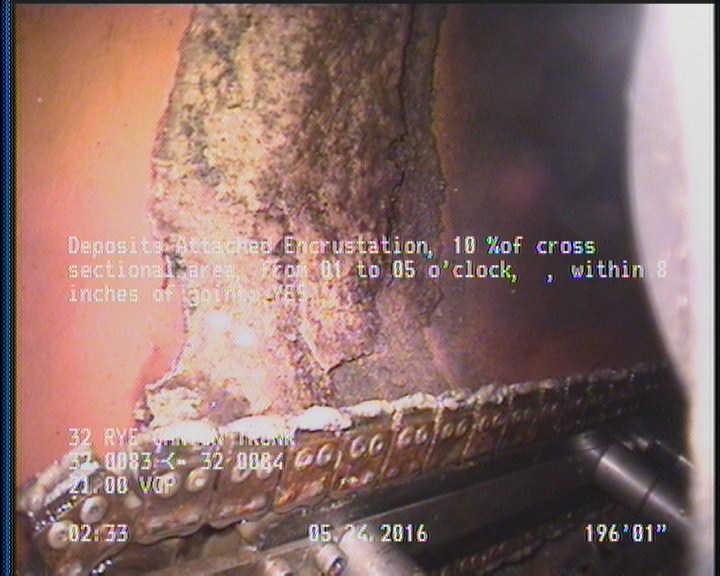

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 01 to 05 o'clock, , within 8 inches of joint: YES

    196.1 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 01 to 05 o'clock, , within 8 inches of joint: YES

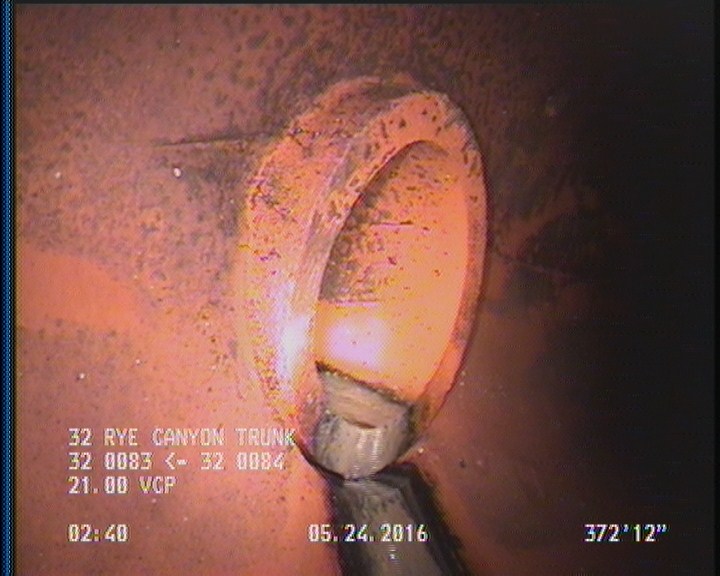

  • Tap Break-In Intruding, at 10 o'clock, -, #v, within 8 inches of joint: NO, 6", 1"

    372.8 ft. - Tap Break-In Intruding, at 10 o'clock, -, #v, within 8 inches of joint: NO, 6", 1"

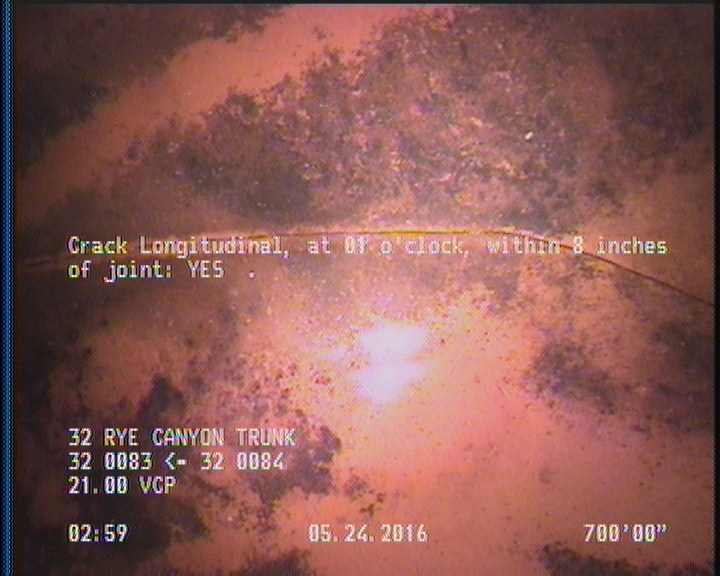

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    700 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

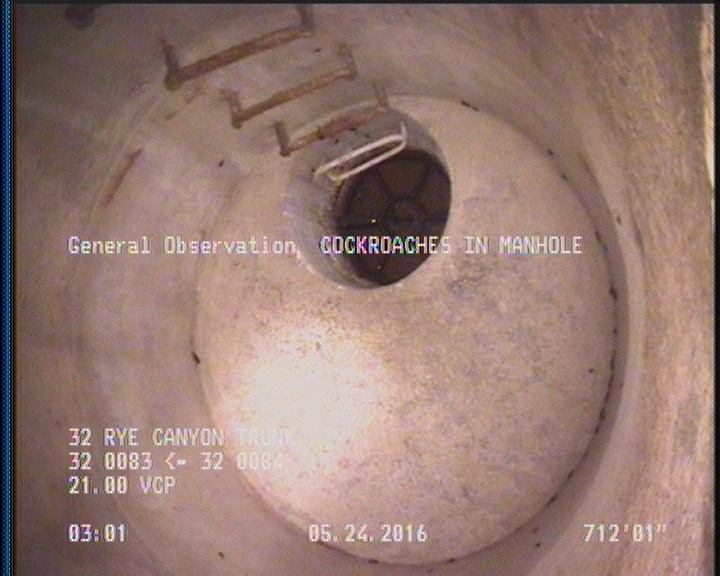

  • General Observation - COCKROACHES IN MANHOLE

    712.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P19847Work order 574354

Observations (14)

DistanceCodeObservation
130.5TBA—
0MWM—
712.1MGOACTIVE CONNECTION AT MH 10 O'CLOCK
712.1AMH32 0084
288.9TBA—
196.1DAE—
700CL—
663.5TBA—
712.1DAGS—
0MWL—
372.8TBI—
2DAGS—
712.1MGOCOCKROACHES IN MANHOLE
0AMH32 0083

Properties (6)

additional_info
SC305638
custom_field_two
4
customer
LACSD
datetime
2016-05-24T02:22:33-07:00
documentation
PRO PIPE
is_lateral_inspection
false
