Wastewater/Activity/PacpInspection/1.0Jun 19, 2017, 09:03 AM
03 0576_03 0575_6192017_033358.mp4
- Date
- 06/19/2017
- W/O
- 0633592
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00382
- PipeID
- P05238
- Time
- 2:03 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0565
- Sewer Name
- 03 MARINA RELIEF TRUNK, SECTION 2
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- 20170619MDM_MARINA_RELIEF_TRUNK_SECTION_2
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 03 0575
- Downstream MH
- 03 0576
- Dir. of Survey
- Upstream
- Length Surveyed
- 19.1 ft.
- Total Length
- 19.1 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

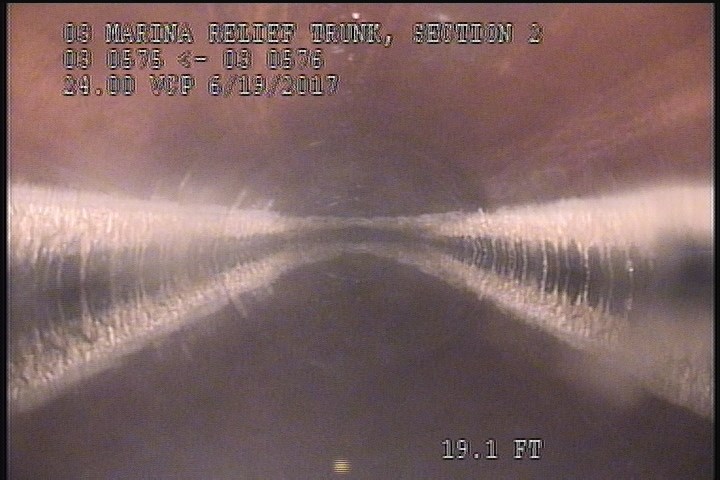

18.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish

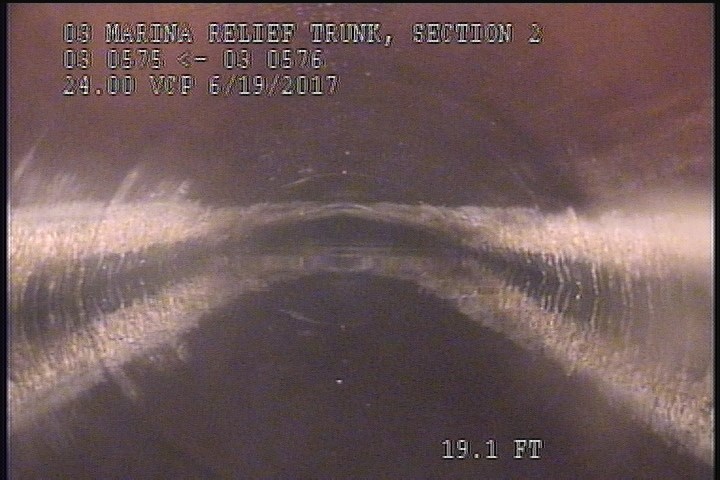

19.1 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 18.8 | DAGS | — |
| 0 | MWL | — |
| 16.4 | FC | HAIRLINE |
| 0 | MWM | — |
| 10.6 | FC | HAIRLINE |
| 19.1 | MSA | UPLEG DOWNSTREAM SIPHON |
| 0 | AMH | 3:30AM |
Properties (8)
- additional_info
- UPLEG DOWNSTREAM SIPHON
- custom_field_three
- HAIRLINE FRACTURES
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-06-19T02:03:11-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
- year_laid
- 19890308
