Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2016, 08:54 AM
Date
04/30/2016
W/O
0563839
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00008
Time
1:54 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6697
Sewer Name
08 MAIN STREET TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20160430MDM_MAIN_STREET_TRUNK
Material
RCP-CTL
Shape
Circular
Height
33 in.
Upstream MH
08 0008
Downstream MH
08 0007
Dir. of Survey
Downstream
Length Surveyed
302.8 ft.
Total Length
302.8 ft.
Structural Index
4
Structural Quick
514G
Structural Rating
157
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
4
Overall Quick
—
Overall Rating
162
Pipe schematic from manhole 08 0008 to 08 0007
MH: 08 0008MH: 08 0007downstream0 ft. MWM - Water Mark, 80 %of cross sectional area0 ft. MWL - Water Level, 40 %of cross sectional area2 ft. MGO - General Observation - MISSING TILES 50% UNDER MAG COAT2 ft. MGO - General Observation - MAG COAT 100% START 10:00 TO 2:0040.8 ft. MGO - General Observation - MIISING TILES 50%114.3 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES271.3 ft. SRV - Surface Reinforcement Visible, from 12 to 01 o'clock, within 8 inches of joint: YES - CIRCUM REBAR290.3 ft. MGO - General Observation - DEBRIE ON CABLE302.2 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG302.2 ft. MGO - General Observation - MAG COAT 100% FINISH302.2 ft. MGO - General Observation - MISSING TILES 50%FINISH302.8 ft. AMH - Downstream Manhole, Survey Ends - 6:25AM

Observation photos (6)

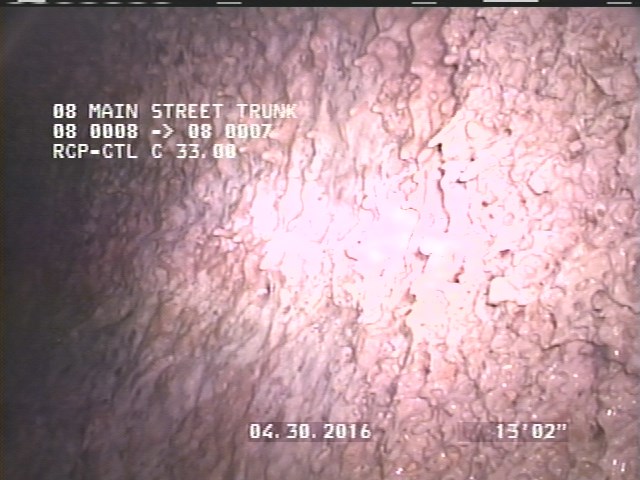

  • General Observation - MISSING TILES 50% UNDER MAG COAT

    2 ft. - General Observation - MISSING TILES 50% UNDER MAG COAT

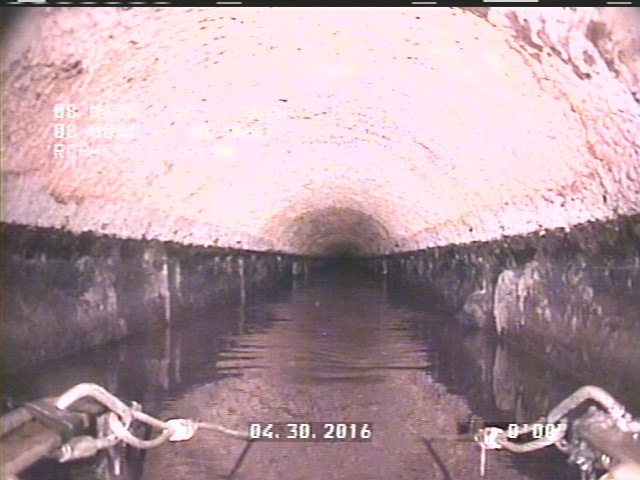

  • General Observation - MAG COAT 100% START 10:00 TO 2:00

    2 ft. - General Observation - MAG COAT 100% START 10:00 TO 2:00

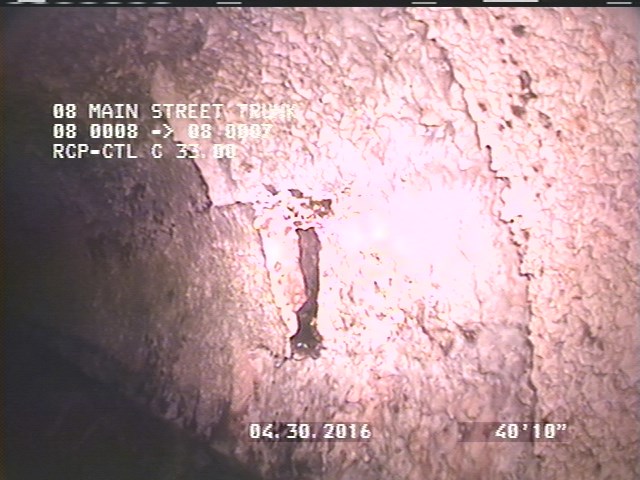

  • General Observation - MIISING TILES 50%

    40.8 ft. - General Observation - MIISING TILES 50%

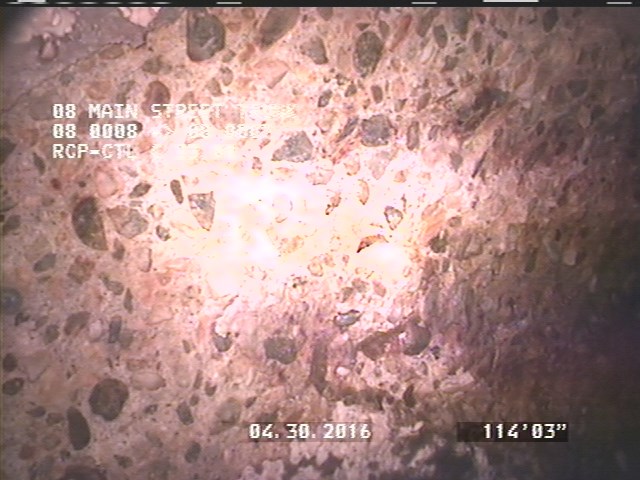

  • Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

    114.3 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

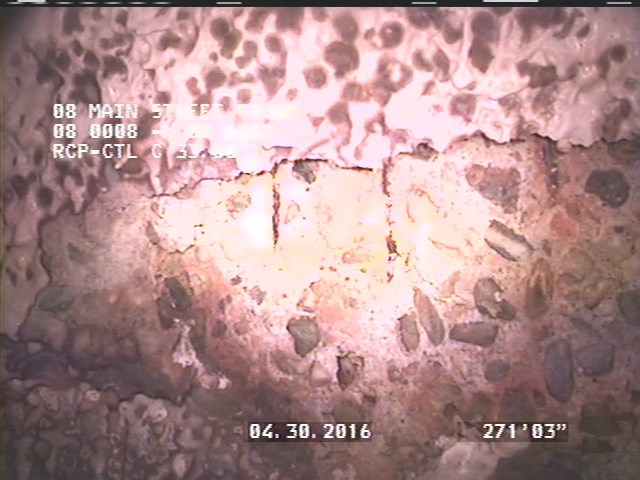

  • Surface Reinforcement Visible, from 12 to 01 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

    271.3 ft. - Surface Reinforcement Visible, from 12 to 01 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

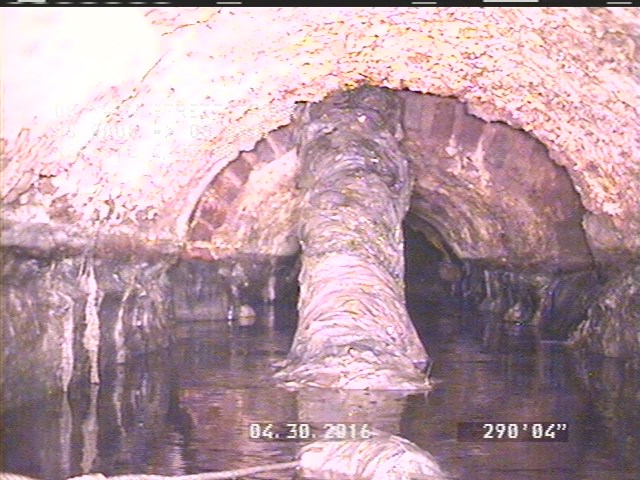

  • General Observation - DEBRIE ON CABLE

    290.3 ft. - General Observation - DEBRIE ON CABLE

All inspections of P00008Work order 0563839

Observations (12)

DistanceCodeObservation
302.8AMH6:25AM
302.2SAMSEVERE AGG
0MWM—
40.8MGOMIISING TILES 50%
2MGOMISSING TILES 50% UNDER MAG COAT
290.3MGODEBRIE ON CABLE
271.3SRVCIRCUM REBAR
0MWL—
2MGOMAG COAT 100% START 10:00 TO 2:00
302.2MGOMAG COAT 100% FINISH
114.3SAMSEVERE AGG AREAS OF MISSING TILES
302.2MGOMISSING TILES 50%FINISH

Properties (6)

custom_field_three
MISSING SEVERE AGG- 1 AREA CIRCUM REBAR
custom_field_two
2
customer
LACSD
datetime
2016-04-30T01:54:31-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
