Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2016, 08:33 AM
Date
04/30/2016
W/O
0563839
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P25022
Time
1:33 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6696
Sewer Name
08 MAIN STREET TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20160430MDM_MAIN_STREET_TRUNK
Material
RCP-CTL
Shape
Circular
Height
33 in.
Upstream MH
08 0012
Downstream MH
08 0687
Dir. of Survey
Downstream
Length Surveyed
47.8 ft.
Total Length
47.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5A41
O&M Rating
54
Overall Index
5
Overall Quick
—
Overall Rating
54
Pipe schematic from manhole 08 0012 to 08 0687
MH: 08 0012MH: 08 0687downstream0 ft. MGO - General Observation - MH CONN OPEN 3:000 ft. AMH - Upstream Manhole, Survey Begins - 1:50AM0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 40 %of cross sectional area2 ft. MGO - General Observation - MISSING TILES 10% START 9:00 TO 3:002 ft. DSZ - Deposits Settled Other, 40 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start - TILES % DEBRIE2 ft. MGO - General Observation - MAG COAT 70% START 9:00 TO 3:0017.5 ft. MGO - General Observation - TILES IN PLACE31 ft. DSZ - Deposits Settled Other, 40 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - TILES % DEBRIE47.3 ft. MGO - General Observation - MISSING TILES 10% FINISH47.3 ft. MGO - General Observation - MAG COAT 70% FINISH47.3 ft. MGO - General Observation - MH CONN OPEN 3:00 LARGE OPENING DEBRIE BLOCKED47.3 ft. DSZ - Deposits Settled Other, 40 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish - TILES & DEBRIE47.3 ft. MGO - General Observation - MH CONN ACTIVE LARGE INCOMING LINE47.8 ft. AMH - Downstream Manhole, Survey Ends - 2:05AM

Observation photos (6)

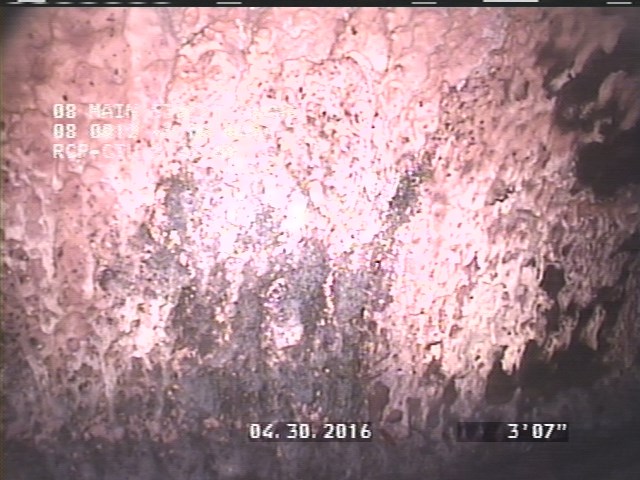

  • General Observation - MISSING TILES 10% START 9:00 TO 3:00

    2 ft. - General Observation - MISSING TILES 10% START 9:00 TO 3:00

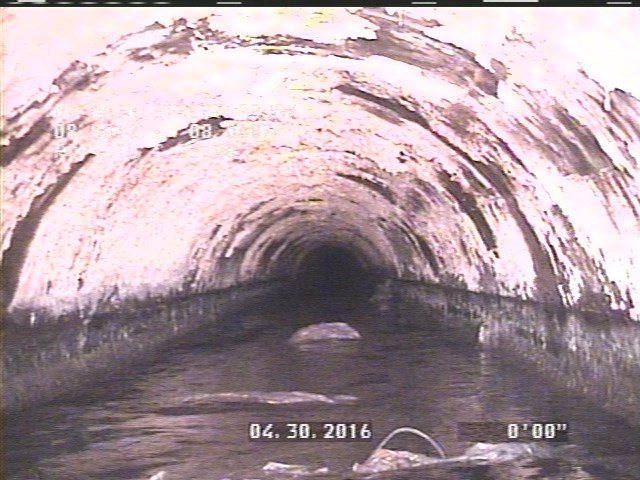

  • Deposits Settled Other, 40 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start - TILES % DEBRIE

    2 ft. - Deposits Settled Other, 40 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start - TILES % DEBRIE

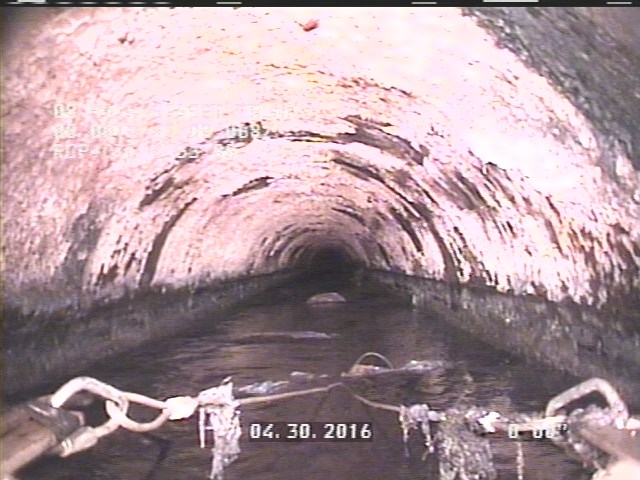

  • General Observation - MAG COAT 70% START 9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 70% START 9:00 TO 3:00

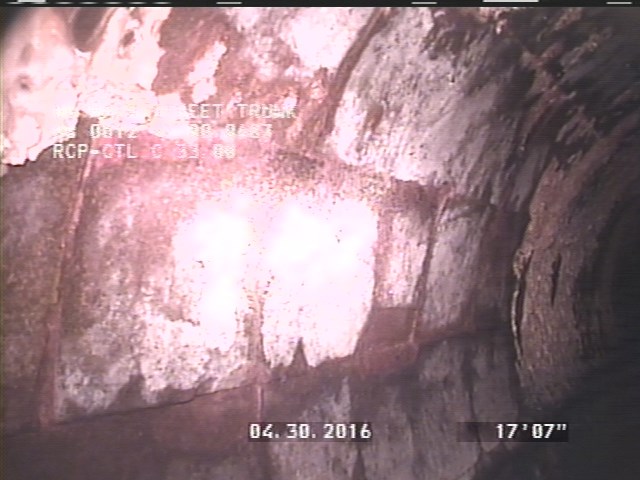

  • General Observation - TILES IN PLACE

    17.5 ft. - General Observation - TILES IN PLACE

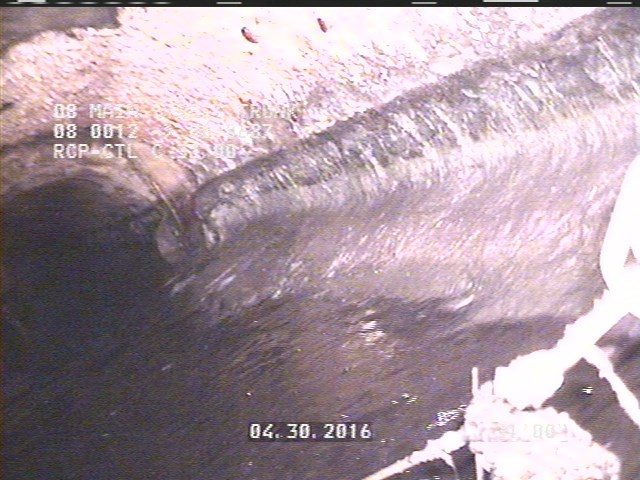

  • Deposits Settled Other, 40 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - TILES % DEBRIE

    31 ft. - Deposits Settled Other, 40 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - TILES % DEBRIE

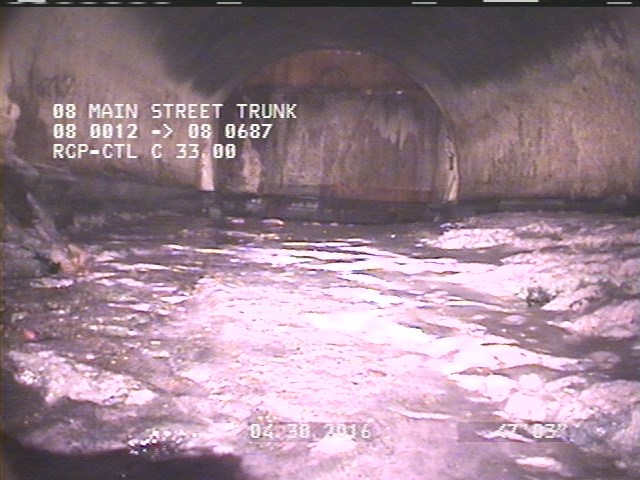

  • General Observation - MH CONN OPEN 3:00 LARGE OPENING DEBRIE BLOCKED

    47.3 ft. - General Observation - MH CONN OPEN 3:00 LARGE OPENING DEBRIE BLOCKED

All inspections of P25022Work order 0563839

Observations (15)

DistanceCodeObservation
0MGOMH CONN OPEN 3:00
47.3MGOMISSING TILES 10% FINISH
17.5MGOTILES IN PLACE
47.3MGOMAG COAT 70% FINISH
47.8AMH2:05AM
2MGOMISSING TILES 10% START 9:00 TO 3:00
0AMH1:50AM
0MWM—
2DSZTILES % DEBRIE
0MWL—
47.3MGOMH CONN OPEN 3:00 LARGE OPENING DEBRIE BLOCKED
2MGOMAG COAT 70% START 9:00 TO 3:00
31DSZTILES % DEBRIE
47.3DSZTILES & DEBRIE
47.3MGOMH CONN ACTIVE LARGE INCOMING LINE

Properties (6)

custom_field_three
MISSING TILES
custom_field_two
3
customer
LACSD
datetime
2016-04-30T01:33:06-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
