Wastewater/Activity/PacpInspection/1.0Apr 29, 2016, 07:29 AM
05 2169_05 2168_4292016_004351.mp4
05 2169_05 2168_4292016_012641.mp4
- Date
- 04/29/2016
- W/O
- 0571171
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00509
- PipeID
- P07312
- Time
- 12:29 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0118
- Sewer Name
- 05 PRAIRIE AVENUE TRUNK
- City
- HAWTHORNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Maintenance Related
- Project
- 201604MDM_PRAIRIE_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 05 2169
- Downstream MH
- 05 2168
- Dir. of Survey
- Downstream
- Length Surveyed
- 545.8 ft.
- Total Length
- 545.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4132
- O&M Rating
- 10
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (5)

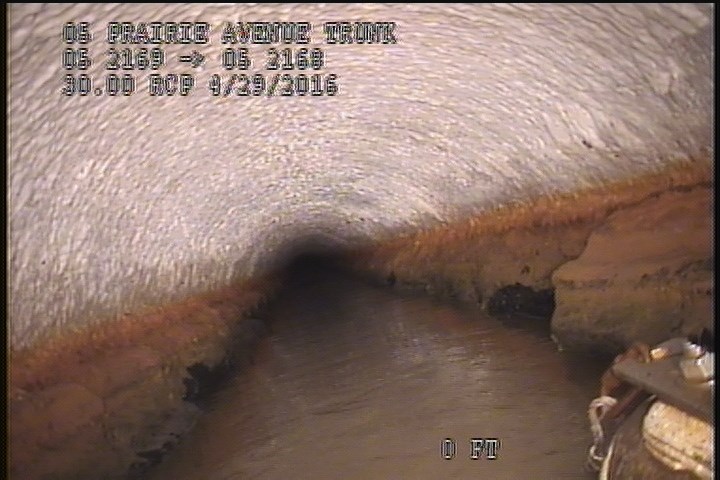

2 ft. - Deposits Attached Grease, 25 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

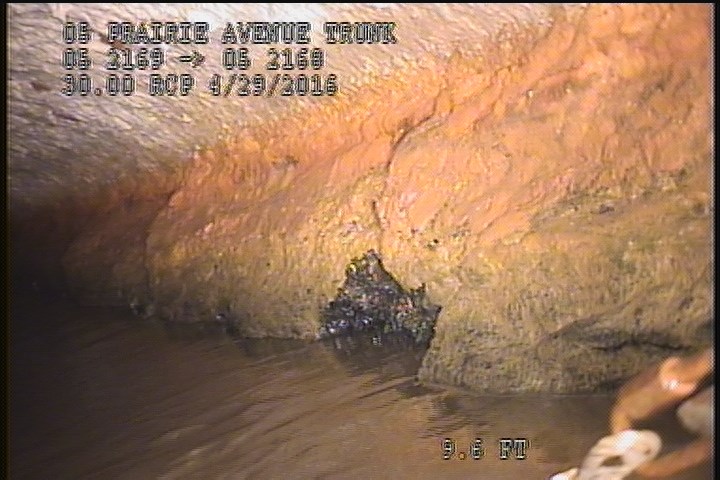

9.6 ft. - General Photograph

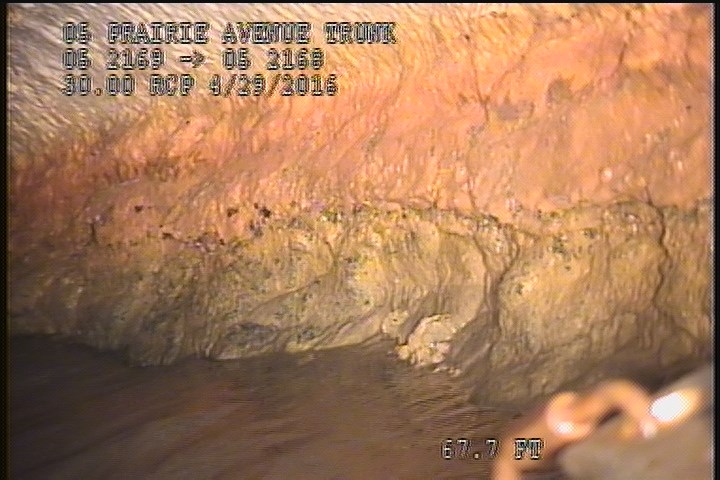

67.7 ft. - General Photograph

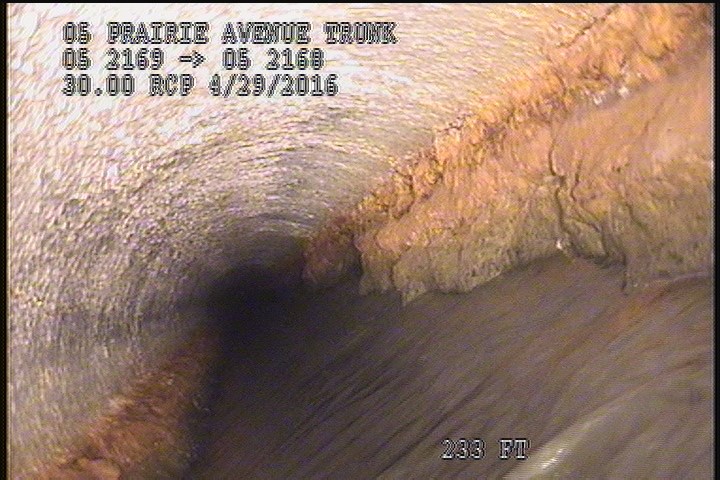

233 ft. - Deposits Attached Grease, 25 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES

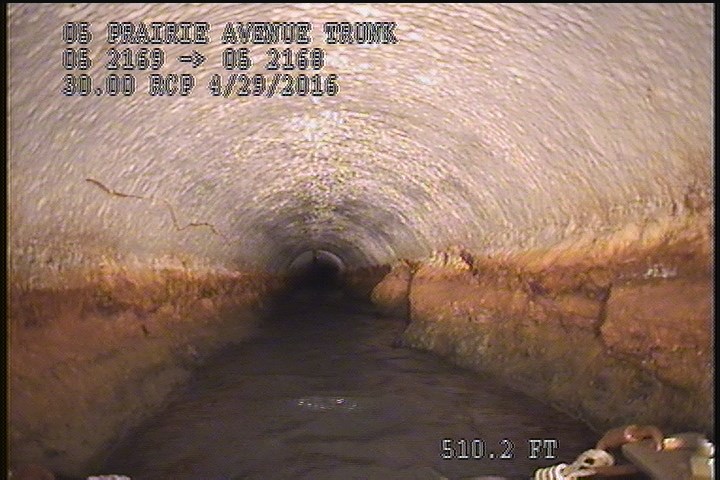

510.2 ft. - General Photograph
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MGO | POST GREASE CCTV |
| 510.2 | MGP | — |
| 67.7 | MGP | — |
| 0 | AMH | 12:30AM |
| 9.6 | MGP | — |
| 545.8 | AMH | 2:05AM |
| 233 | DAGS | — |
| 545.3 | DAGS | — |
| 0 | MWL | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- POST GREASE CCTV
- customer
- LACSD
- datetime
- 2016-04-29T00:29:14-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
