Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2016, 04:26 PM

  • 18 0044A_18 0044_4302016_092822.mp4

Date
04/30/2016
W/O
0563300
Weather
Damp
Operator/Surveyor
MIRANDA
Sewer ID
Z00689
PipeID
P13860
Time
9:26 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7103
Sewer Name
18 MILLS AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
20160428AM_MILLS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0044A
Downstream MH
18 0044
Dir. of Survey
Downstream
Length Surveyed
280.3 ft.
Total Length
280.3 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 18 0044A to 18 0044
MH: 18 0044AMH: 18 0044downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. AMH - Upstream Manhole, Survey Begins - 9:27 AM0 ft. MWM - Water Mark, 30 %of cross sectional area0.1 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start4.6 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"10.8 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"21.6 ft. FM - Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES42.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES71.4 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"77.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"125.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"131.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"176.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"180.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"231.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"237.5 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"278.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish278.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish279.4 ft. MGO - General Observation - ROACHES INSIDE THE MH.280.3 ft. AMH - Downstream Manhole, Survey Ends - 9:56 AM

Observation photos (3)

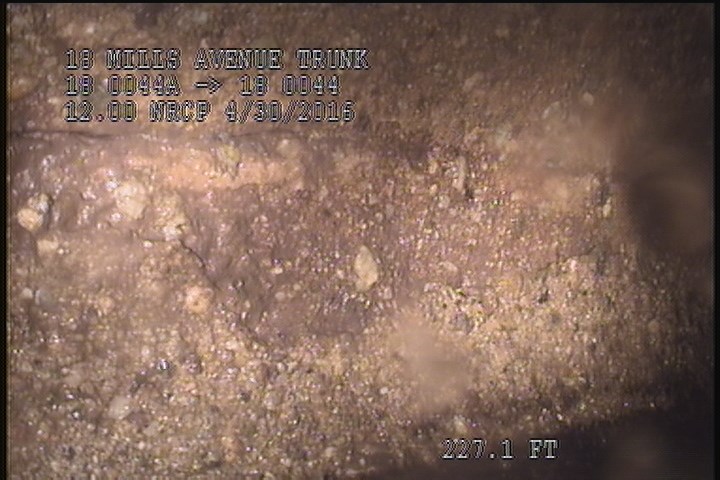

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

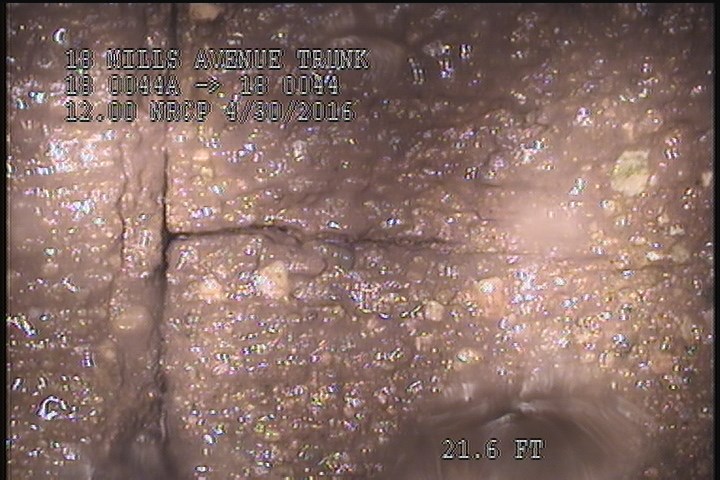

  • Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

    21.6 ft. - Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

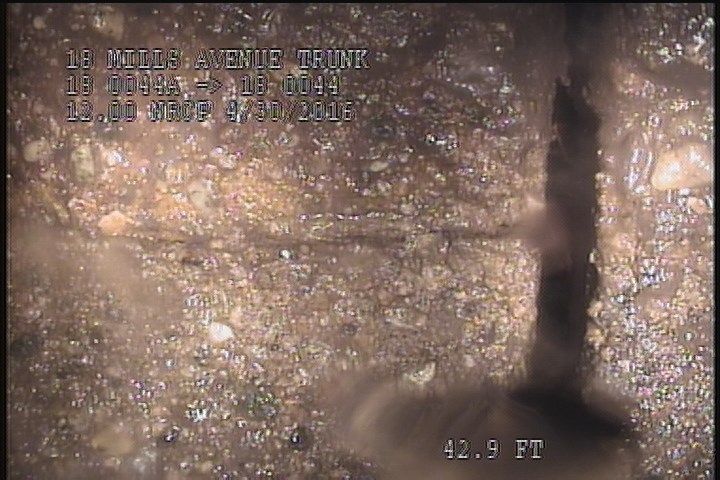

  • Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    42.9 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES

All inspections of P13860Work order 0563300

Observations (23)

DistanceCodeObservation
131.9TFC—
279.4MGOROACHES INSIDE THE MH.
237.5TFC—
71.4TFC—
0MWL—
0MGOROACHES INSIDE THE MH.
4.6TFC—
0AMH9:27 AM
231.5TFC—
2SAV—
10.8TFC—
2SSS—
278.7SAV—
278.7SSS—
180.1TFC—
0MWM—
176.7TFC—
0.1MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
21.6FM—
280.3AMH9:56 AM
77.4TFC—
125.8TFC—
42.9FL—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-04-30T09:26:20-07:00
documentation
MIRANDA & SHADLER
is_lateral_inspection
false
