Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2016, 03:40 PM

  • 18 0046_18 0045_4302016_084310.mp4

Date
04/30/2016
W/O
0563300
Weather
Light Rain
Operator/Surveyor
MIRANDA
Sewer ID
Z00689
PipeID
P13861
Time
8:40 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7102
Sewer Name
18 MILLS AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
20160428AM_MILLS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0046
Downstream MH
18 0045
Dir. of Survey
Downstream
Length Surveyed
299.5 ft.
Total Length
299.5 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 18 0046 to 18 0045
MH: 18 0046MH: 18 0045downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - CAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. AMH - Upstream Manhole, Survey Begins - 8:41 AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start44.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"99.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"105 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"162.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"168.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"216.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"220.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"231.1 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES265.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"271.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"297.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish297.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish298.6 ft. MGO - General Observation - ROACHES INSIDE THE MH.299.5 ft. AMH - Downstream Manhole, Survey Ends - 9:09 AM

Observation photos (3)

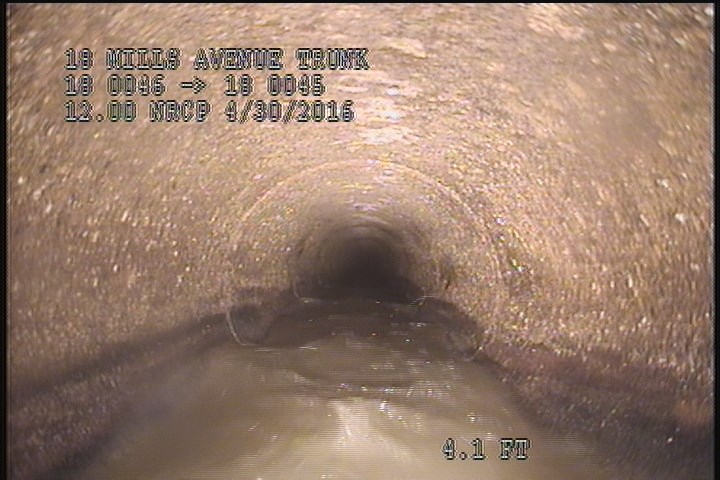

  • Upstream Manhole, Survey Begins - 8:41 AM

    0 ft. - Upstream Manhole, Survey Begins - 8:41 AM

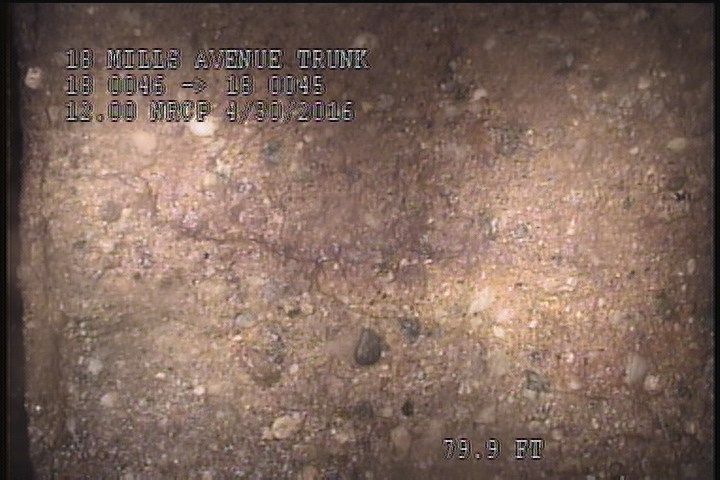

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

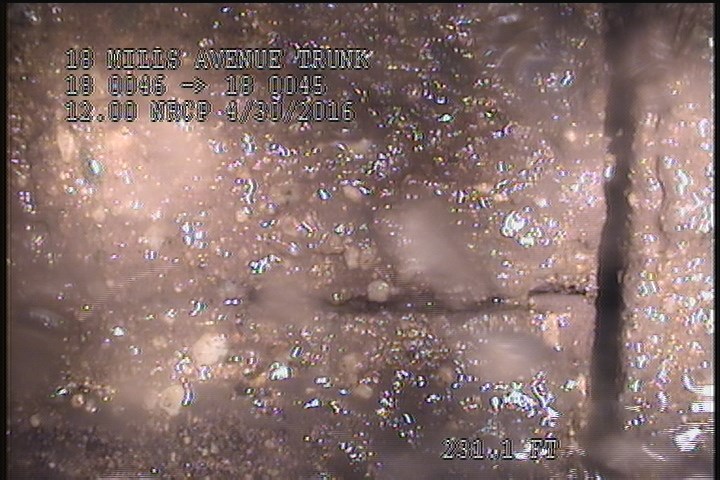

  • Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    231.1 ft. - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES

All inspections of P13861Work order 0563300

Observations (21)

DistanceCodeObservation
0MWL—
297.7SAV—
297.7SSS—
44.5TFC—
271.5TFC—
298.6MGOROACHES INSIDE THE MH.
216.9TFC—
265.5TFC—
231.1FL—
2SSS—
0MGOCAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK
0MWM—
99.2TFC—
162.5TFC—
168.5TFC—
2SAV—
299.5AMH9:09 AM
0MGOROACHES INSIDE THE MH.
220.2TFC—
105TFC—
0AMH8:41 AM

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-04-30T08:40:38-07:00
documentation
MIRANDA & SHADLER
is_lateral_inspection
false
