Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2016, 03:27 PM

  • 18 0047_18 0046_4302016_083145.mp4

Date
04/30/2016
W/O
0563300
Weather
Light Rain
Operator/Surveyor
MIRANDA
Sewer ID
Z00689
PipeID
P13862
Time
8:27 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7102
Sewer Name
18 MILLS AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
20160428AM_MILLS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0047
Downstream MH
18 0046
Dir. of Survey
Downstream
Length Surveyed
57.5 ft.
Total Length
57.5 ft.
Structural Index
3
Structural Quick
4131
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 18 0047 to 18 0046
MH: 18 0047MH: 18 0046downstream0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - CAPPED CONN. INSIDE THE MH. @ 08 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 8:30 AM0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start8.3 ft. FM - Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES55.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish55.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish56.3 ft. MGO - General Observation - ROACHES INSIDE THE MH.56.3 ft. MGO - General Observation - CAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK57.5 ft. AMH - Downstream Manhole, Survey Ends - 8:39 AM

Observation photos (3)

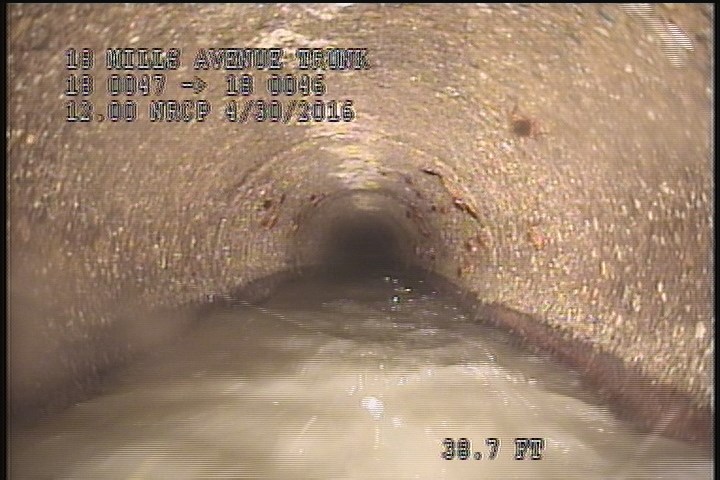

  • Upstream Manhole, Survey Begins - 8:30 AM

    0 ft. - Upstream Manhole, Survey Begins - 8:30 AM

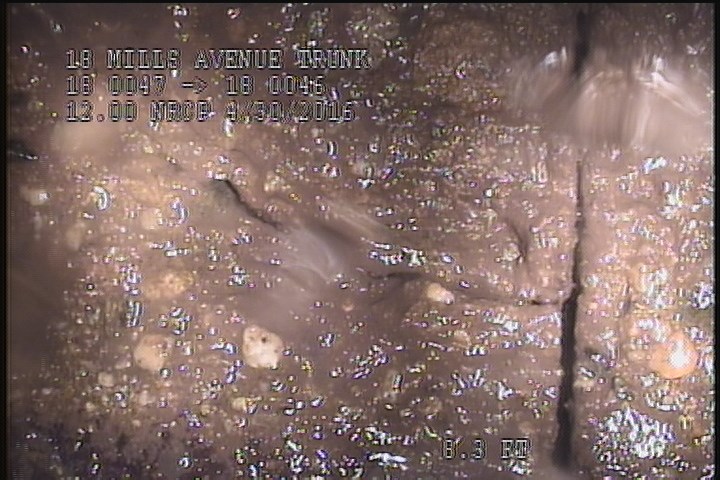

  • Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

    8.3 ft. - Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

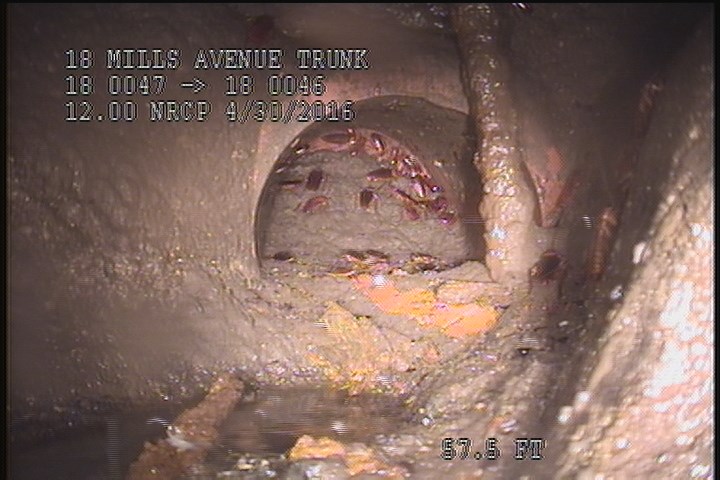

  • General Observation - CAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK

    56.3 ft. - General Observation - CAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK

All inspections of P13862Work order 0563300

Observations (13)

DistanceCodeObservation
55.6SSS—
56.3MGOROACHES INSIDE THE MH.
2SAV—
55.6SAV—
0MGOROACHES INSIDE THE MH.
0MWL—
0MGOCAPPED CONN. INSIDE THE MH. @ 08 O'CLOCK
57.5AMH8:39 AM
8.3FM—
0AMH8:30 AM
0MWM—
56.3MGOCAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK
2SSS—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-04-30T08:27:44-07:00
documentation
MIRANDA & SHADLER
is_lateral_inspection
false
