Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2016, 02:37 PM

  • 18 0049_18 0048_4302016_073941.mp4

Date
04/30/2016
W/O
0563300
Weather
Light Rain
Operator/Surveyor
MIRANDA
Sewer ID
Z00689
PipeID
P13864
Time
7:37 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7102
Sewer Name
18 MILLS AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
20160428AM_MILLS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0049
Downstream MH
18 0048
Dir. of Survey
Downstream
Length Surveyed
294.6 ft.
Total Length
294.6 ft.
Structural Index
3
Structural Quick
4433
Structural Rating
27
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
27
Pipe schematic from manhole 18 0049 to 18 0048
MH: 18 0049MH: 18 0048downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK0 ft. MGO - General Observation - OPEN CONN. INSIDE THE MH. @ 09 O'CLOCK0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. AMH - Upstream Manhole, Survey Begins - 7:38 AM2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start7.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"11.9 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES30.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES79.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"99.6 ft. FM - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES111.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES121.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"128.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"182.6 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN185.6 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"229.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES246.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"252.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"263 ft. CM - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES293.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish293.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish293.6 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK293.6 ft. MGO - General Observation - ROACHES INSIDE THE MH.294.6 ft. AMH - Downstream Manhole, Survey Ends - 8:05 AM

Observation photos (6)

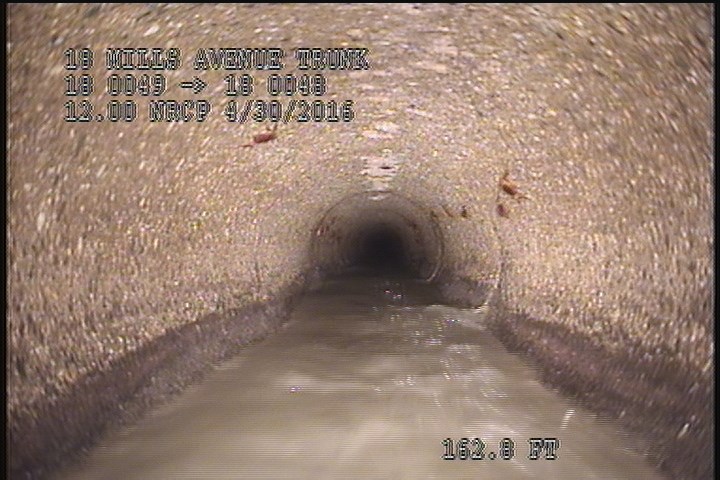

  • Upstream Manhole, Survey Begins - 7:38 AM

    0 ft. - Upstream Manhole, Survey Begins - 7:38 AM

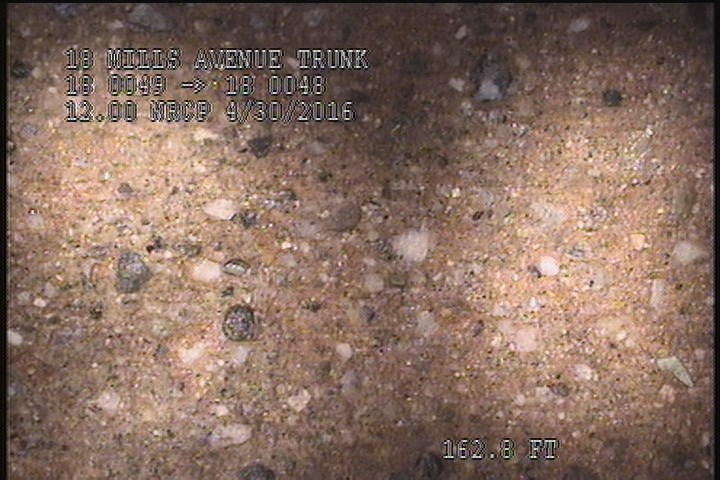

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

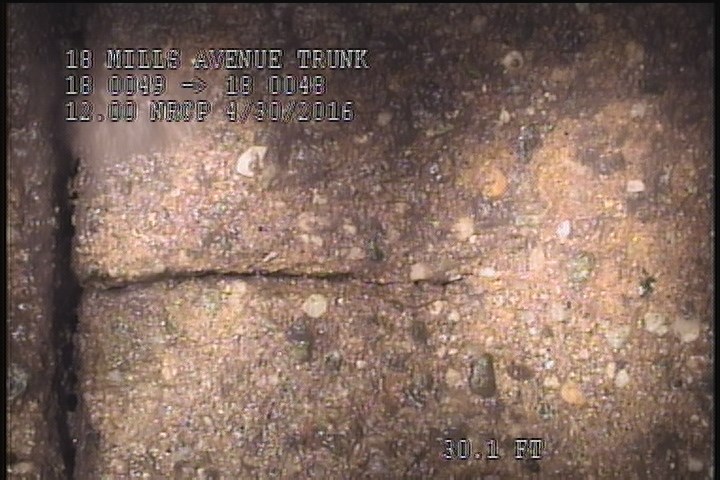

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    30.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

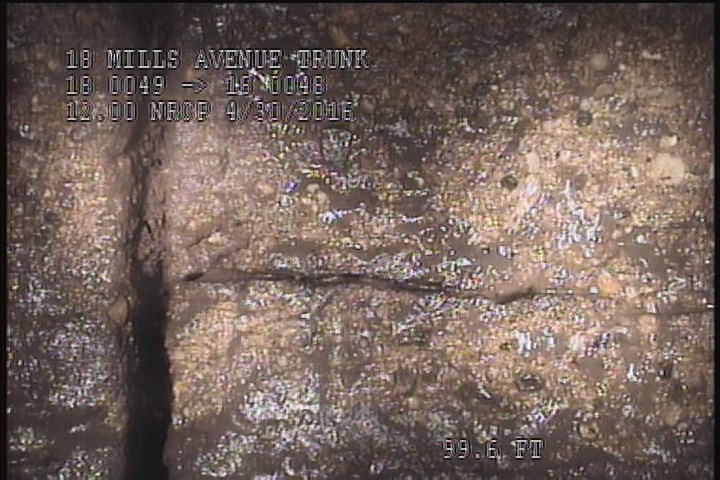

  • Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

    99.6 ft. - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

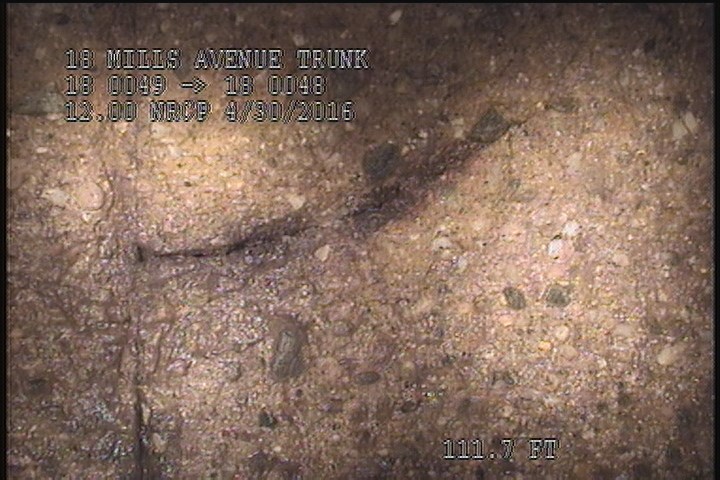

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    111.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

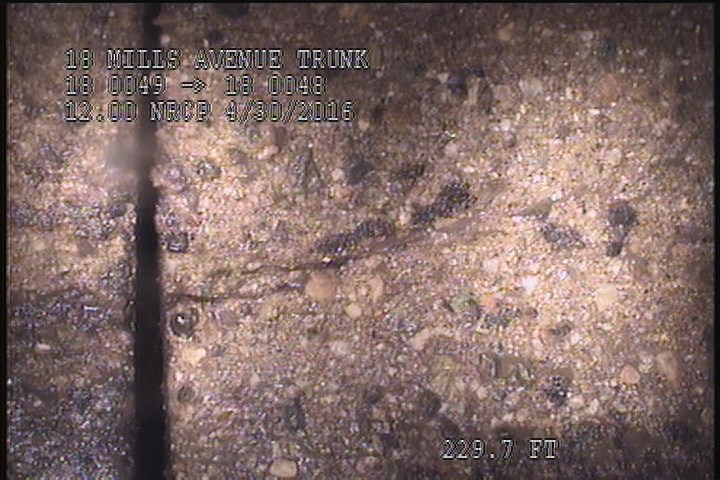

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    229.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P13864Work order 0563300

Observations (27)

DistanceCodeObservation
128.2TFC—
0MWL—
185.6TFC—
121.9TFA—
2SAV—
182.6TFOPEN
293.2SAV—
2SSS—
246.1TFC—
294.6AMH8:05 AM
263CM—
293.6MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
252.2TFC—
11.9CM—
293.2SSS—
79.7TFC—
7.1TFC—
229.7FM—
30.1FM—
111.7FM—
0MWM—
0MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
0MGOOPEN CONN. INSIDE THE MH. @ 09 O'CLOCK
0MGOROACHES INSIDE THE MH.
293.6MGOROACHES INSIDE THE MH.
0AMH7:38 AM
99.6FM—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-04-30T07:37:49-07:00
documentation
MIRANDA & SHADLER
is_lateral_inspection
false
