Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 27, 2016, 12:07 PM

  • 05 0765_05 0764_4272016_053722.mp4

Date
04/27/2016
W/O
0563852
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00484
PipeID
P05992
Time
5:07 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0116
Sewer Name
05 MANCHESTER-VERMONT RELIEF TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20160427MDM_MANCHESTER_VERMONT_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 0765
Downstream MH
05 0764
Dir. of Survey
Downstream
Length Surveyed
128.1 ft.
Total Length
128.1 ft.
Structural Index
2
Structural Quick
433B
Structural Rating
107
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
107
Pipe schematic from manhole 05 0765 to 05 0764
MH: 05 0765MH: 05 0764downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:20AM0 ft. MWL - Water Level, 10 %of cross sectional area8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT10.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT14.6 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT18.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT18.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - MODERATE22.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SLIGHT22.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE22.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT26.5 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SLIFGT26.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT30.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT &CHIP34.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT35.1 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H38.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT39.1 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H42.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT46.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT46.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SLIGHT50.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT54.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT54.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H55.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H58.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT62.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT66.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT67.4 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT70.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT75.1 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SLIGHT75.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT78.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT86.8 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SLIGHT91.2 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT95.2 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT98.5 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT98.5 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SLIGHT103.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT106.9 ft. FC - Fracture Circumferential, from 07 to 12 o'clock, within 8 inches of joint: YES - MODRATE107 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT114.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT115.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H118.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT119.4 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H122.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT122.9 ft. FC - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES - MODERATE128.1 ft. AMH - Downstream Manhole, Survey Ends - 6:00AM

Observation photos (6)

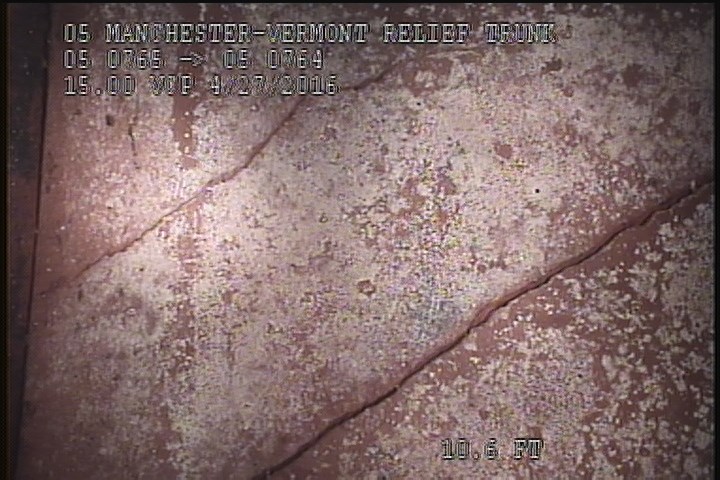

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    10.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

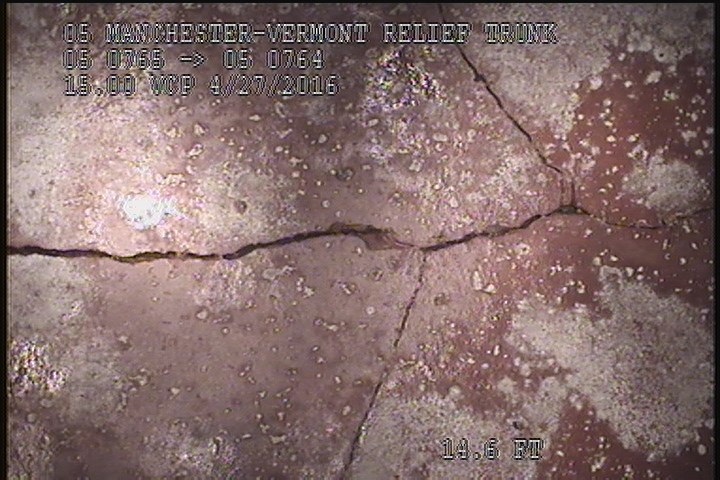

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT

    14.6 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT

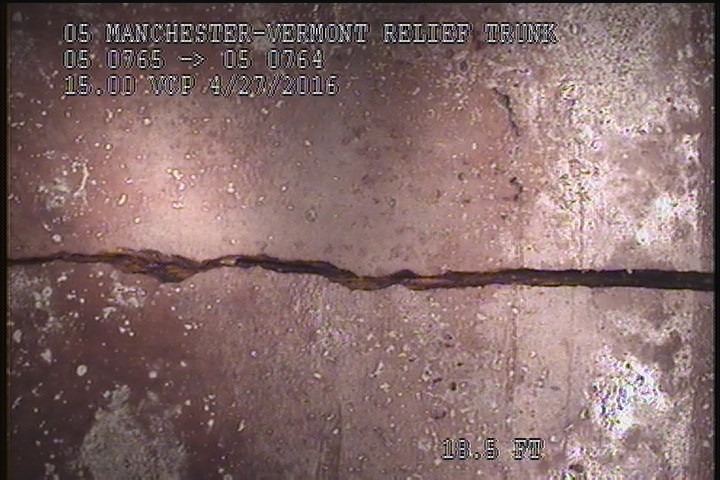

  • Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - MODERATE

    18.5 ft. - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - MODERATE

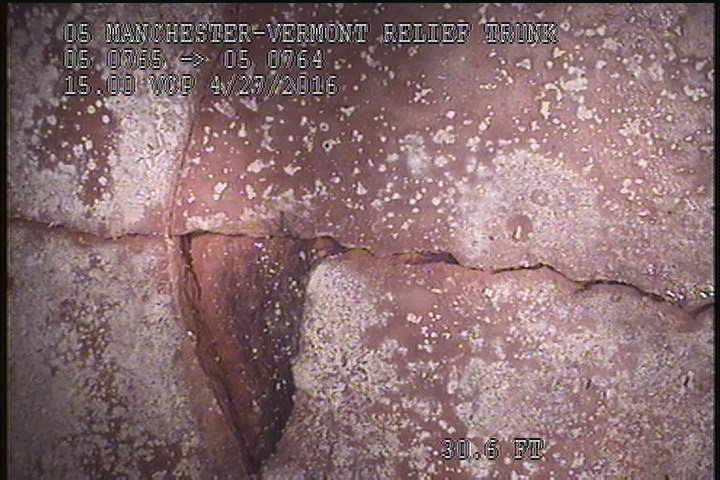

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT &CHIP

    30.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT &CHIP

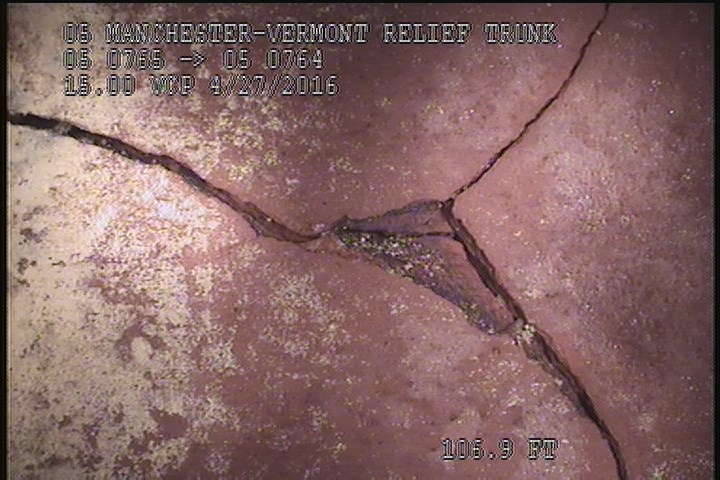

  • Fracture Circumferential, from 07 to 12 o'clock, within 8 inches of joint: YES - MODRATE

    106.9 ft. - Fracture Circumferential, from 07 to 12 o'clock, within 8 inches of joint: YES - MODRATE

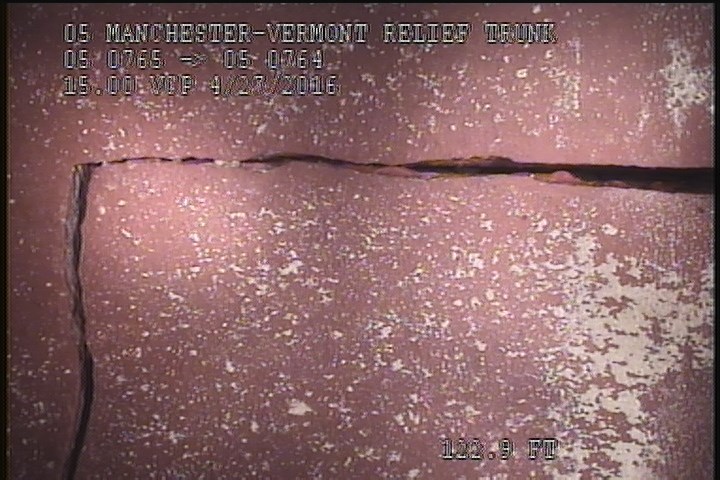

  • Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES - MODERATE

    122.9 ft. - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES - MODERATE

All inspections of P05992Work order 0563852

Observations (48)

DistanceCodeObservation
14.6FMSLIGHT
122.9FCSLIGHT
58.9FLSLIGHT
22.8FLSLIGHT
42.7FCSLIGHT
18.5FCSLIGHT
22.8FCHAIRLINE
54.7FLSLIGHT
122.9FCMODERATE
75.1FCSLIGHT
39.1FCH
26.5FCSLIFGT
98.5FCSLIGHT
26.5FCSLIGHT
67.4FCSLIGHT
10.5FMSLIGHT
30.6FMSLIGHT &CHIP
0MWM—
86.8FCSLIGHT
0AMH5:20AM
91.2FCSLIGHT
34.9FLSLIGHT
75.1FLSLIGHT
103.1FLSLIGHT
106.9FCMODRATE
35.1FCH
66.8FLSLIGHT
95.2FCSLIGHT
118.8FLSLIGHT
54.7FCH
70.6FLSLIGHT
55.7FCH
46.7FCSLIGHT
38.8FLSLIGHT
0MWL—
119.4FCH
115.7FCH
114.9FLSLIGHT
50.7FLSLIGHT
98.5FCSLIGHT
22.8FCSLIGHT
8FCSLIGHT
18.5FCMODERATE
128.1AMH6:00AM
62.6FCSLIGHT
107FCSLIGHT
78.8FCSLIGHT
46.7FLSLIGHT

Properties (6)

custom_field_three
MODERATE FRACTURES
custom_field_two
2
customer
LACSD
datetime
2016-04-27T05:07:37-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
